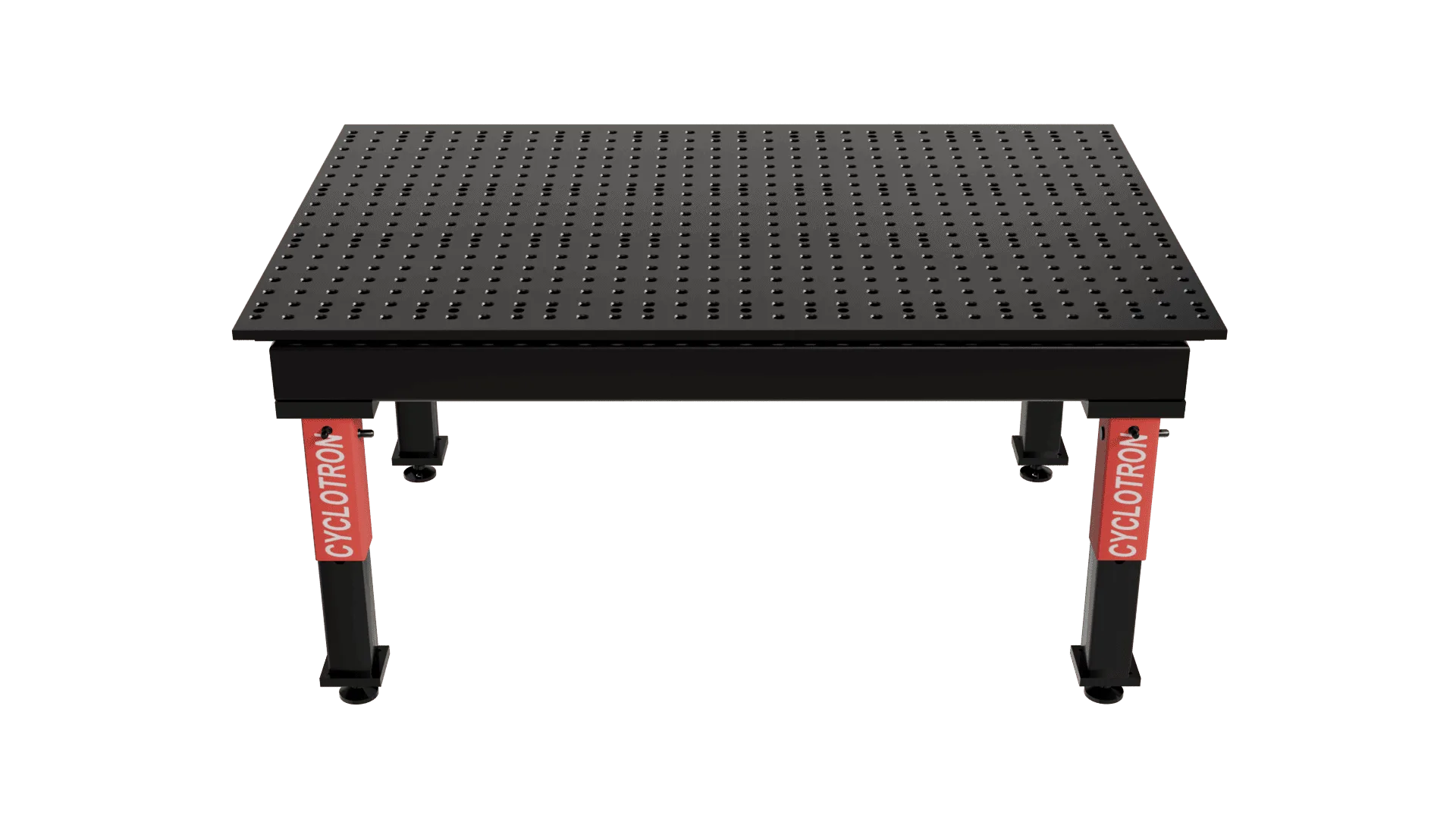

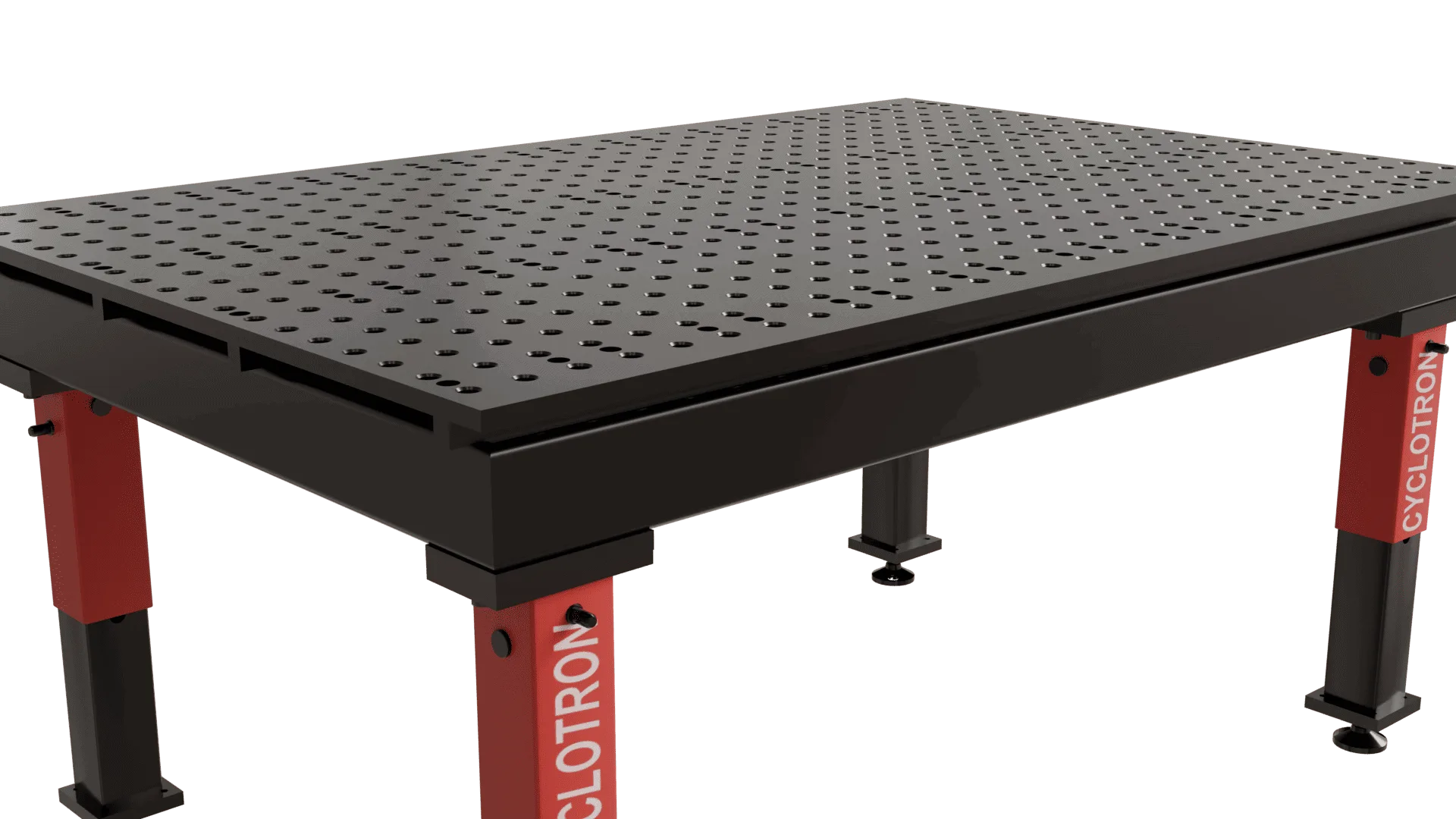

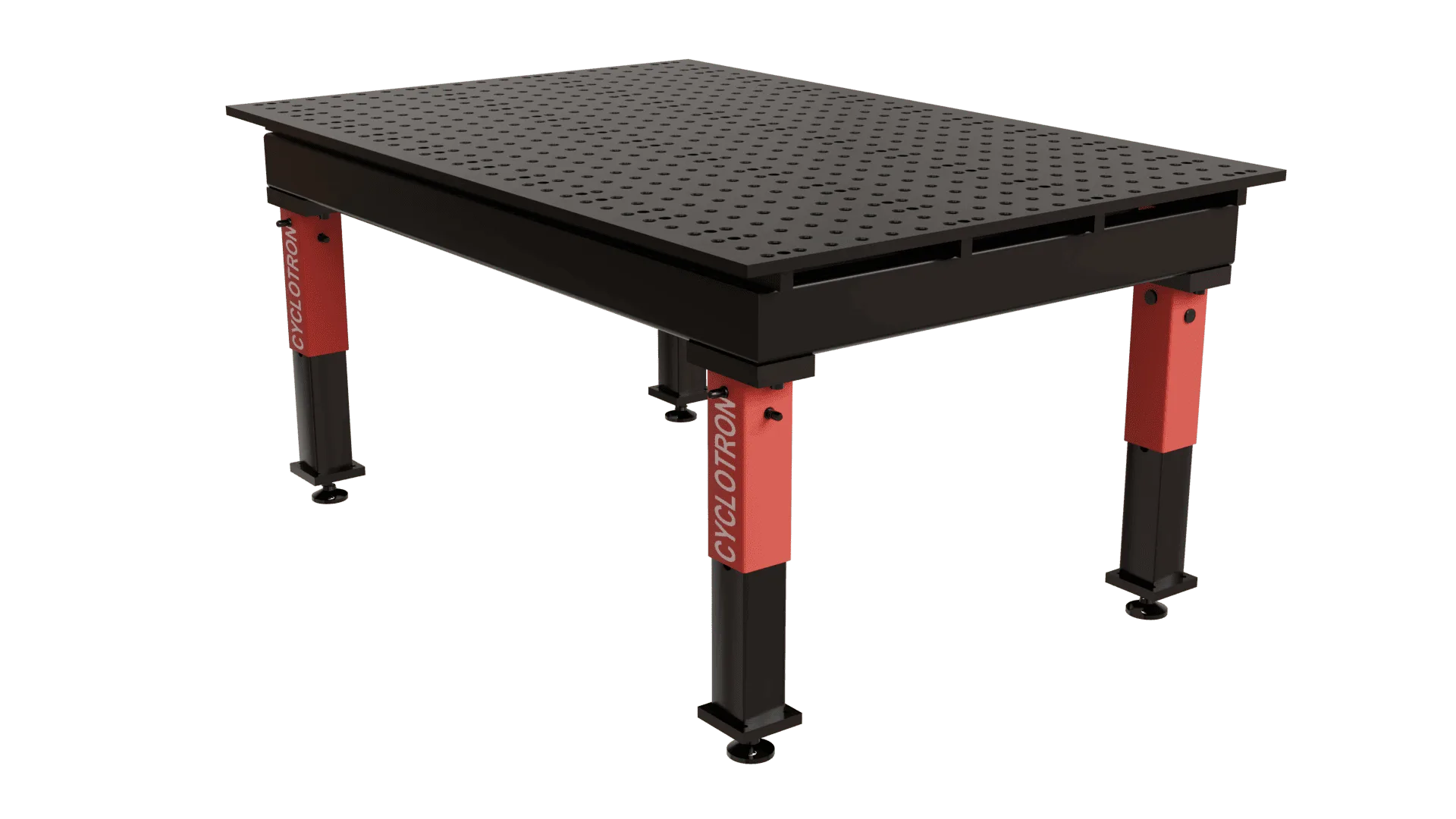

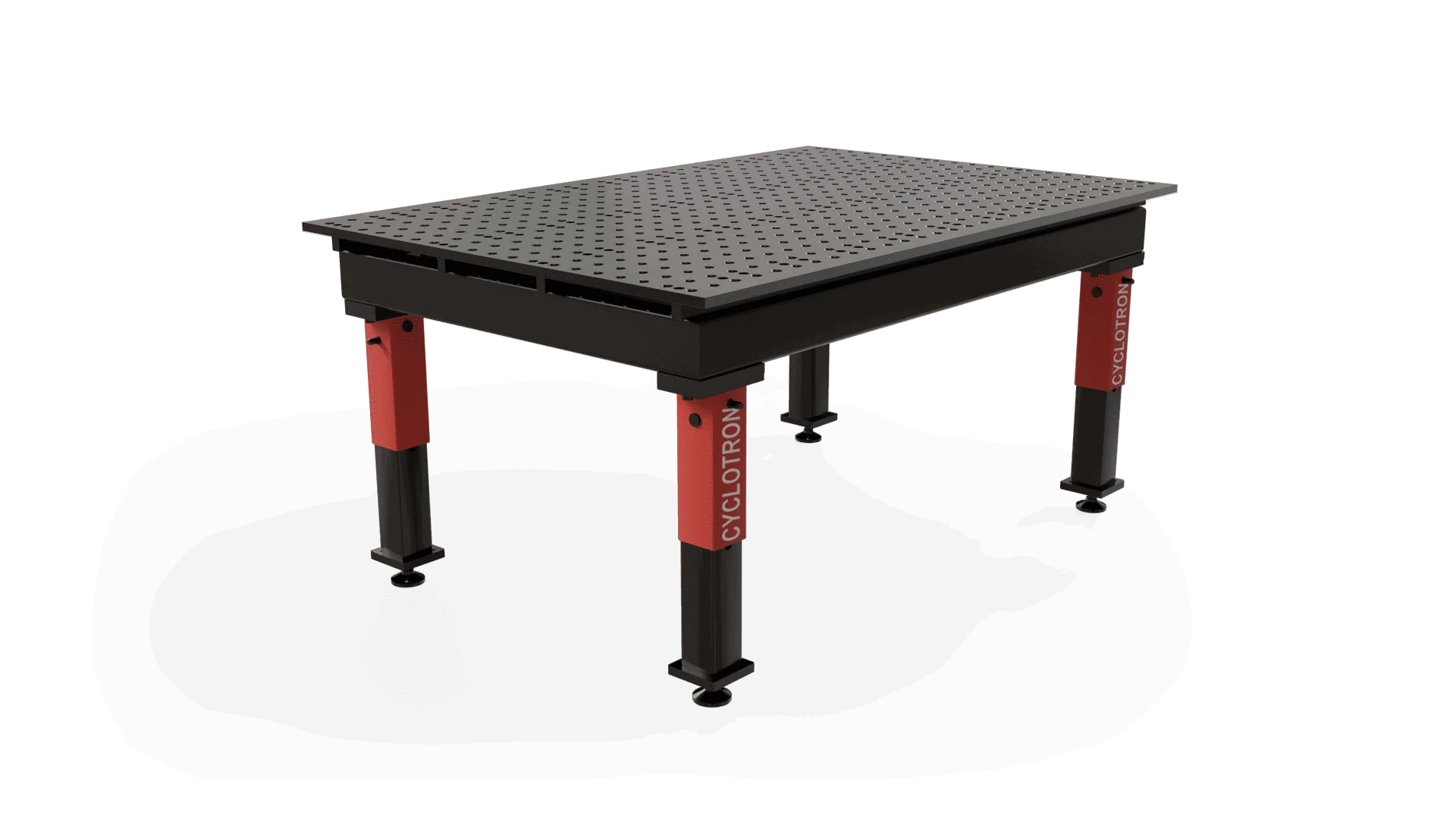

CYCLOTRON 2D WELDING Table

2D Welding table

Modular. Precision Engineered

2D Modular welding table can be connected and shape-changing in any manner according to the workpiece.
It has a top surface to be precision machined.

2D welding table specifications

Hole diameter– 16mm

Hole center distance– 50mm

Top Plate thickness– 16/12 mm

Flatness-0.4/1000 mm

Loading Capacity– 1 to 7 ton

Top Plate Material– Steel IS 2062

Frame Material– Steel IS 2062

Surface coating– Powder coated

Top Plate– Standard/ Nitrided

Table Height– 750-900 mm Adjustable

Why Choose the 2D welding tables?

One of the advantages of opting for a 2D welding table is the level of precision it offers. While traditional flat tables may be suitable, for projects intricate welding tasks require precision in every dimension. With a 2D welding table welders have a three workspace that allows them to position their workpieces with accuracy. This not enhances the quality of the welds. Also reduces the need for extensive rework.

Versatility to Suit Projects

Whether you’re working on a small scale project or tackling scale industrial applications 2D welding tables prove to be highly versatile. The adjustable fixtures and modular design of these tables can accommodate workpieces of sizes and shapes. This adaptability is crucial in todays diverse welding landscape, where professionals often face a range of projects.

Time and Cost Efficiency

In the welding industry time is money and investing in a 2D welding table significantly contributes to time efficiency. The precision provided by these tables minimizes the time spent on adjustments. Ensures that welding tasks are completed efficiently. Additionally by reducing rework requirements businesses can experience cost savings when utilizing 2D welding tables—making them an intelligent investment choice, for optimizing welding processes.

Improved Workflow Ergonomics

Apart from offering accuracy and versatility 2D welding tables also enhance ergonomics. Being able to rotate and tilt the workpieces makes the welding process easier ensuring that professionals can work in an safe manner. This ergonomic benefit not improves productivity. Also contributes to the overall well being of welding operators.

D16-2D Welding table Sizes

Size	Capacity (kgs)	Grid
600x600	400	50/100
600x1050	500	50/100
600x1200	600	50/100
600x1500	700	50/100
600x3000	800	50/100
800x1200	600	50/100
800x1950	800	50/100
1000x1000	600	50/100
1000x1200	650	50/100
1000x1500	900	50/100
1000x1950	1200	50/100
1000x3000	1800	50/100
1200x1200	700	50/100
1200x1500	1000	50/100
1200x1950	1500	50/100
1200x2550	2000	50/100
1200x3000	2200	50/100
1500x1500	1200	50/100
1500x3000	2500	50/100
2000x3000	2700	50/100
2000x4050	2900	50/100
2000x6000	3200	50/100
2500x2550	2000	50/100
2550x5100	4000	50/100
3000x3000	4500	50/100
3000x4050	5000	50/100
3000x6000	5300	50/100

D28-2D Welding table Sizes

Size	Capacity	Grid
600x600	800	100
600x1000	1000	100
600x1200	1200	100
600x2000	1200	100
800x1200	960	100
800x1600	1440	100
800x2000	1600	100
800x3000	2000	100
1000x1000	1000	100
1000x1600	1400	100
1000x2000	2000	100
1000x2400	2200	100
1000x3000	3000	100
1200x1200	1440	100
1200x2000	2200	100
1200x2400	2200	100
1200x3000	3000	100
1500x1600	1500	100
1500x2000	2000	100
1500x2400	2200	100
1500x3000	3000	100
2000x2000	4000	100
2000x3000	5000	100
2000x4000	6000	100
2000x6000	6200	100
2500x5000	6500	100
2500x6000	6800	100
3000x3000	7000	100
3000x5000	7500	100
3000x6000	8000	100

Cyclotron 2D Welding table

Worktop with D16 system bores in a 50 mm x 50 mm grid resulting in greater clamping options as compared to 100mm x 100mm grid.
The precision can reach microns for fixing and clamping.
Cyclotron gives nitrided surface improving surface properties of metal and corrosion resistance, and increase the fatigue strength.
Nitriding is a heat-treating process that diffuses nitrogen into the surface of a metal to create a case-hardened surface.
It is mainly used for clamping & locating steel structures and other assembling & fabrications according to our needs.
It is a widely used welding tool, which helps in modularity, standardization & reusability.
It replaced traditional dedicated fixtures with its high efficiency /affordability/precision/convenience
