Casting Welding table by Cyclotron
Cyclotron is the leading manufacturer of Cast iron welding table in India. We offer precise surface machined with 0.1mm/m flatness for casting table.

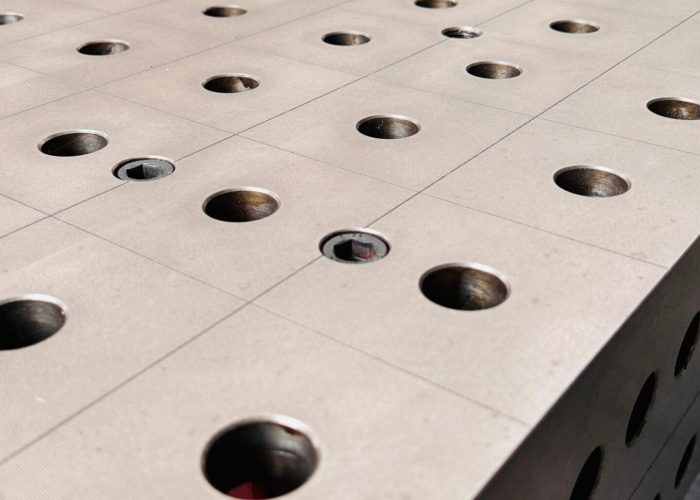

Cast Iron Weld table top
CYCLOTRON casting welding table is adaptable according to your needs of fabrication, also repeatability process is quite easy increasing your production quality and quantity thus increase in your business. Our Team of EXPERTS is working for YOU to improve your fabrication process of your pipe welding.
Casting Welding table specifications
Specification | Description |
Hole diameter | 28 mm |
Tolerance on flatness for a table | 0.1 mm/M |
Holes | Champered and milled holes |
Hole centre distance | 100 mm |
Top plate thickness | 25 mm |
Top surface | Milled table top edges |
Loading capacity | 1 ton per square metre |
Side Plate | 200 mm |
Casting Vs Modular Welding Tables
Characteristic | Casting welding table | Modular welding table |
Table top | Single table top surface | Made with multiple plates |
Flatness | 0.1 mm/M | 0.3 mm/M |
Durability | Highly durable | Moderately durable |
Quality | High Premium | Moderate |
Hole Diameter | 28 mm | 16/28 mm |
Thickness | 25 mm | 16/25 mm |
Capacity | 1 Ton per square metre | 700 kgs per square metre |
Grid Lines | Yes | No |
Application | Heavy duty applications | Light and medium duty |

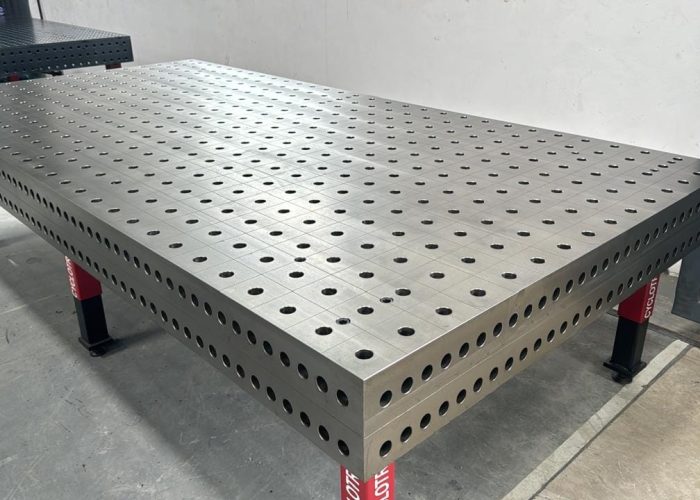

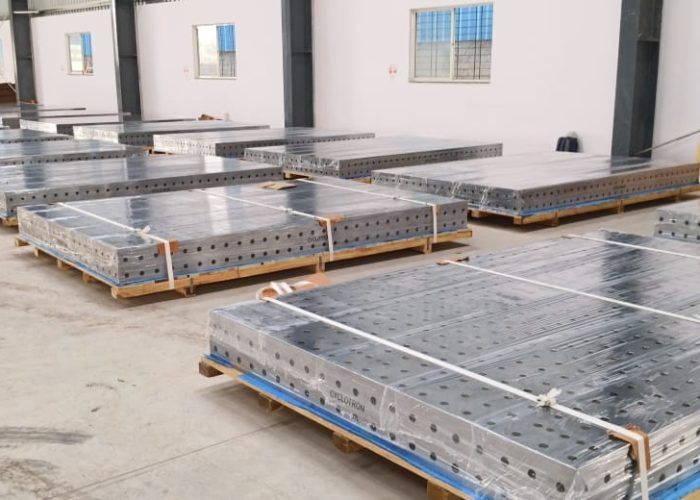

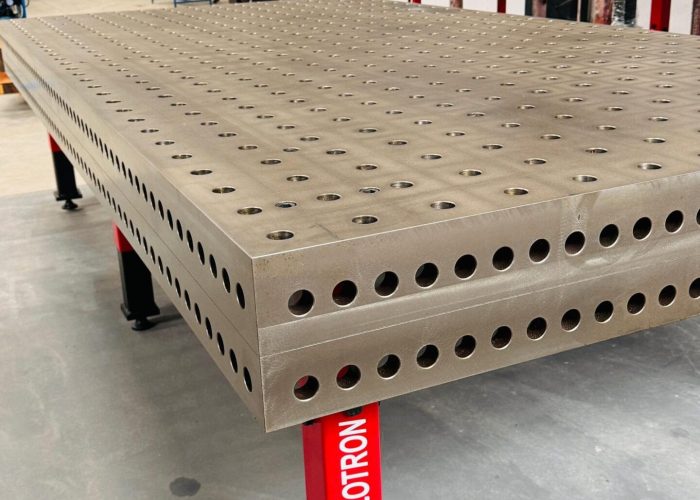

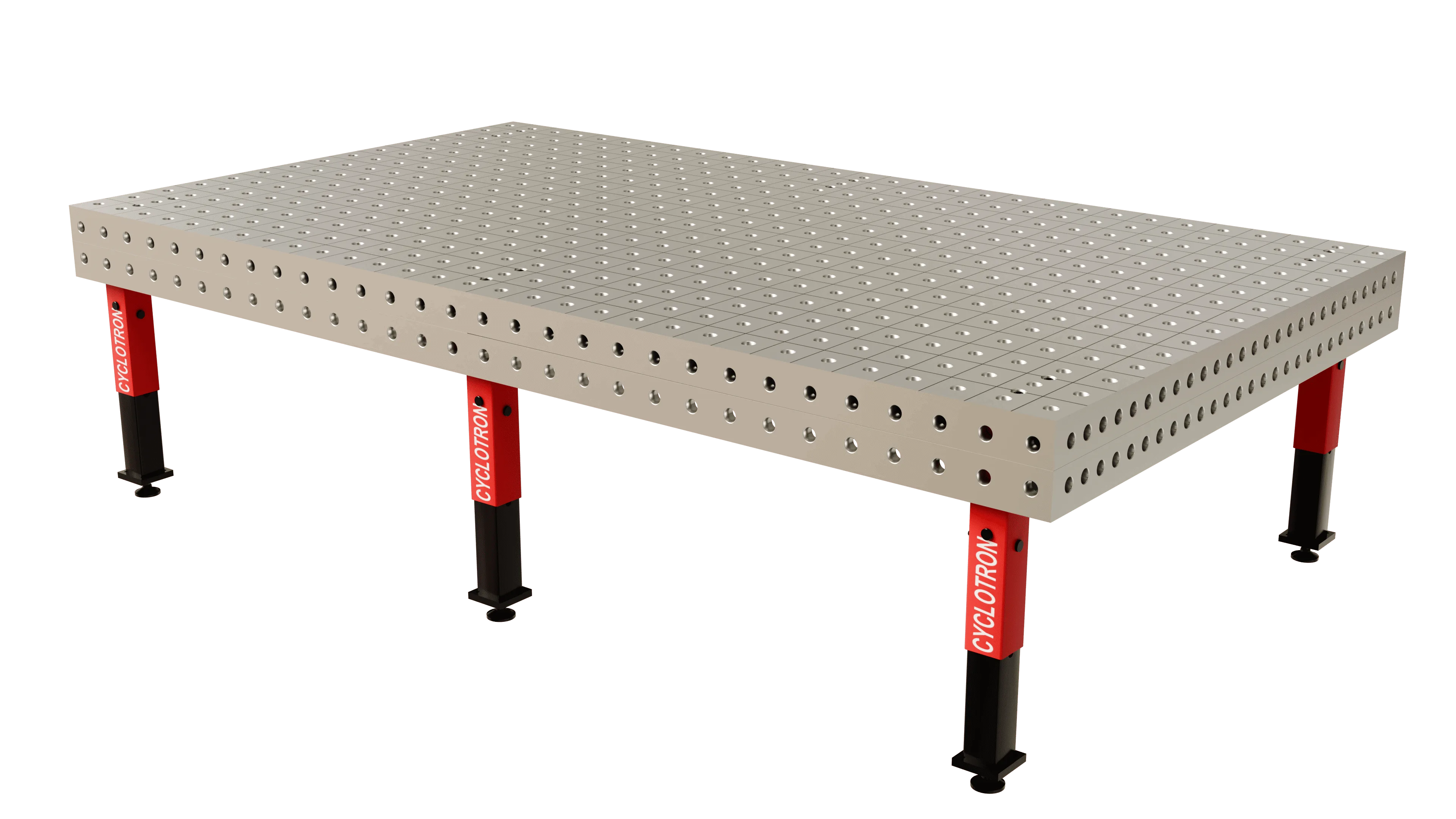

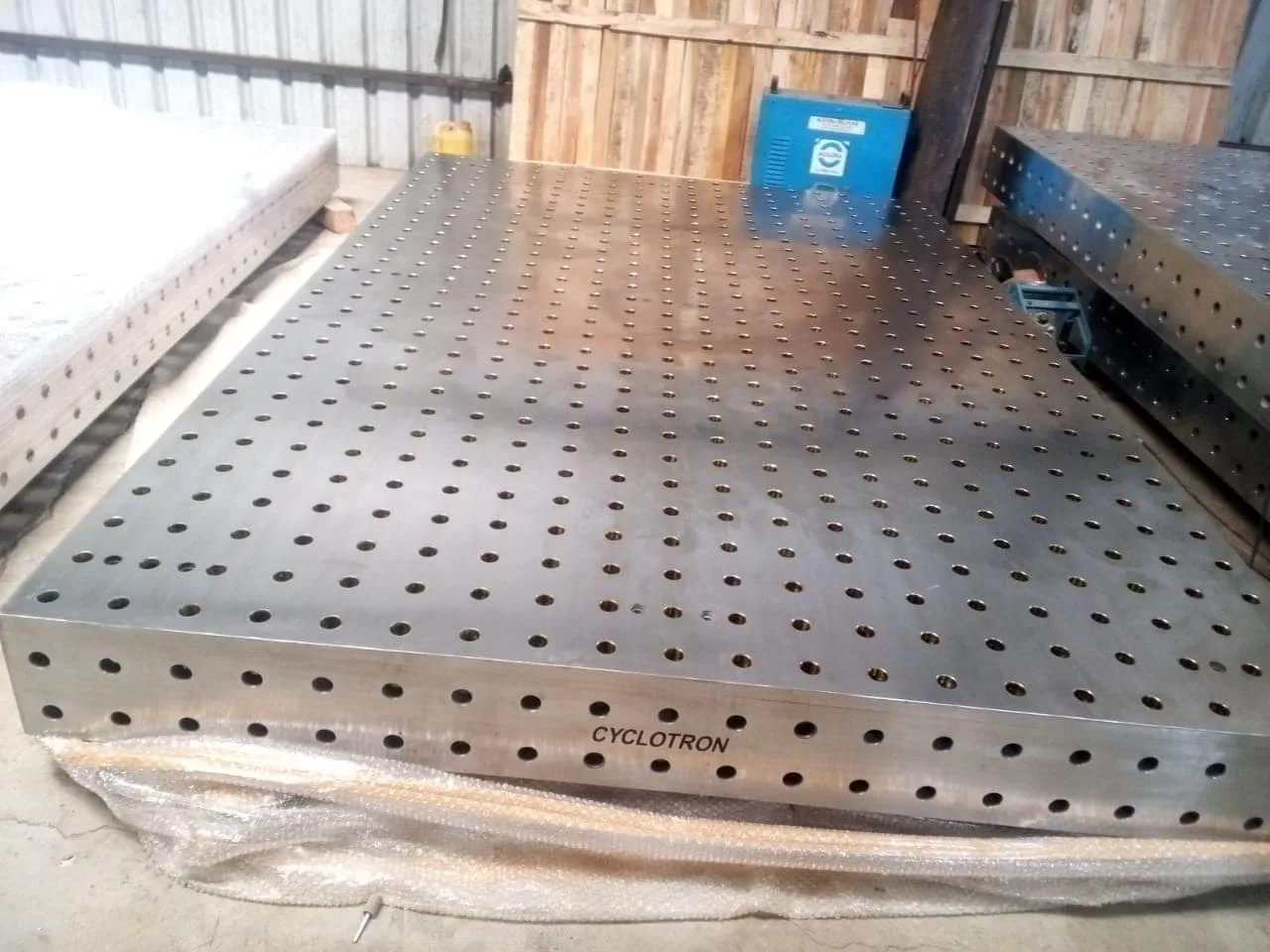

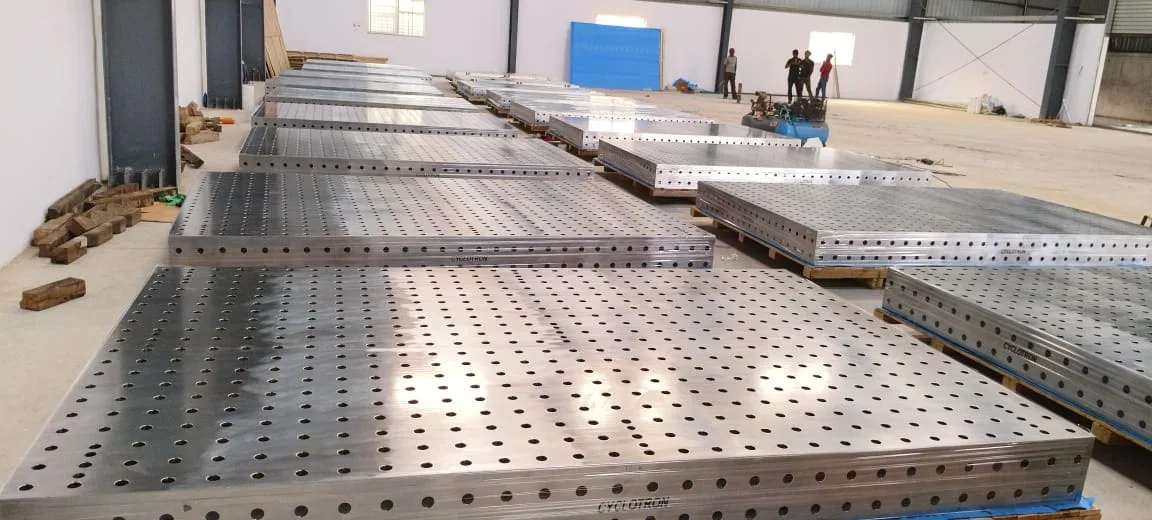

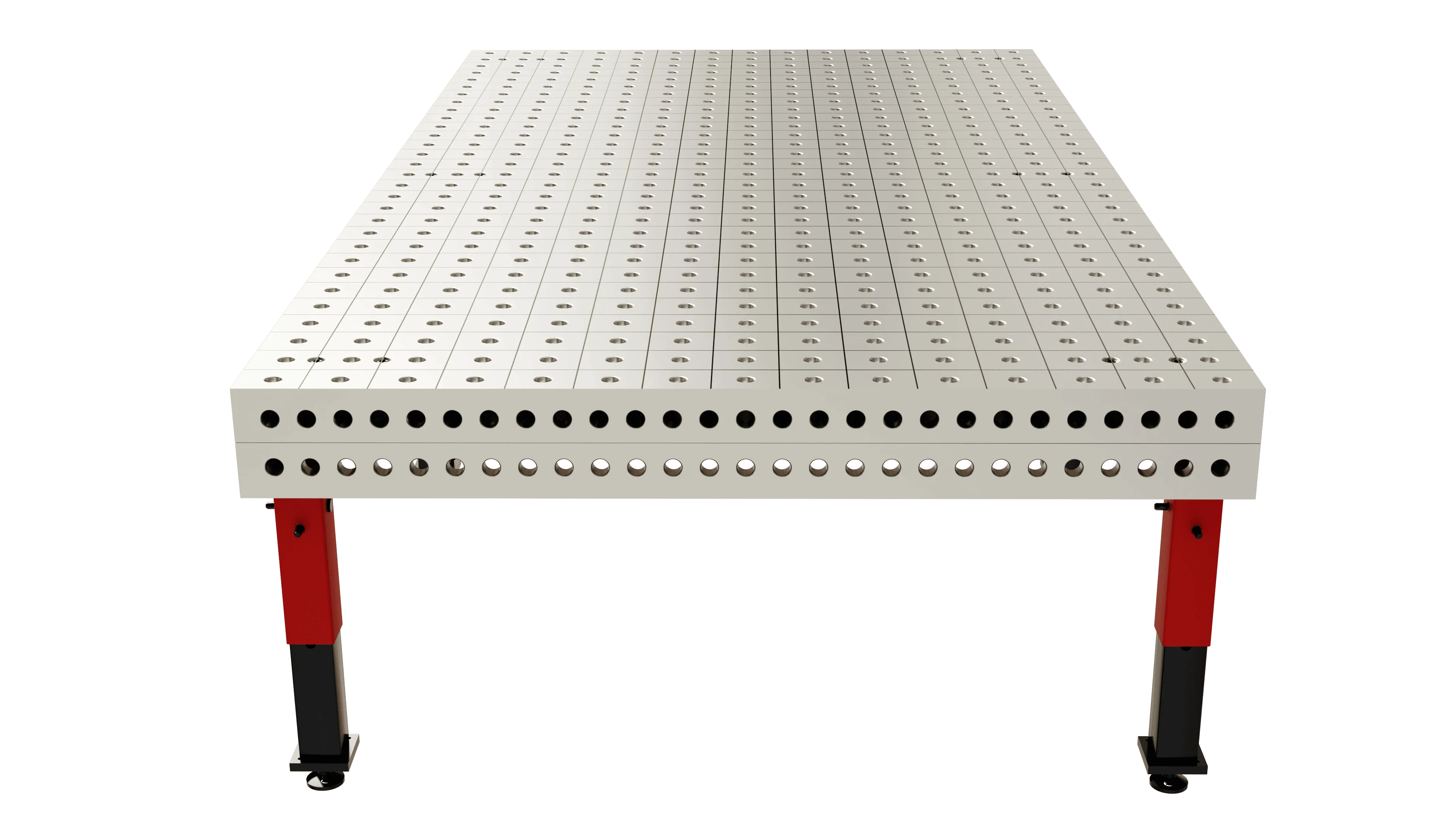

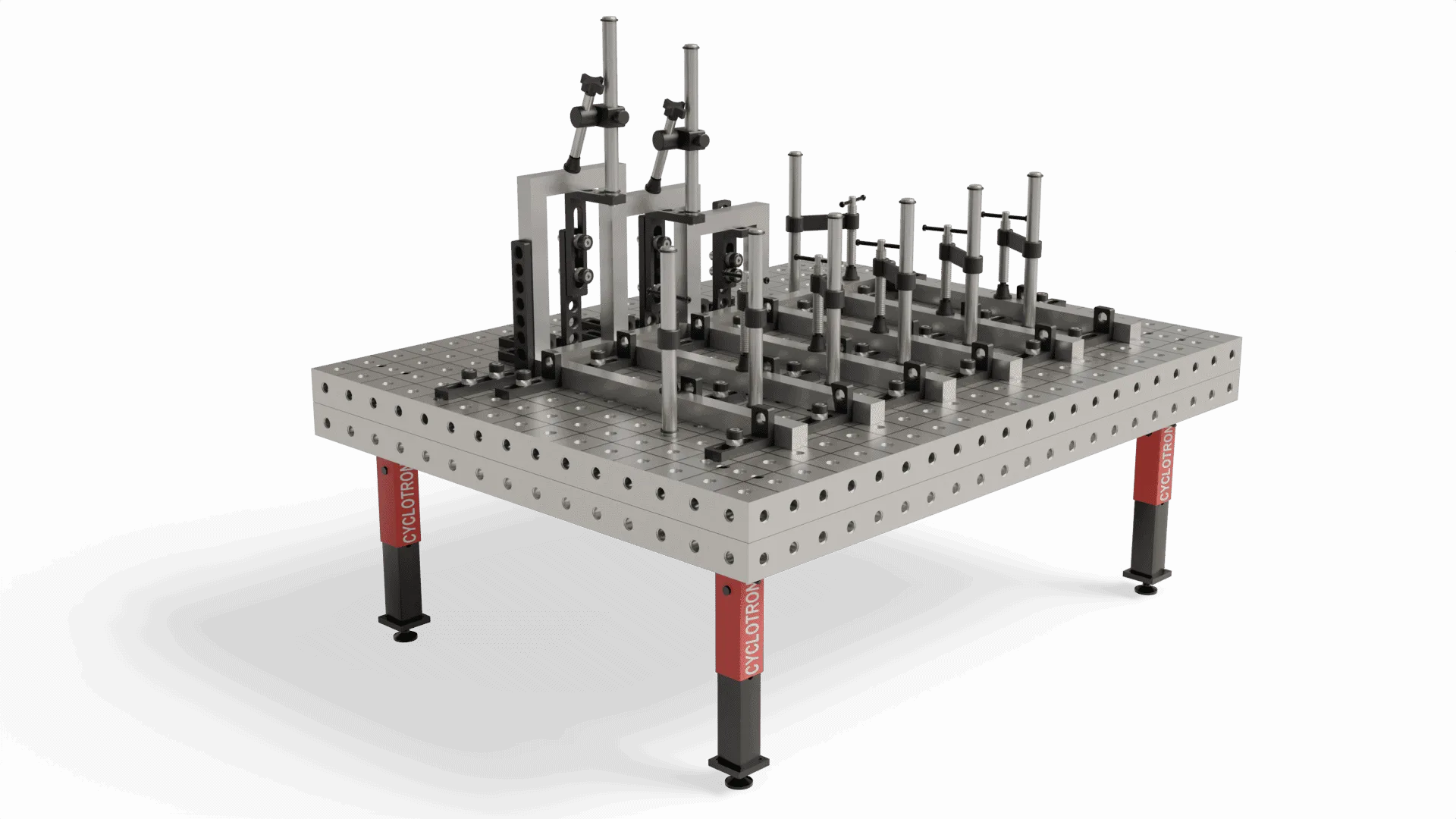

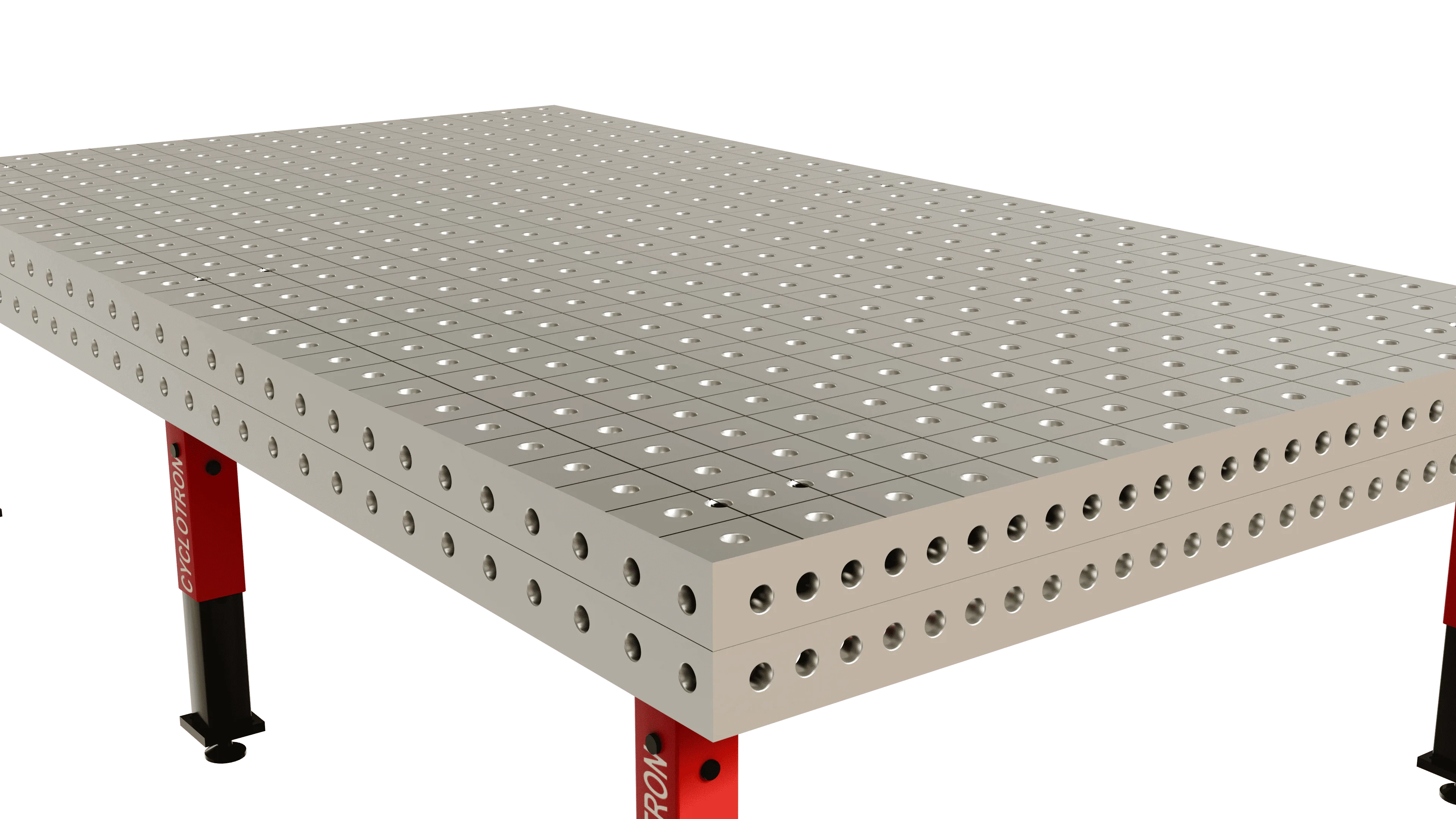

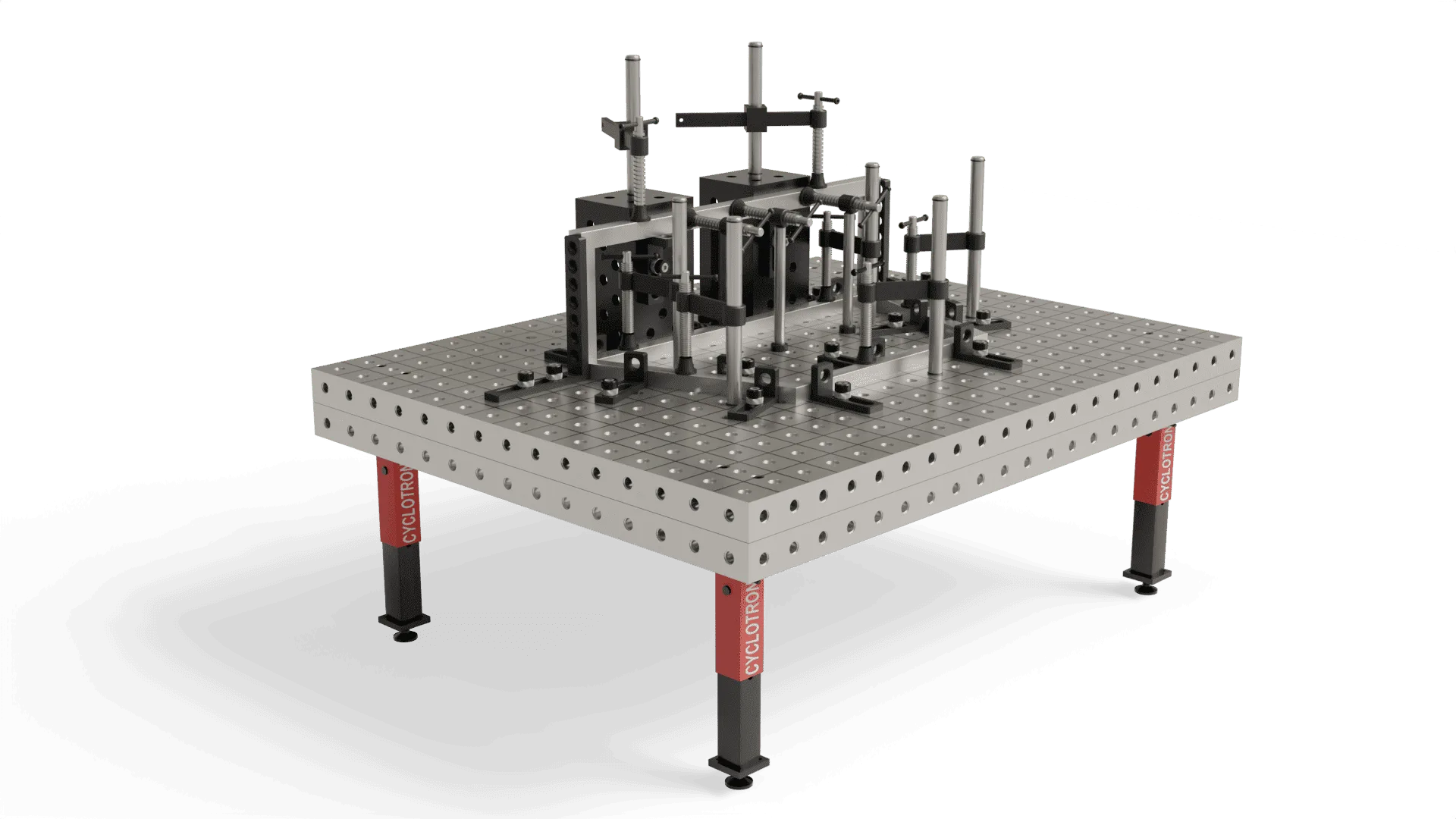

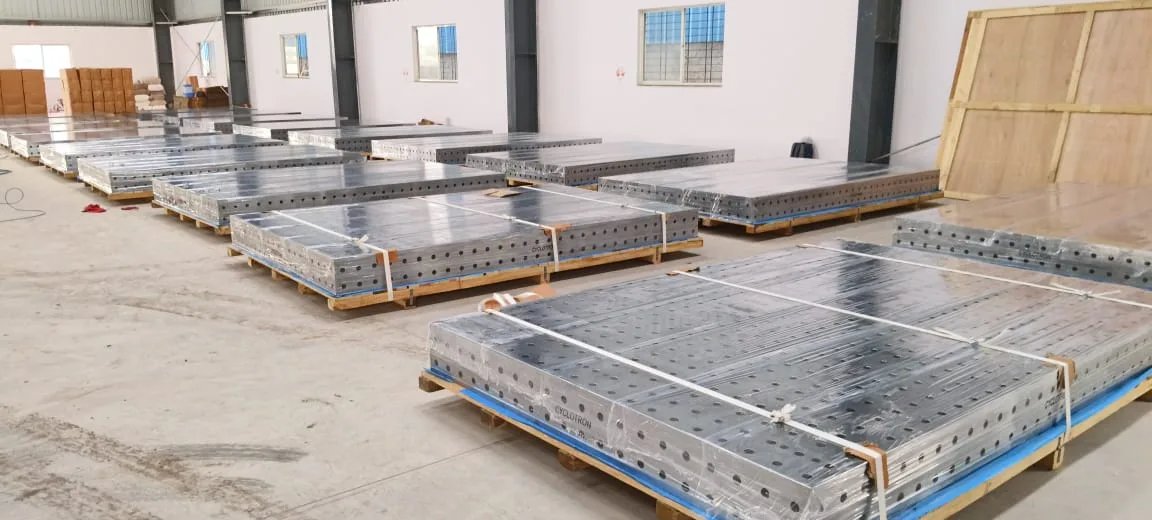

Casting Welding table images
Casting Welding table sizes
Sr No | SKU | Length (mm) | Width (mm) | Side Plate (mm) | Table Height (mm) |
1 | D28-3DC-6001000 | 1000 | 600 | 200 | 750-900 |
2 | D28-3DC-8001000 | 1000 | 800 | 200 | 750-900 |
3 | D28-3DC-8001200 | 1200 | 800 | 200 | 750-900 |
4 | D28-3DC-8001500 | 1500 | 800 | 200 | 750-900 |
5 | D28-3DC-8002000 | 2000 | 800 | 200 | 750-900 |
6 | D28-3DC-10001000 | 1000 | 1000 | 200 | 750-900 |
7 | D28-3DC-10001200 | 1200 | 1000 | 200 | 750-900 |
8 | D28-3DC-10001500 | 1500 | 1000 | 200 | 750-900 |
9 | D28-3DC-10002000 | 2000 | 1000 | 200 | 750-900 |
10 | D28-3DC-10002500 | 2500 | 1000 | 200 | 750-900 |
11 | D28-3DC-12001200 | 1200 | 1200 | 200 | 750-900 |
12 | D28-3DC-12001500 | 1500 | 1200 | 200 | 750-900 |
13 | D28-3DC-12002000 | 2000 | 1200 | 200 | 750-900 |
14 | D28-3DC-12002500 | 2500 | 1200 | 200 | 750-900 |
15 | D28-3DC-12003000 | 3000 | 1200 | 200 | 750-900 |
16 | D28-3DC-15001500 | 1500 | 1500 | 200 | 750-900 |
17 | D28-3DC-15002000 | 2000 | 1500 | 200 | 750-900 |
18 | D28-3DC-15002500 | 2500 | 1500 | 200 | 750-900 |
19 | D28-3DC-15003000 | 3000 | 1500 | 200 | 750-900 |

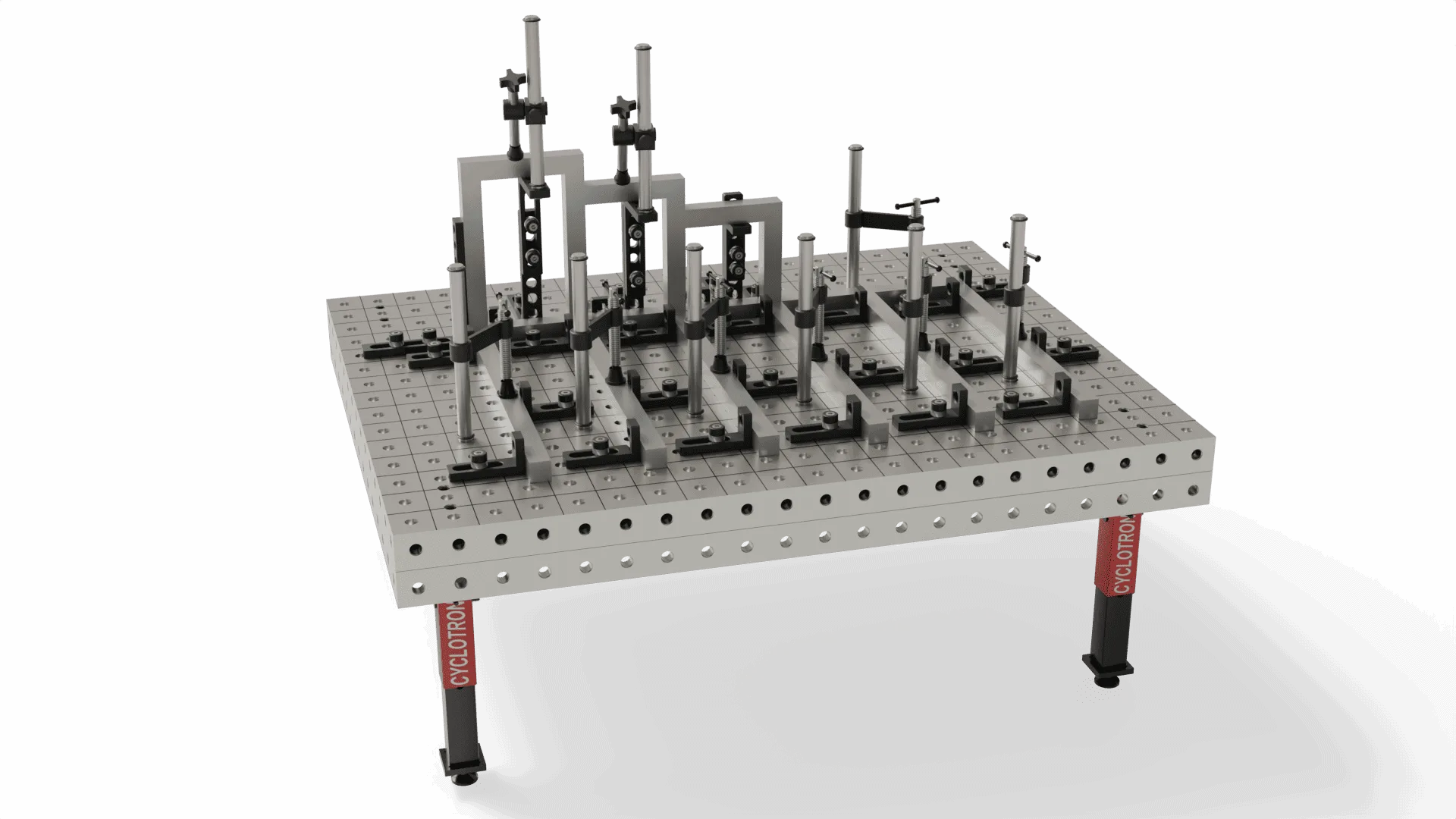

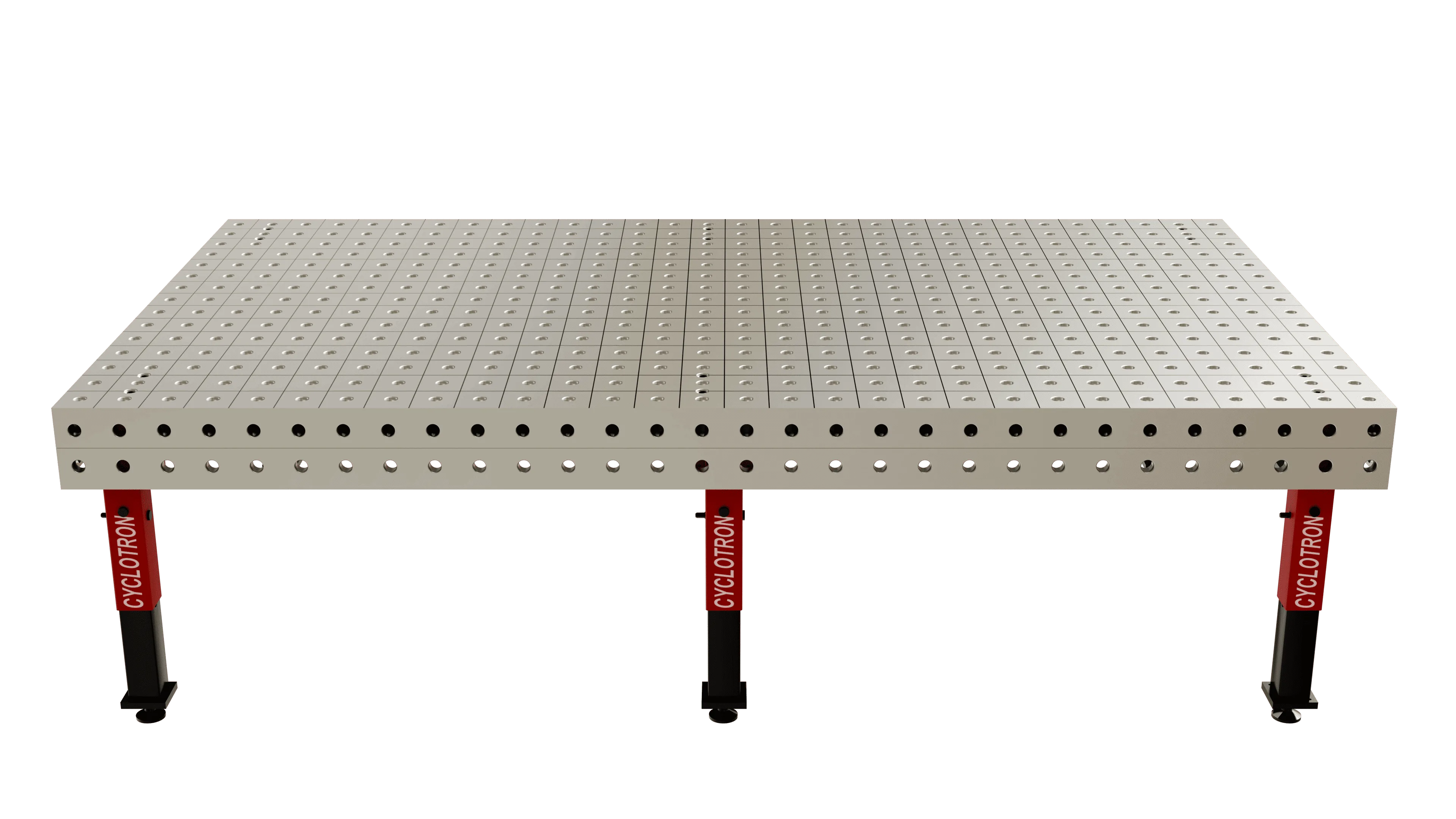

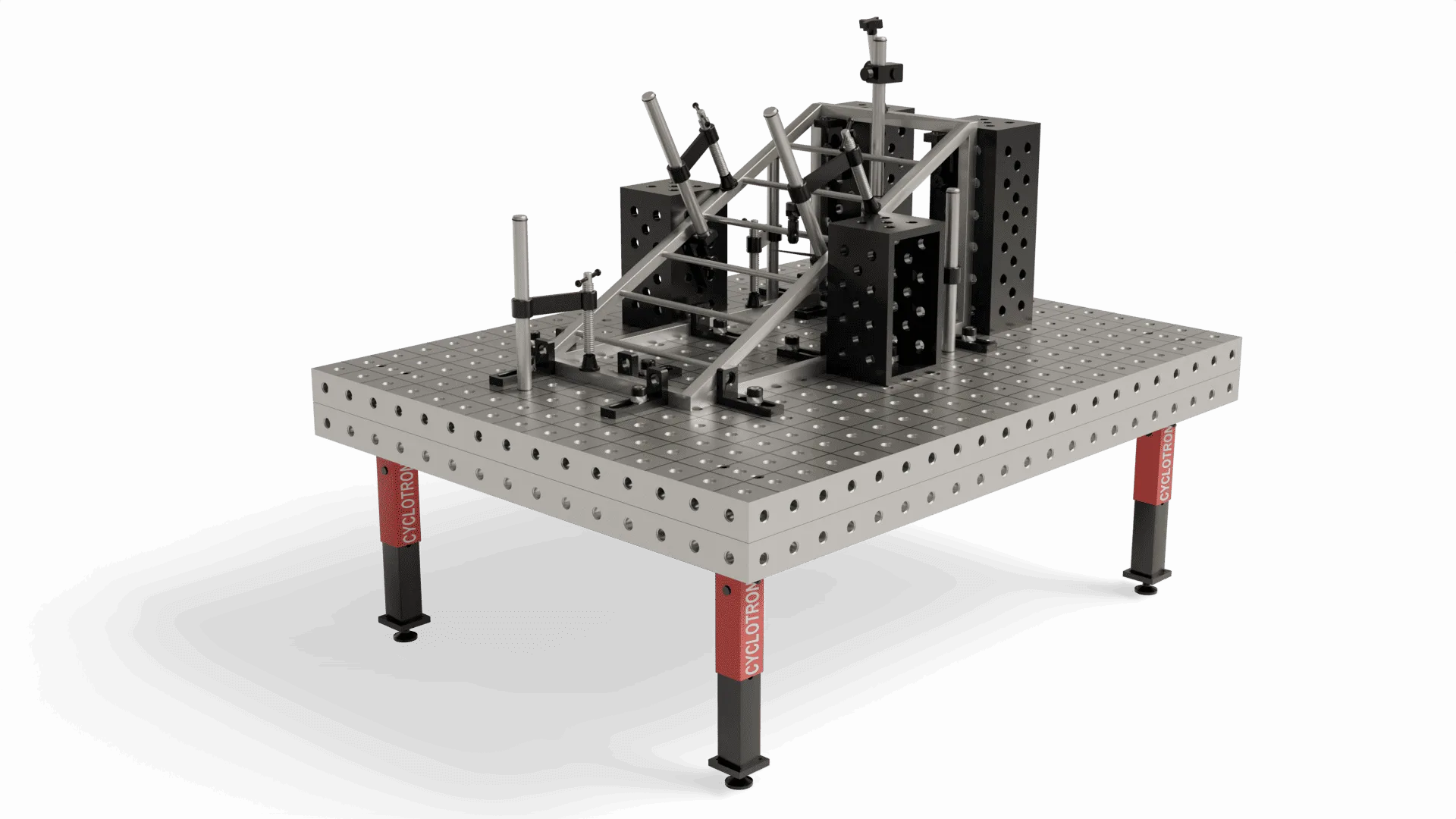

Cyclotron Casting Welding tables
Valuable customers
How to choose a Modular Welding table top?
- Size of the Table: If your welding projects have big and heavy metals involved it is better to go for larger tables. If your projects are smaller in dimensions but heavier (greater than 2 tons) in weight, it is better to go with 25mm thickness tables rather than smaller 16mm thick
- Hole center distance: The standard hole center distance of welding tables is 50mm. When your welding projects are larger in size it is better to go with a 100 mm distance in order to reduce the table cost.
-
Legs type:
In standard configuration, legs come with two options. With leveling pads or with Castor wheels
-
Type of Table:
Generally, the fixture table comes with 3D, 2D, and Rotary types.
3D welding table: Here YOU get 5 precision machined surfaces. These types of tables provide you with clamping options outside the table with help of side plates.
2D welding table: The top surface is precision machined. Smaller workpieces can go with these types of tables
Rotary welding table: Has rotating top surface. This type of table is used for welding projects where the welder can sit at one place, and the welding position can be brought to the welder for increased accuracy in welding.
Materials used in Modular welding table
-
Carbon steel:
It is the widely used material for making a welding table. Carbon steel is an alloy of iron and carbon. Next, the best option is a Stainless Steel welding table. It has chromium content which provides corrosion resistance to the table. - Cast iron mainly grey cast iron acts as an excellent surface for welding. Its high vibration damping capacity absorbs any vibration that occurred during the process and keeps the work stable.
- A welding table made of carbon steel does the work well. For welding of stainless steel jobs, an aluminum-copper alloy that is non-ferritic is suitable in making a welding table.
