PREMIUM WELDING TABLES

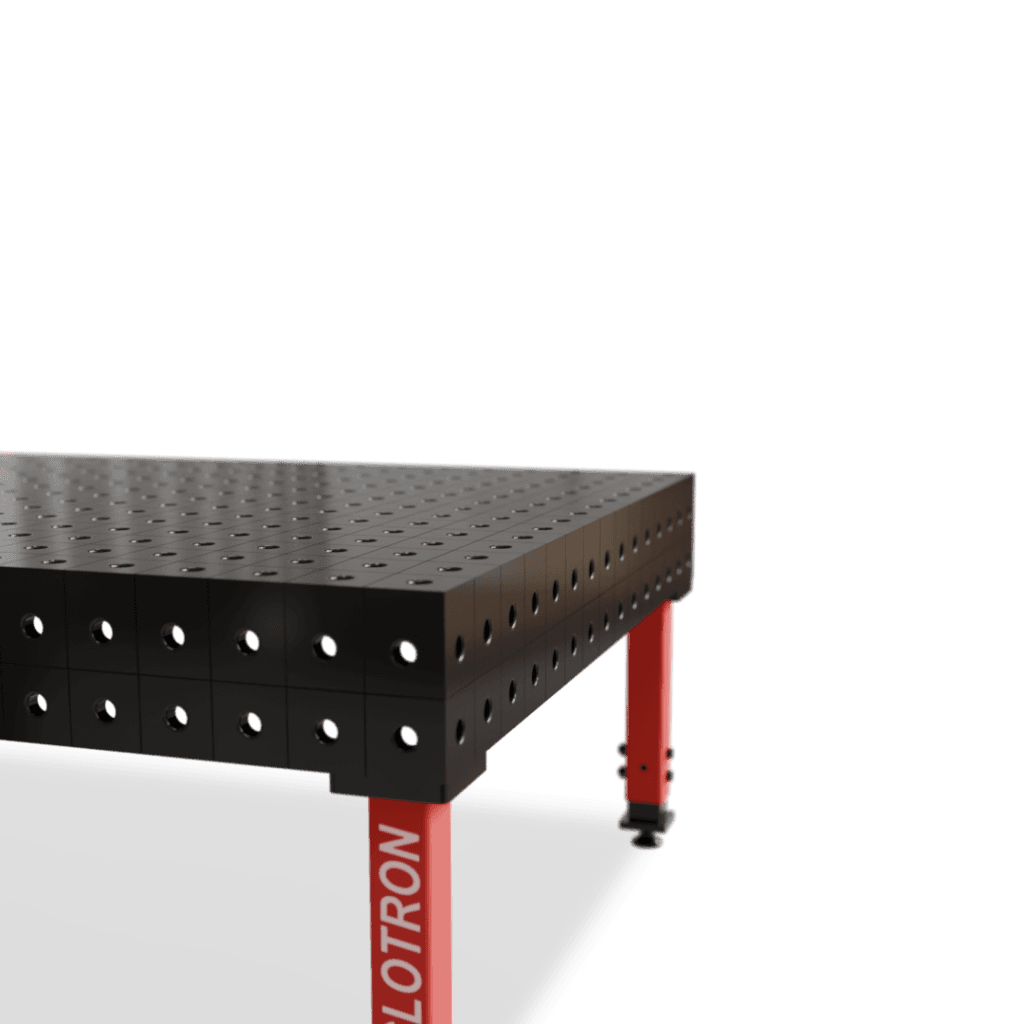

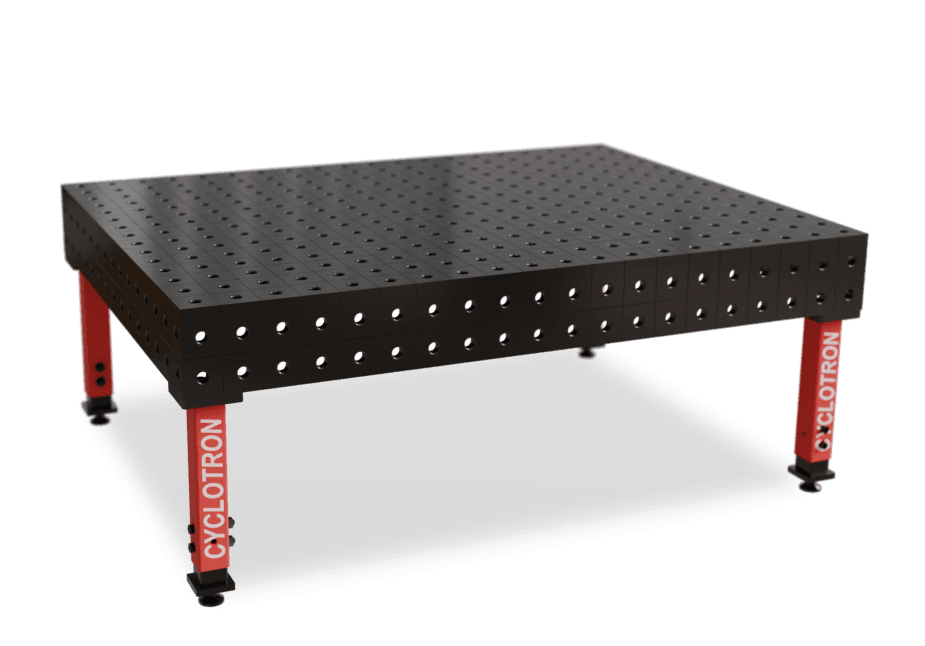

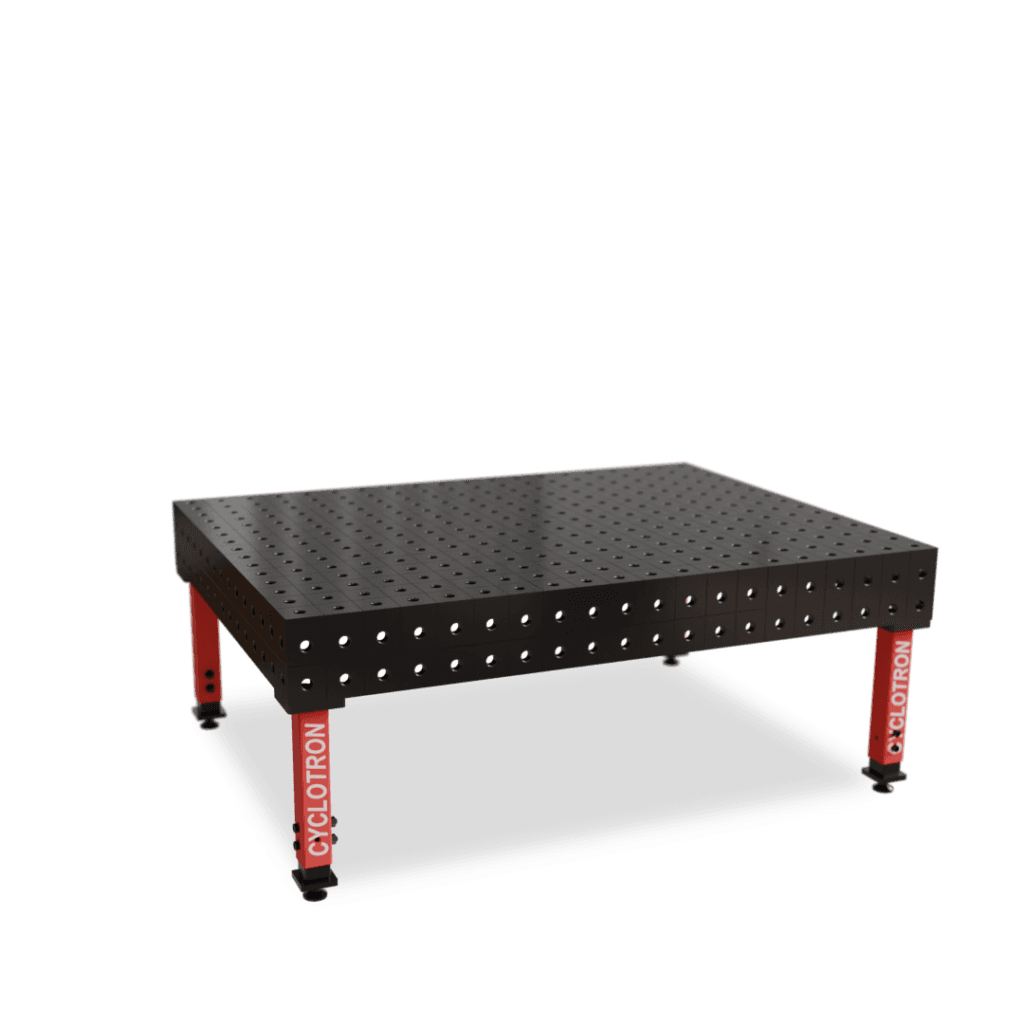

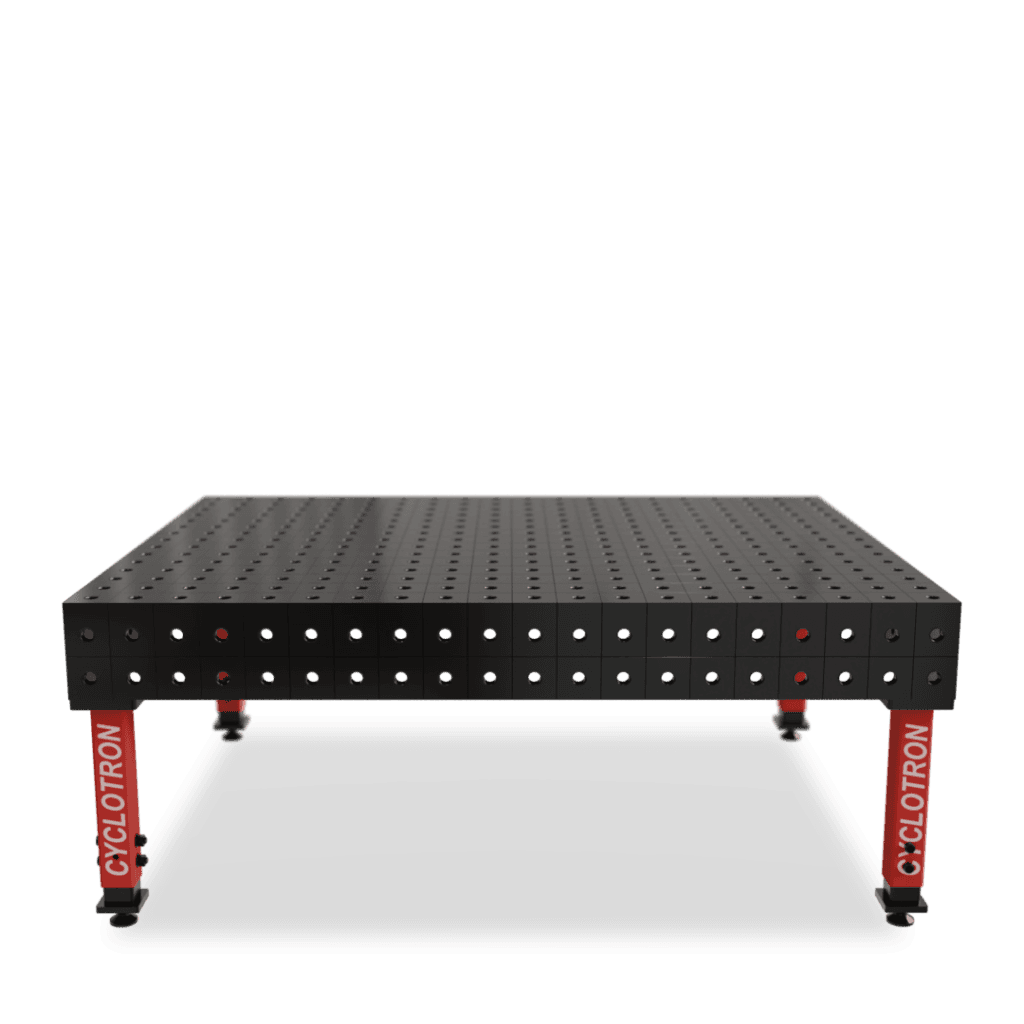

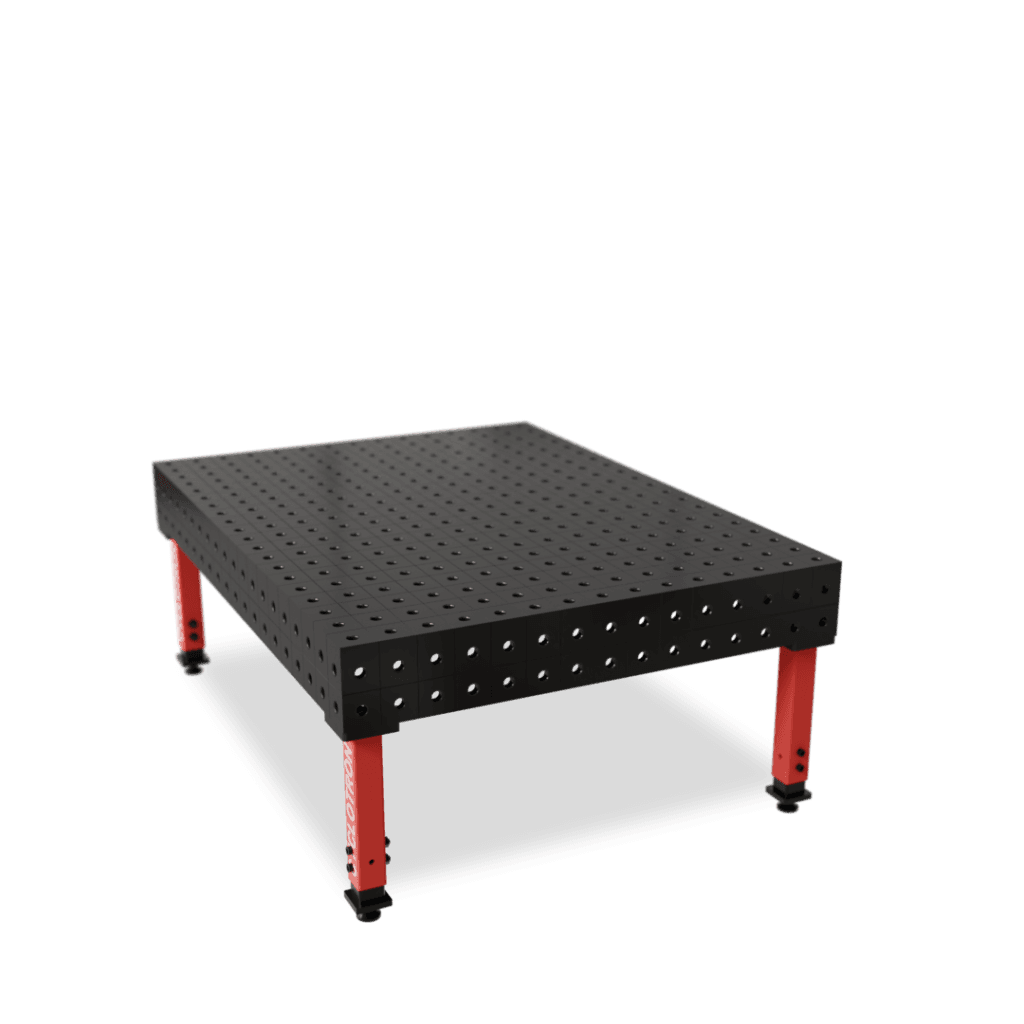

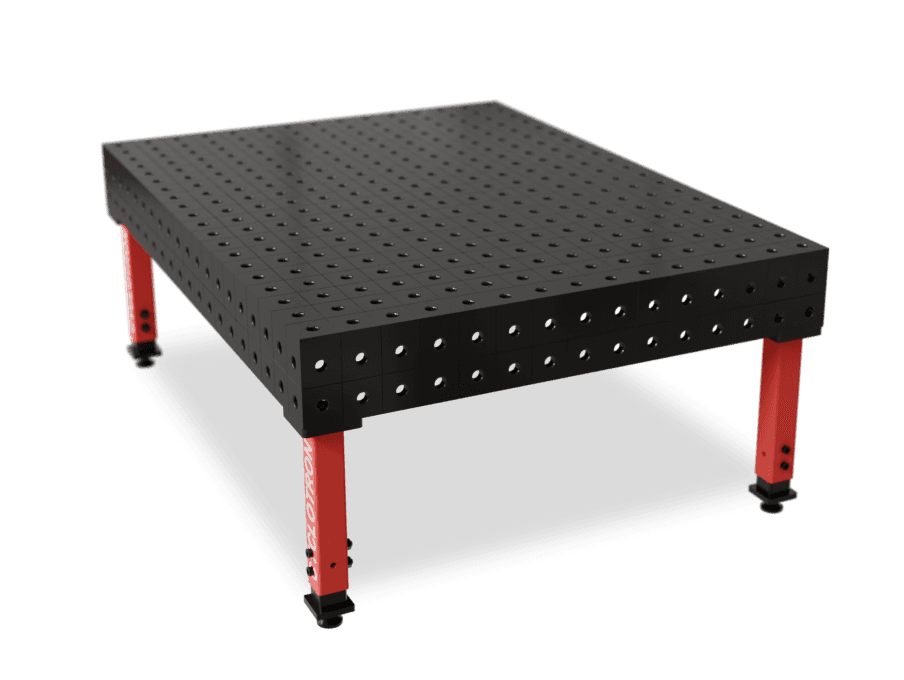

Cyclotron Premium Welding Tables

Built for Precision & Heavy-Duty Fabrication

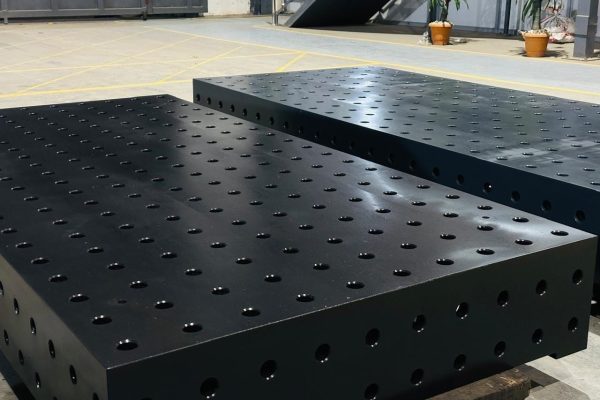

Cyclotron Premium Welding Tables are precision-engineered, single-piece constructions available up to 1500 × 3000 mm. Featuring a nitrided surface for superior durability and VMC machining for exceptional flatness and accuracy, they are built to deliver unmatched performance in demanding fabrication environments.

Why Choose our Premium welding tables

Single-Piece Construction (0.1 mm/m Flatness)
Single solid plate design with VMC machining ensures high precision and consistent flatness of 0.1 mm/m.
Anti-Spatter Nitrided Finish
Special nitriding prevents weld spatter adhesion, keeping the surface clean and maintenance-free.
Available in D16 / D28 System
Supports both D16 and D28 modular systems for versatile fixture and clamping setups.
Precision Grid Marking
Laser-marked grid enables quick alignment, accurate positioning, and faster setup times.

Time and Cost Efficiency

In the welding industry time is money and investing in a 3D welding table significantly contributes to time efficiency. The precision provided by these tables minimizes the time spent on adjustments. Ensures that welding tasks are completed efficiently. Additionally by reducing rework requirements businesses can experience cost savings when utilizing 3D welding tables—making them an intelligent investment choice, for optimizing welding processes.

Improved Workflow Ergonomics

Apart from offering accuracy and versatility 3D welding tables also enhance ergonomics.Being able to rotate and tilt the workpieces makes the welding process easier ensuring that professionals can work in an safe manner. This ergonomic benefit not improves productivity. Also contributes to the overall well being of welding operators.

D16-3D Premium Welding table Sizes

Size	Capacity	Side Plate	Grid
600x1200	600	150	50/100
800x1200	700	150	50/100
800x2000	800	150	50/100
1000x1000	600	150	50/100
1000x1200	650	150	50/100
1000x1500	900	150	50/100
1000x2000	1200	150	50/100
1000x3000	1800	150	50/100
1200x1200	700	150	50/100
1200x1500	1000	150	50/100
1200x2000	1500	150	50/100
1200x2400	2000	150	50/100
1200x3000	2200	150	50/100
1500x1500	1200	150	50/100
1500x3000	2500	150	50/100

D28-3D Welding table Sizes

Size	Capacity	Side Plate	Grid
600x1200	800	200	100
800x1200	900	200	100
800x2000	1000	200	100
1000x1000	700	200	100
1000x1200	800	200	100
1000x1500	1200	200	100
1000x2000	1500	200	100
1000x3000	2200	200	100
1200x1200	2000	200	100
1200x1500	2200	200	100
1200x2000	2400	200	100
1200x2400	2400	200	100
1200x3000	2700	200	100
1500x1500	1800	200	100
1500x3000	3500	200	100

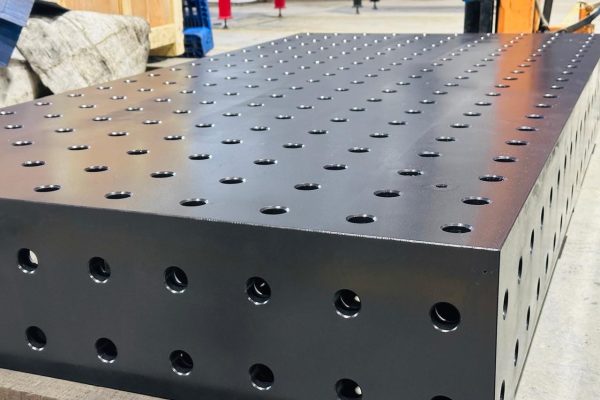

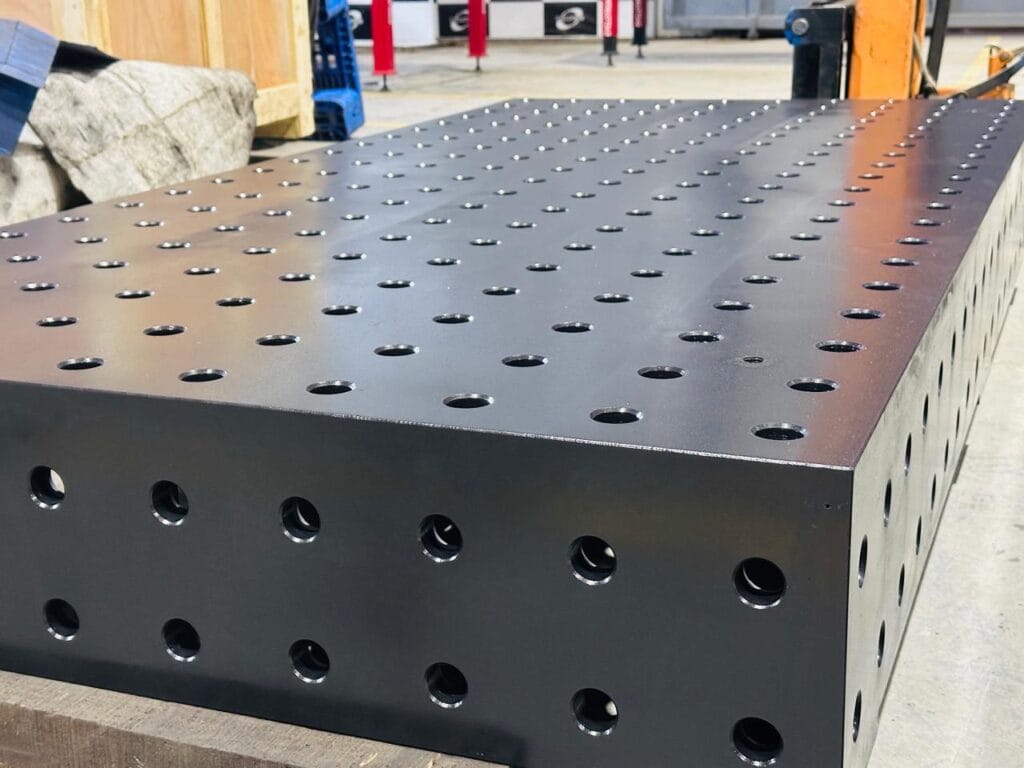

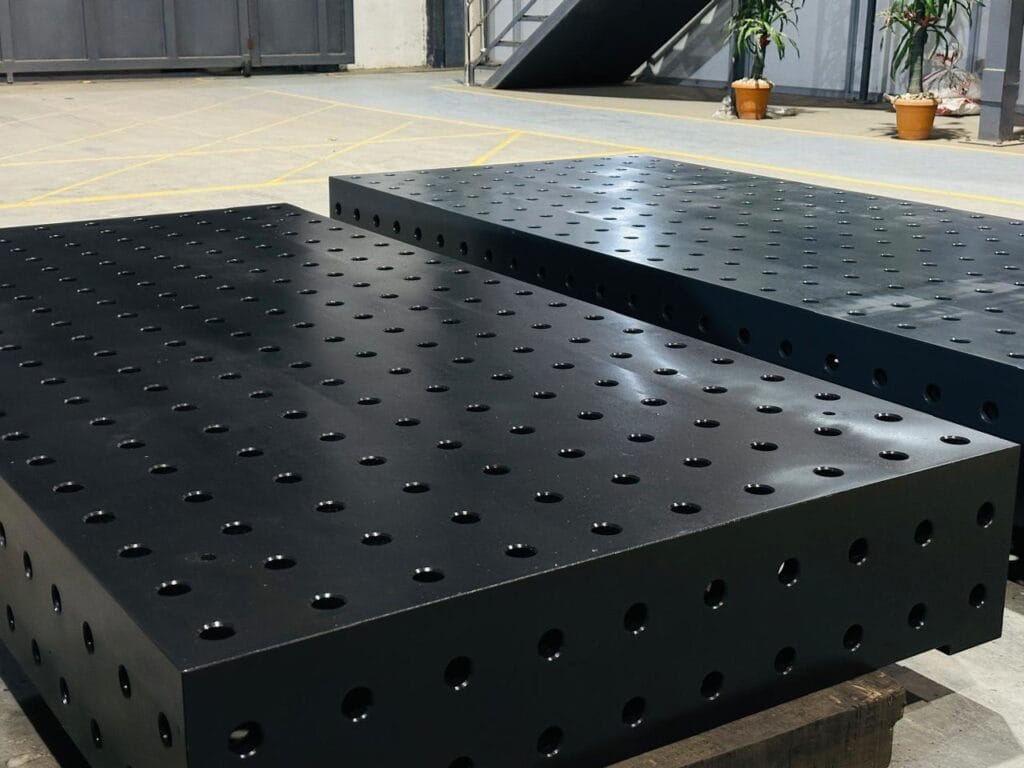

Cyclotron Premium Welding Table

Precision-engineered D16 grid with 50 × 50 mm hole pattern, delivering superior clamping flexibility compared to conventional 100 × 100 mm systems.
3D side panel drilling architecture enhances vertical and multi-plane fixturing capabilities for complex assemblies.
Micron-level positioning accuracy ensures repeatability and high-quality weld outcomes.
Advanced nitrided surface provides exceptional wear resistance, anti-spatter performance, and long-term corrosion protection.
Case-hardened through nitrogen diffusion, increasing surface strength and durability under intensive industrial use.

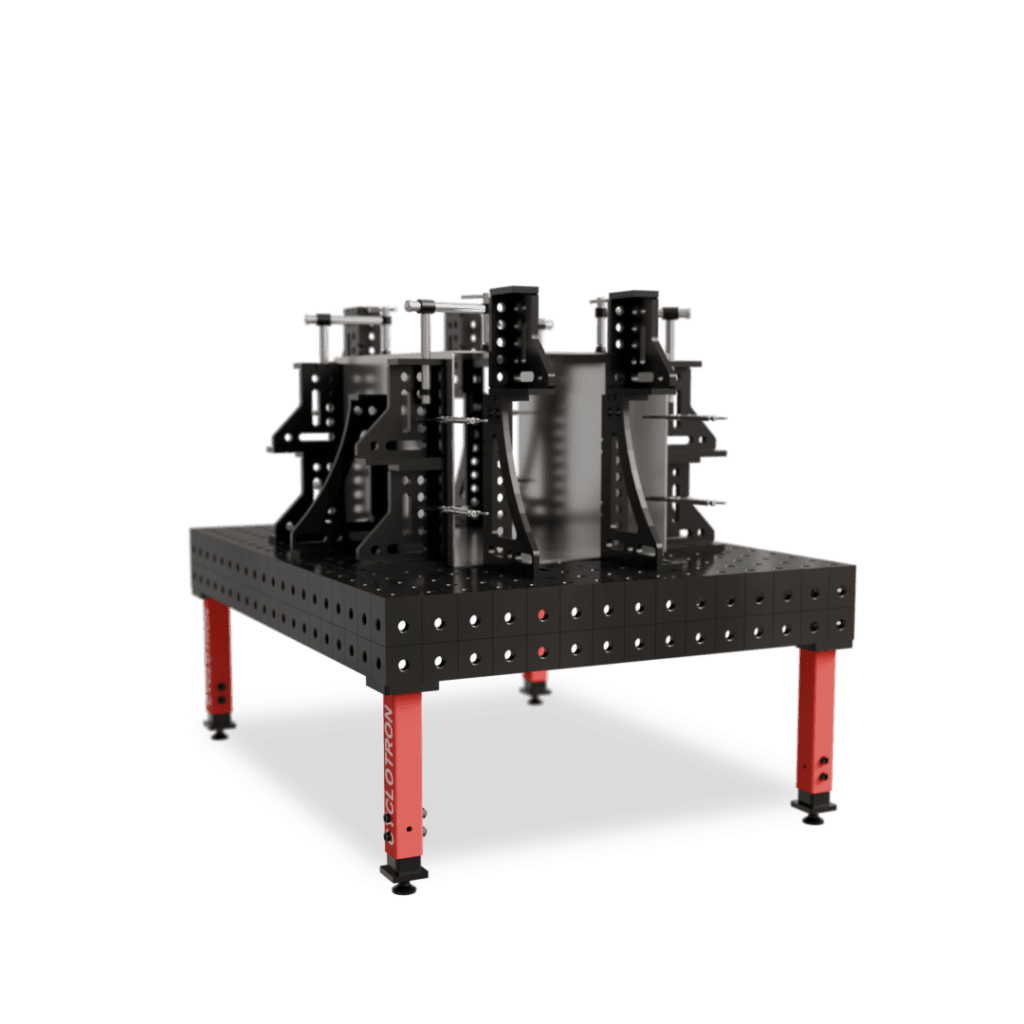

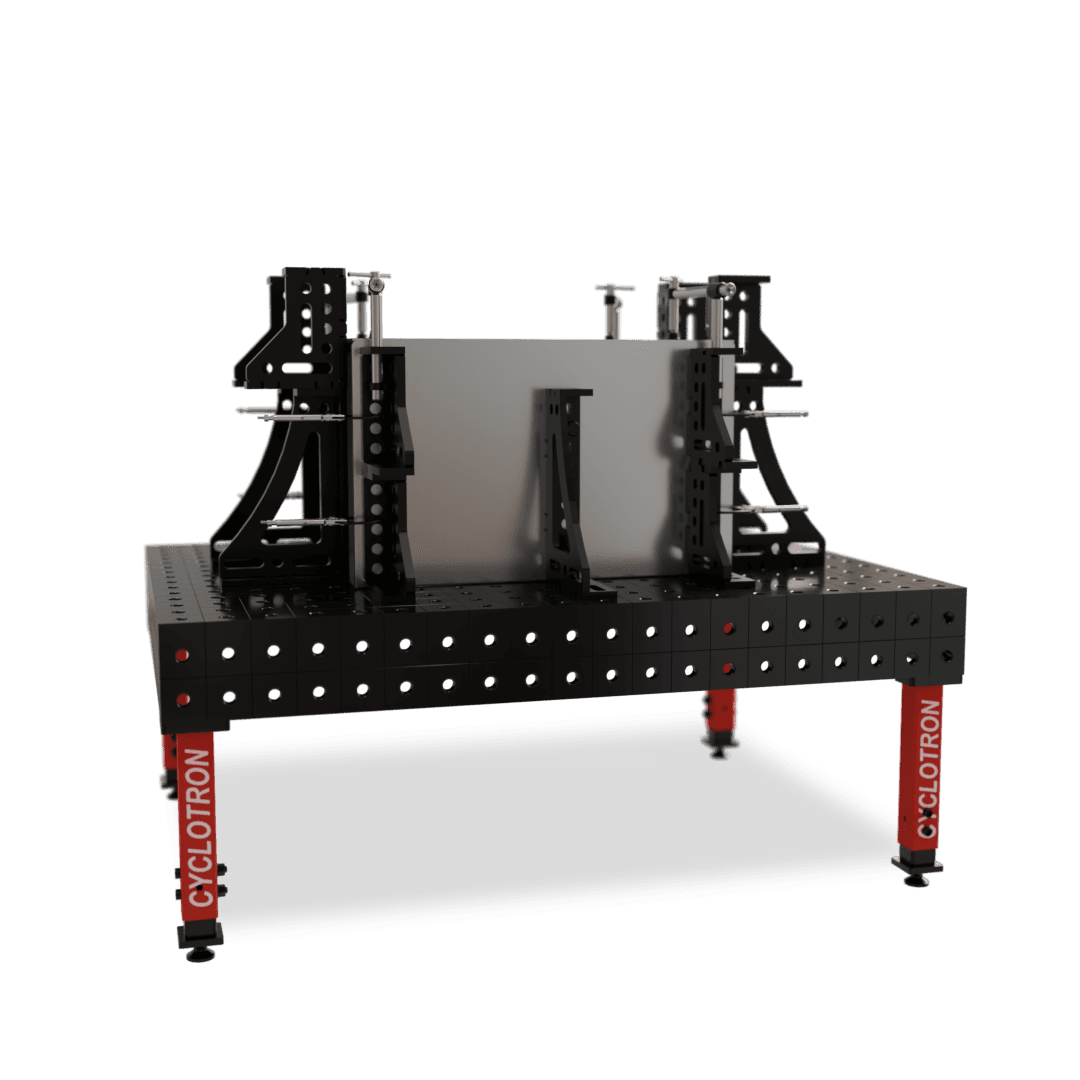

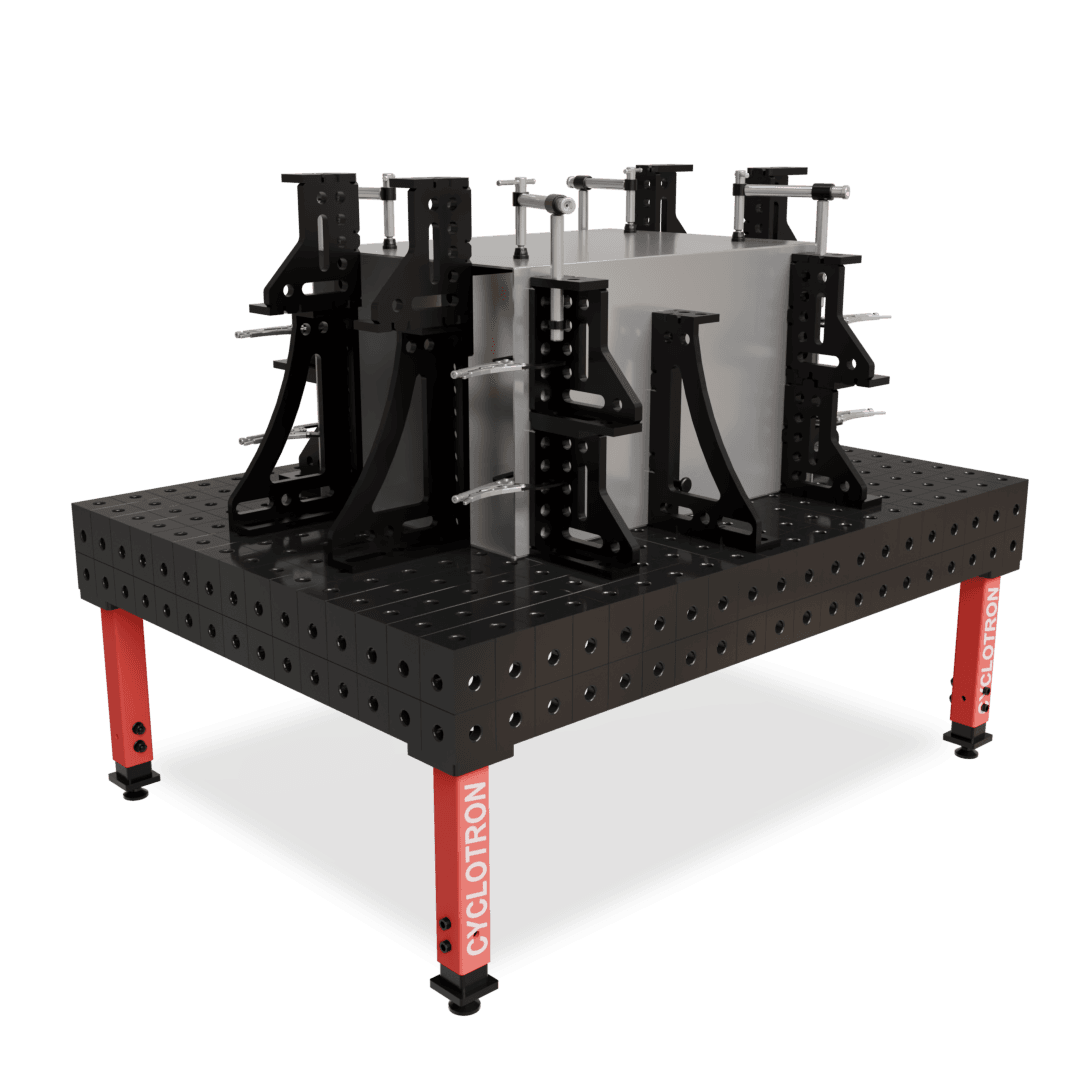

Optimized for clamping, locating, and precision assembly across heavy fabrication and structural applications.
Designed for modularity and scalability, enabling faster setups, standardized workflows, and reusability.
A superior alternative to traditional fixtures, delivering higher efficiency, precision, and long-term cost advantage.
