D16 - Right Angle Brackets
Right Angle Brackets
Cyclotron Right Angle Brackets are meticulously designed to provide rigid and accurate 90-degree support for welding, assembly, and fabrication tasks. Engineered for reliability and versatility, these brackets ensure precise alignment of components, making them ideal for applications that demand stable right-angle clamping. Crafted with high-quality materials, Cyclotron Right Angle Brackets offer long-lasting performance and seamless integration into your workspace setup.
Applications

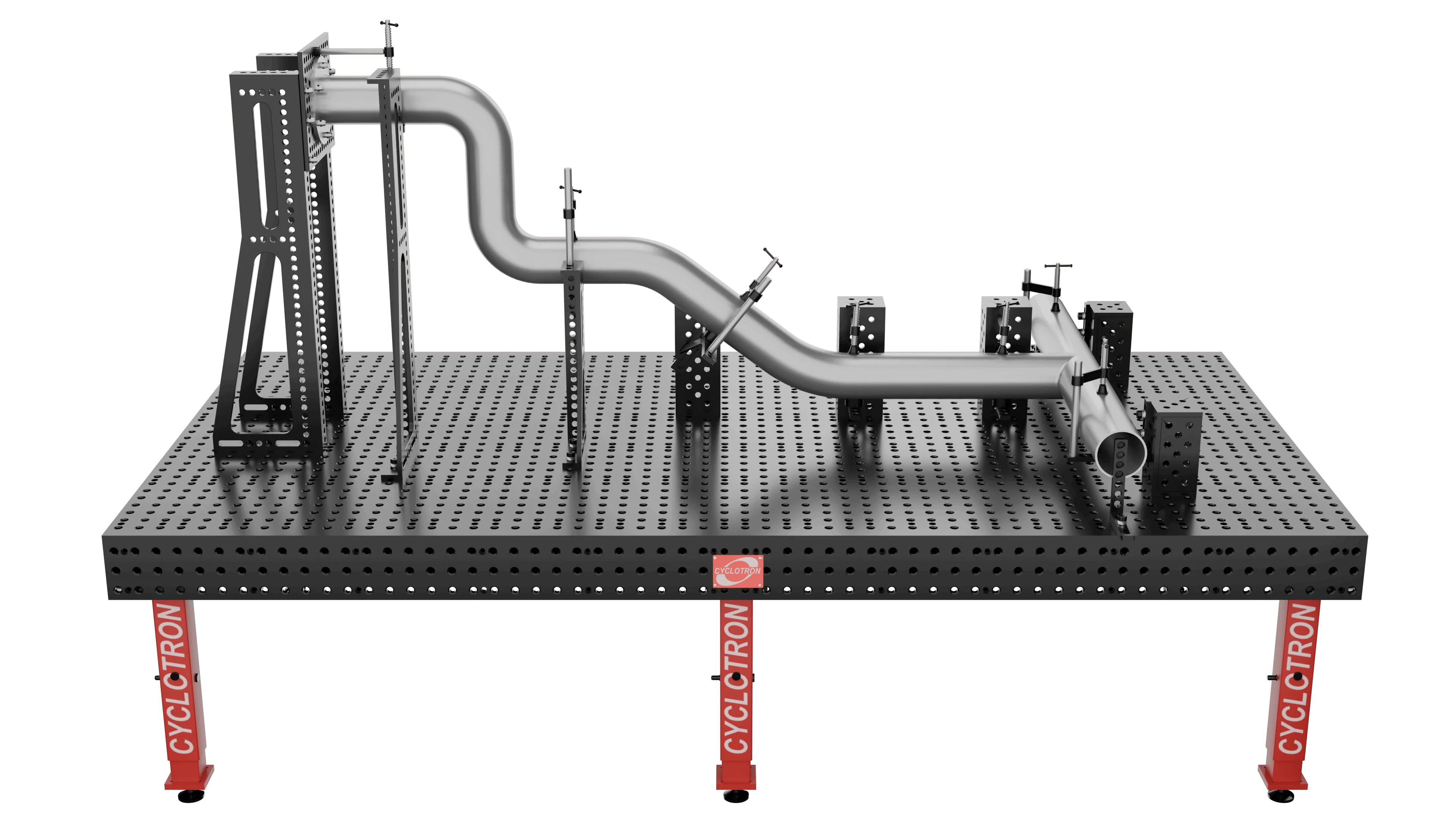

Welding: Ensures precise alignment of parts for creating strong and accurate weld joints at 90 degrees.
Assembly: Facilitates stable positioning of components during assembly tasks requiring right-angle alignment.
Fabrication: Supports the creation of rigid structures with perfect 90-degree angles for high-quality results.
Inspection and Quality Control: Assists in positioning parts for inspection to ensure accuracy in assembled components.
| Part Name | Part No | Height (mm) | Width (mm) |
|---|---|---|---|

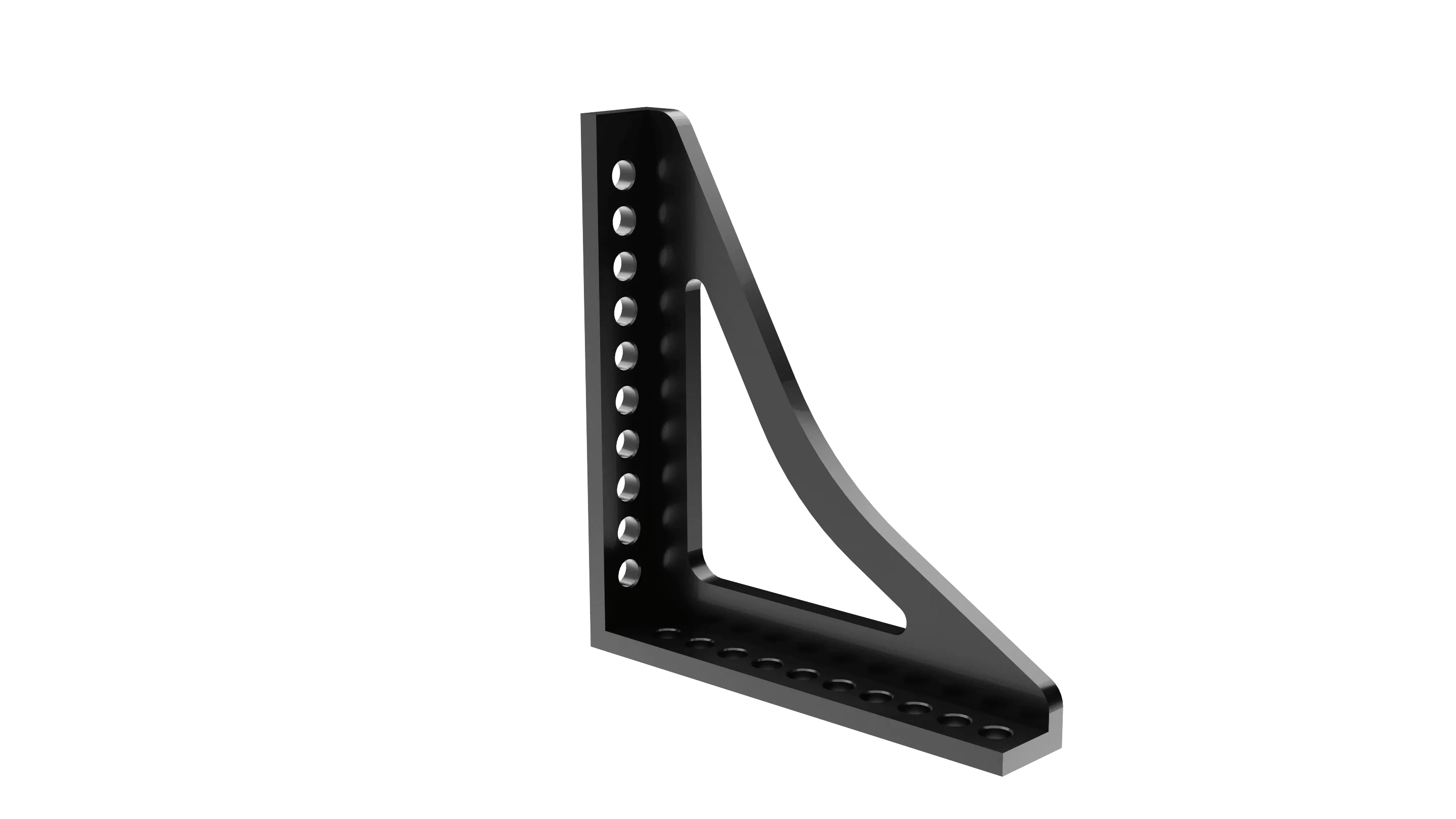

| D16 Right Angle Bracket 300 | D16-RAB300 | 300 | 275 |
| D16 Right Angle Bracket 500 | D16-RAB500 | 500 | 275 |

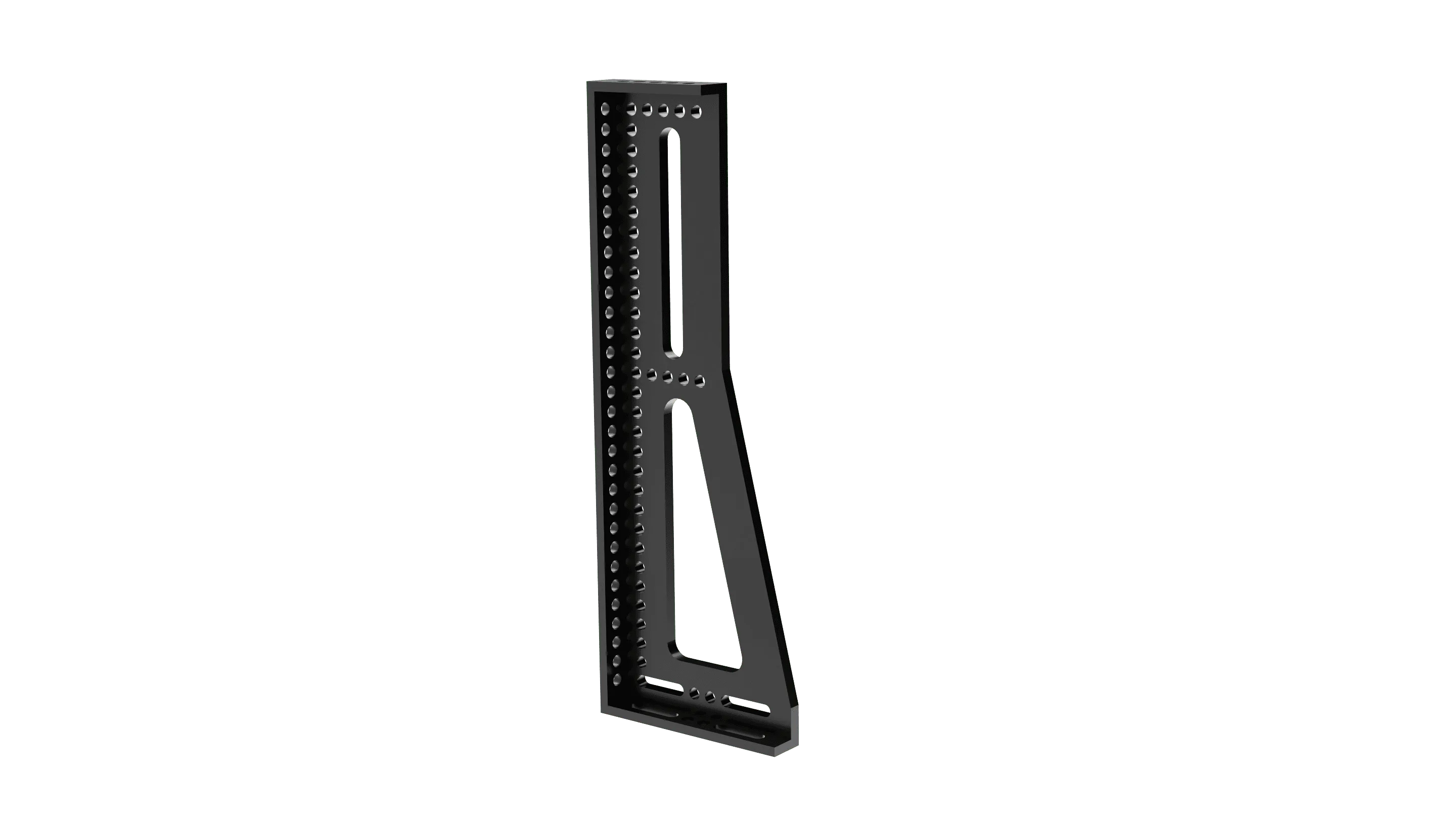

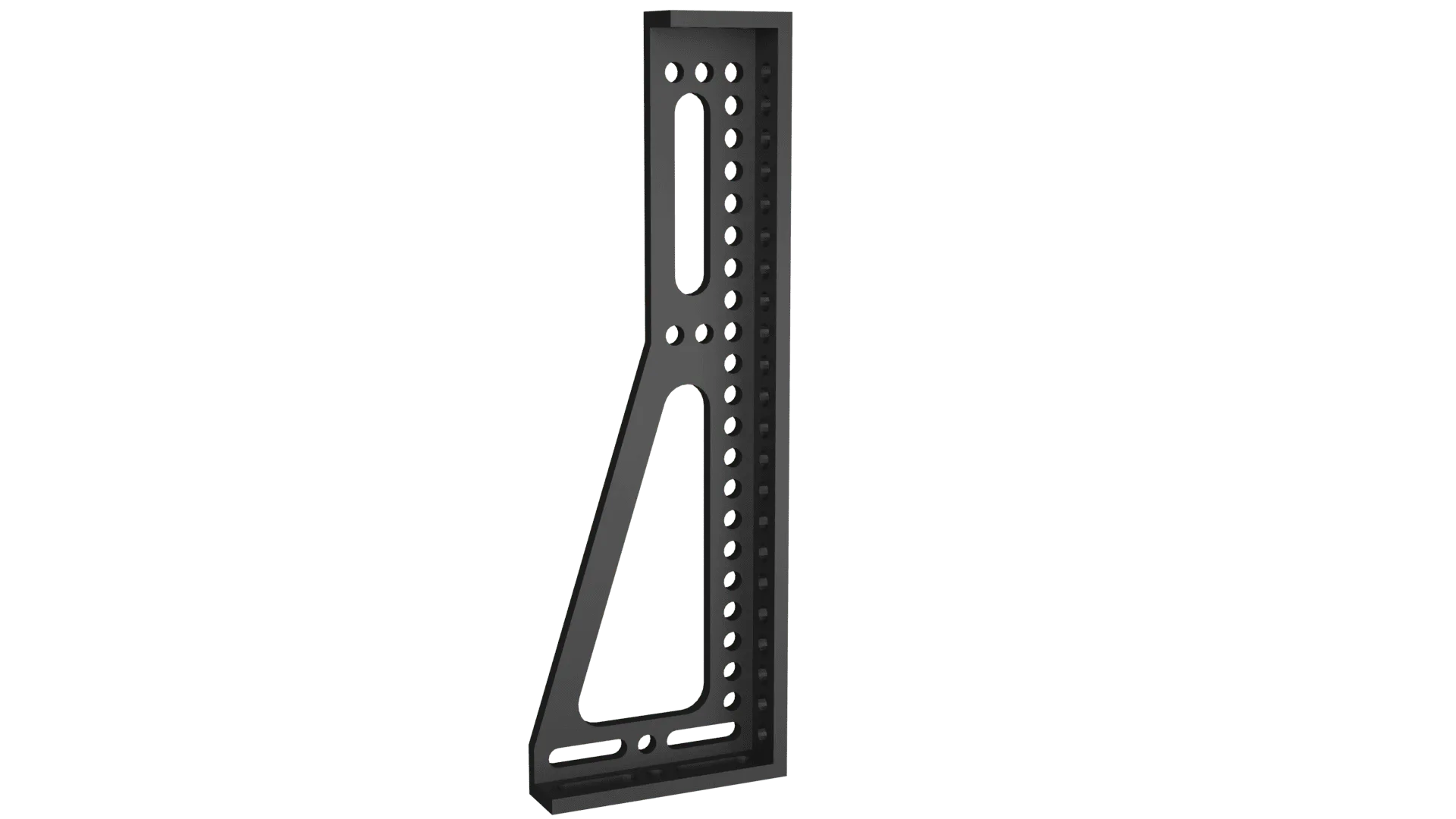

| D16 Right Angle Bracket 600 | D16-RAB600 | 600 | 275 |
| D16 Right Angle Bracket 800 | D16-RAB800 | 800 | 275 |

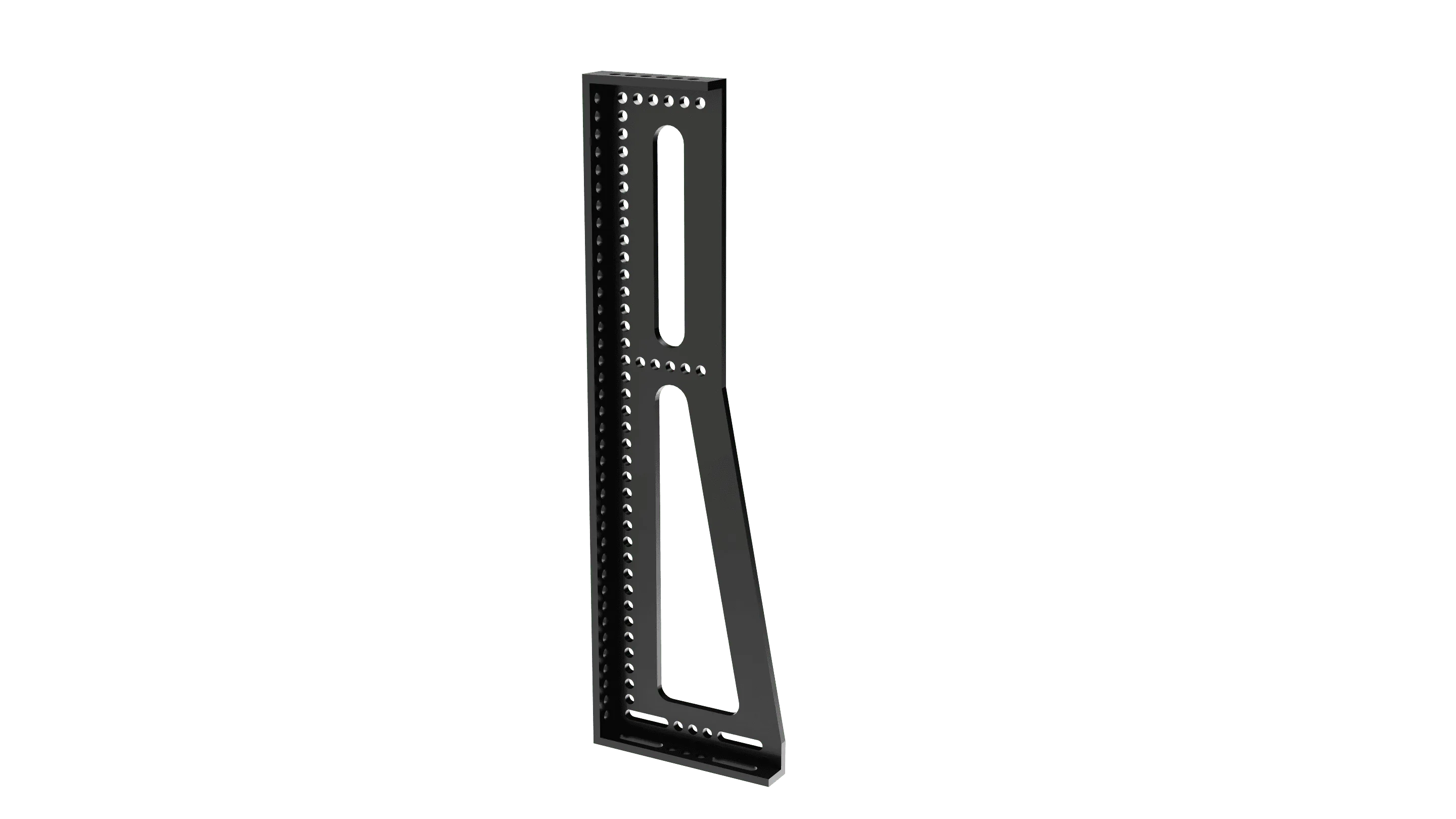

| D16 Right Angle Bracket 1000 | D16-RAB1000 | 1000 | 300 |
