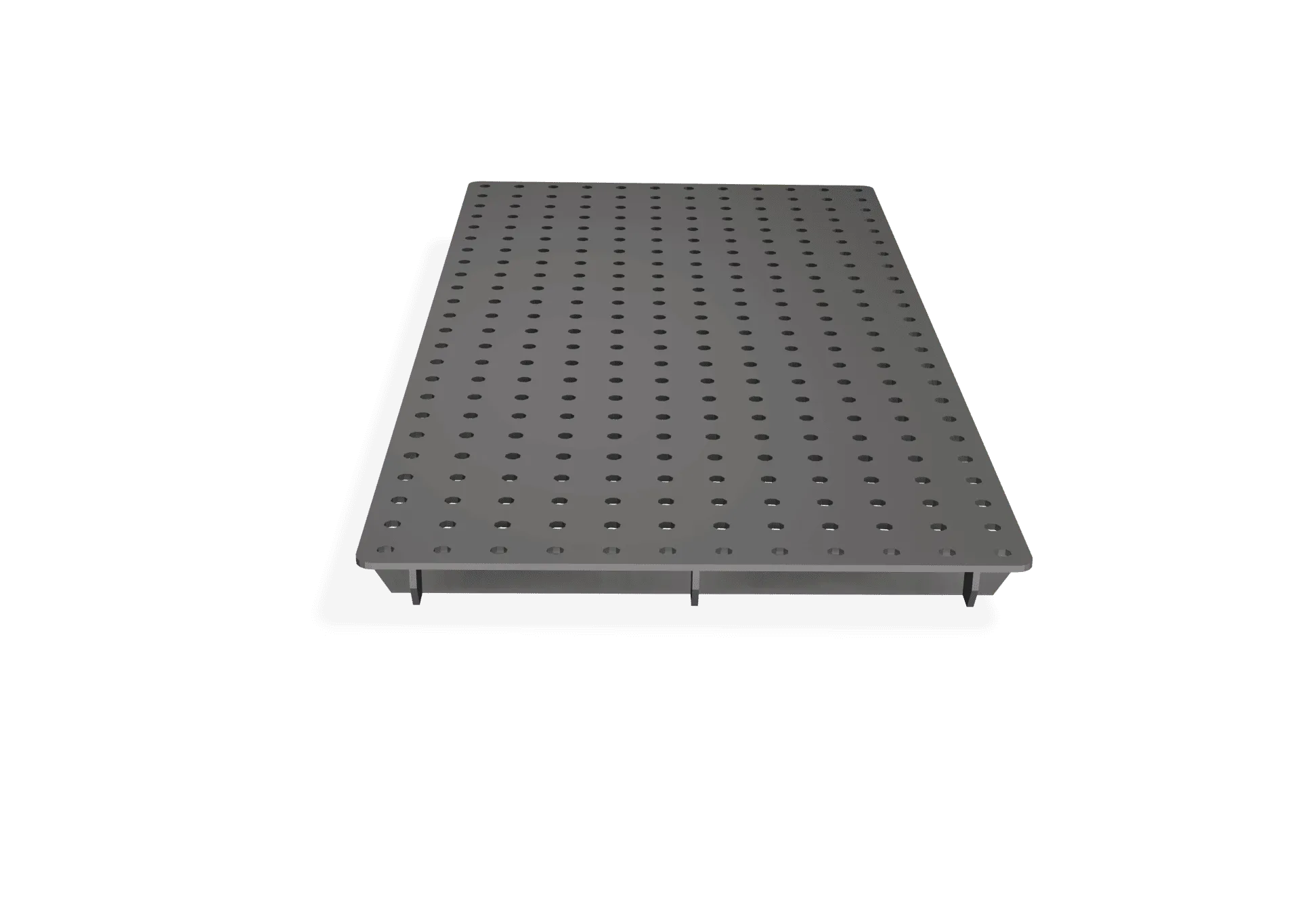

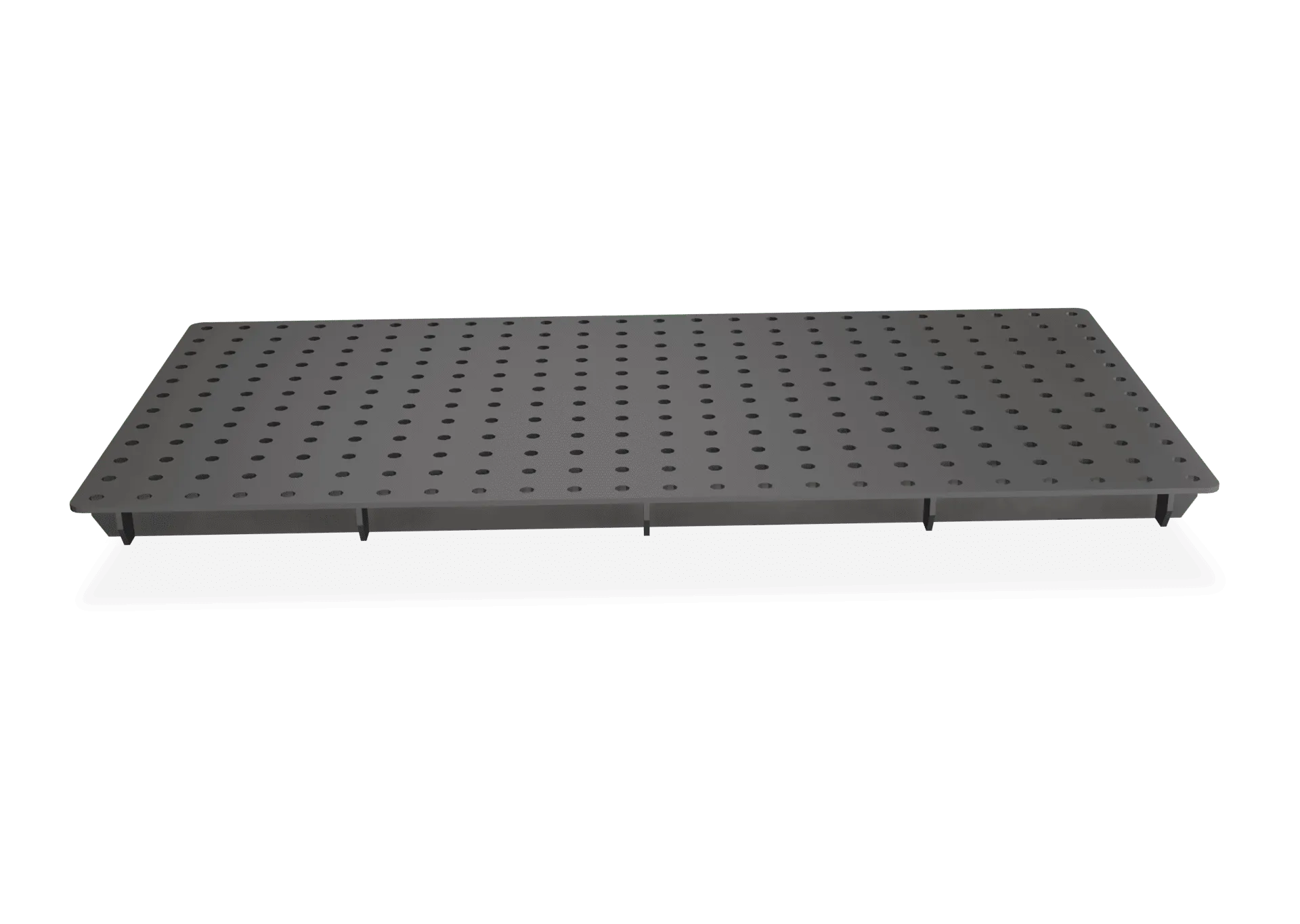

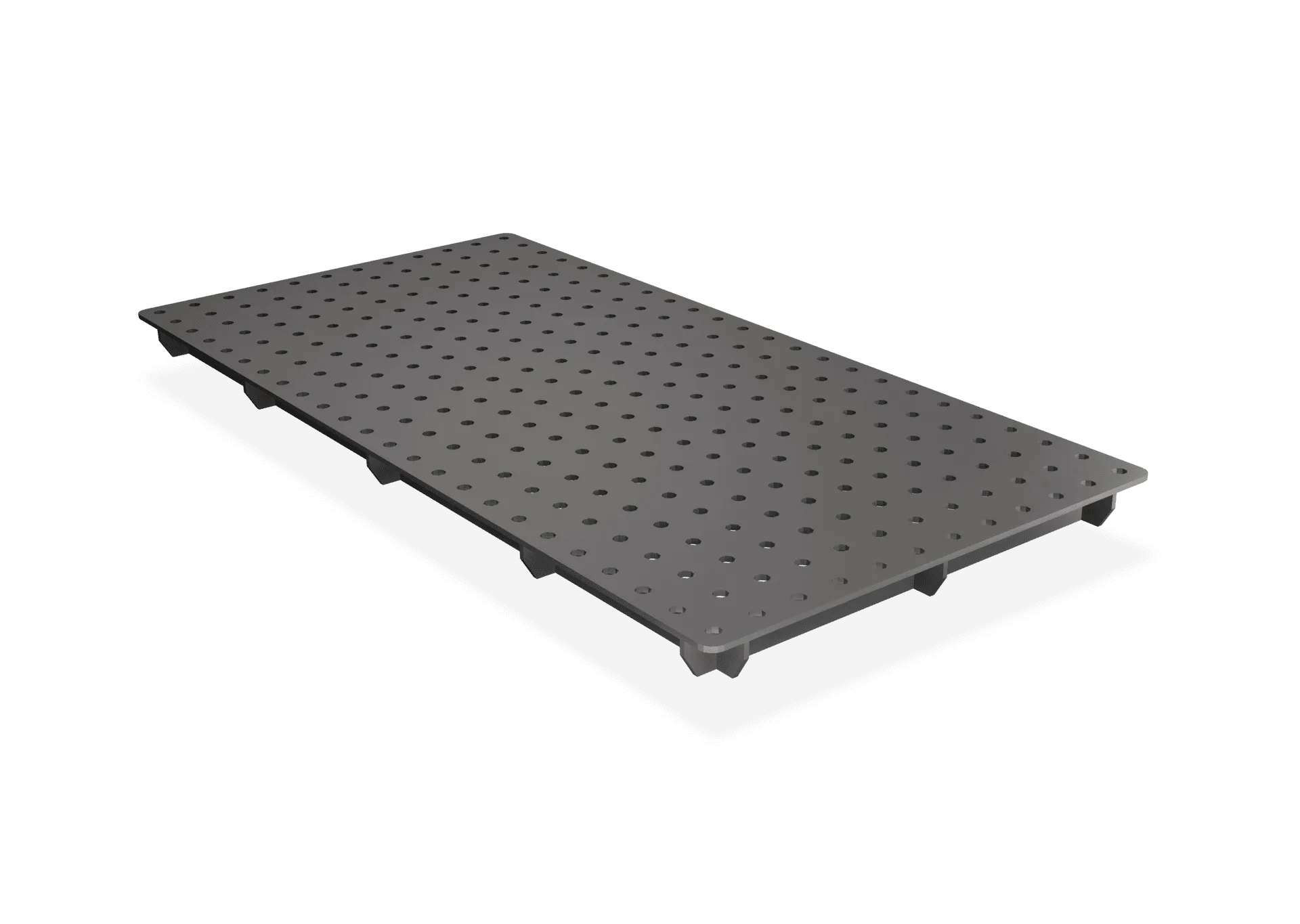

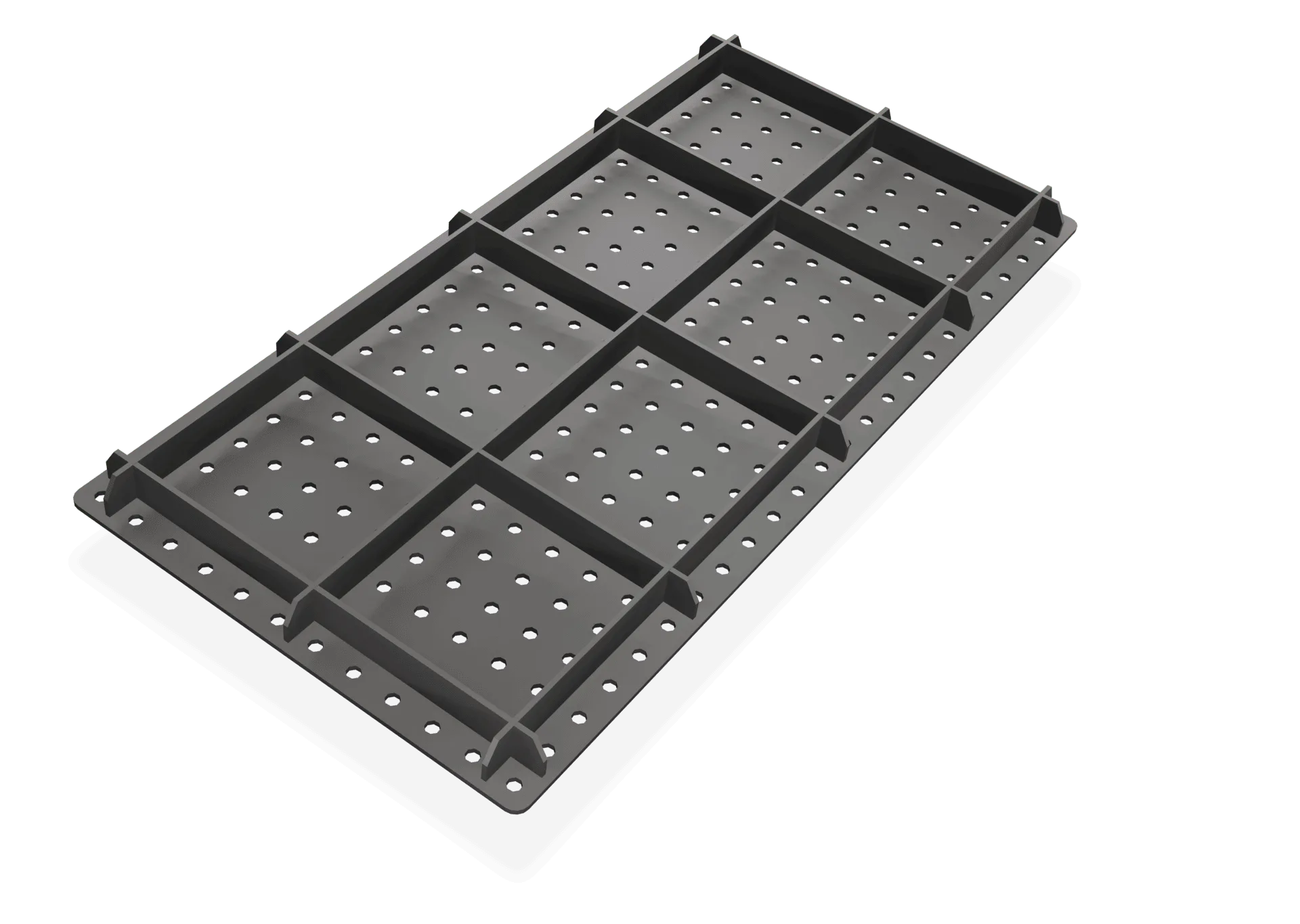

CYCLOTRON Ecoflex 2D Welding table

ECOFLEX 2D WELDING TABLE

Modular. Expandable. Precision-Engineered

The ECO-FLEX Series welding tables provide cost-effective welding tables for light to medium-duty tasks. Available in D16 (8 mm and 12 mm thickness) and D28 (20 mm thickness), these tables feature 50/100 mm grid (D16) and 50 mm grid (D28) layouts.

Built for affordability and functionality, they ensure compatibility with standard fixtures and clamps.

Perfect for basic welding needs, this series offers reliable performance on a budget.

Why Choose the ECOFLEX Series?

Budget-Friendly Without Compromising Quality: The Eco Series offers a high-performance welding surface at a competitive price, making it ideal for small workshops, startups, and budget-conscious businesses.

Optimized for Light to Medium-Duty Applications: Engineered with a 12 mm thick tabletop, these tables are perfect for light fabrication, small-scale welding projects, and general assembly work

Ideal for Workshops, Training Institutes, and Small Businesses: Whether you are setting up a new workshop, running a welding training program, or need an economical solution for your fabrication projects, the Eco Series is the perfect fit.

D16-ECOFLEX 2D Welding table Sizes

Part No	Size	Thickness (mm)	Weight (kgs)	Capacity (kgs)
WT-D16-2D-600x1000-0850-ST	600x1000	8	110	72
WT-D16-2D-800x1200-0850-ST	800x1200	8	125	115
WT-D16-2D-1000x2000-0850-ST	1000x2000	8	180	240
WT-D16-2D-1200x2400-0850-ST	1200x2400	8	291	350

Part No	Size	Thickness (mm)	Weight (kgs)	Capacity (kgs)
WT-D16-2D-600x1000-1250-ST	800x1500	12	122	216
WT-D16-2D-1000x2000-1250-ST	1000x2000	12	145	360
WT-D16-2D-1200x2400-1250-ST	1200x2400	12	238	518
WT-D16-2D-1500x3000-1250-ST	1500x3000	12	291	800

D28-ECOFLEX 2D Welding table Sizes

Part No	Size	Thickness (mm)	Weight (kgs)	Capacity (kgs)
WT-D28-2D-800x1500-20100-ST	800x1500	20	145	480
WT-D28-2D-1000x2000-20100-ST	1000x2000	20	186	800
WT-D28-2D-1200x2400-20100-ST	1200x2400	20	329	1152
WT-D28-2D-1500x3000-20100-ST	1500x3000	20	497	1800
