D16-Riser blocks
Riser blocks
Cyclotron Riser Blocks are essential accessories for welding and assembly tables, engineered to deliver unmatched versatility, precision, and reliability.
Designed with five machined surfaces and a precisely arranged 50×50 mm hole grid, these blocks enable custom setups, elevated operations, and seamless integration with Cyclotron’s modular and casting welding tables. Whether you’re managing intricate 3D configurations or handling large workpieces, our riser blocks provide the support and adaptability you need to enhance productivity and precision
Applications

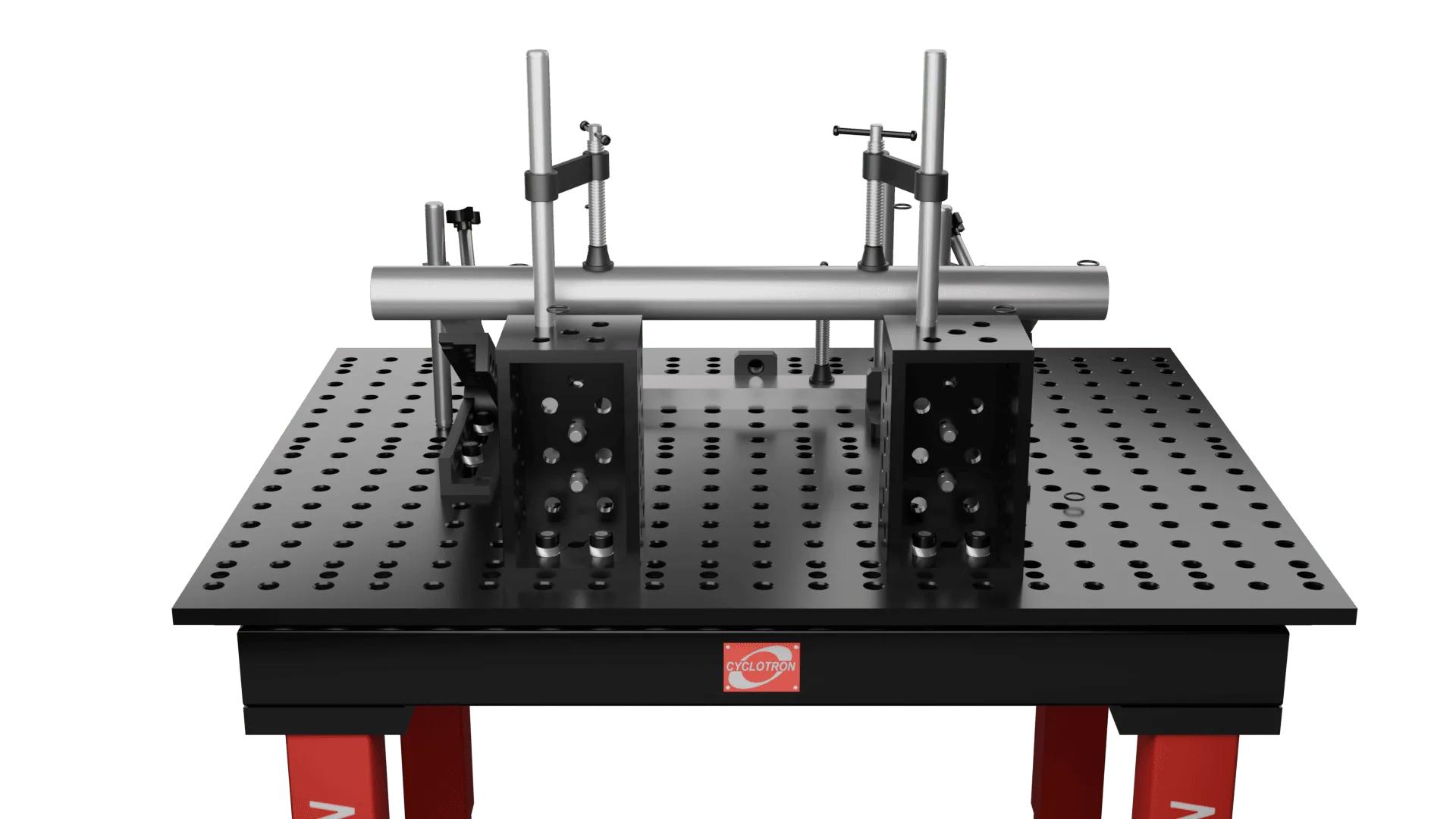

Elevated Welding and Clamping: Position components at optimal heights for better accessibility.

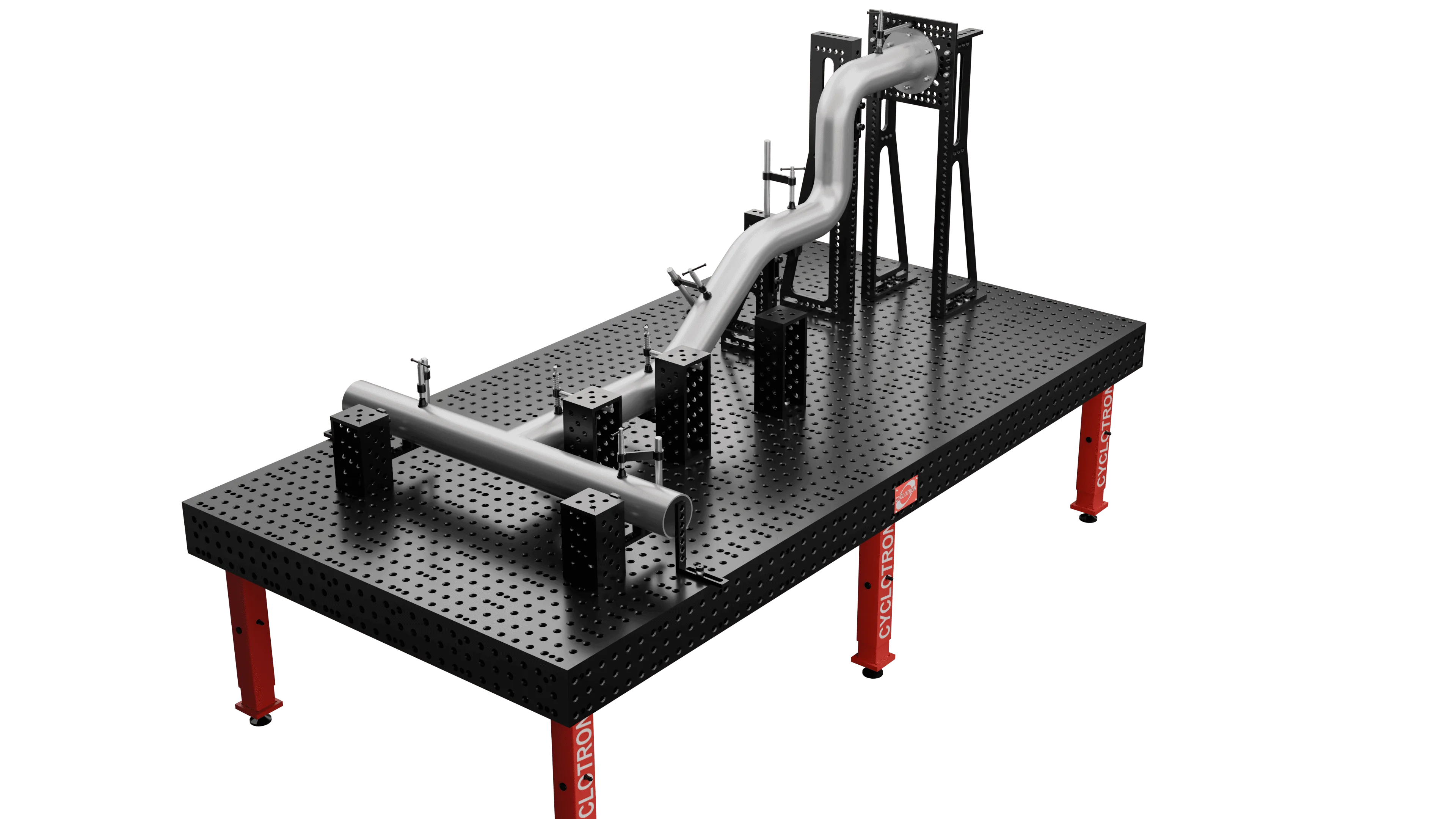

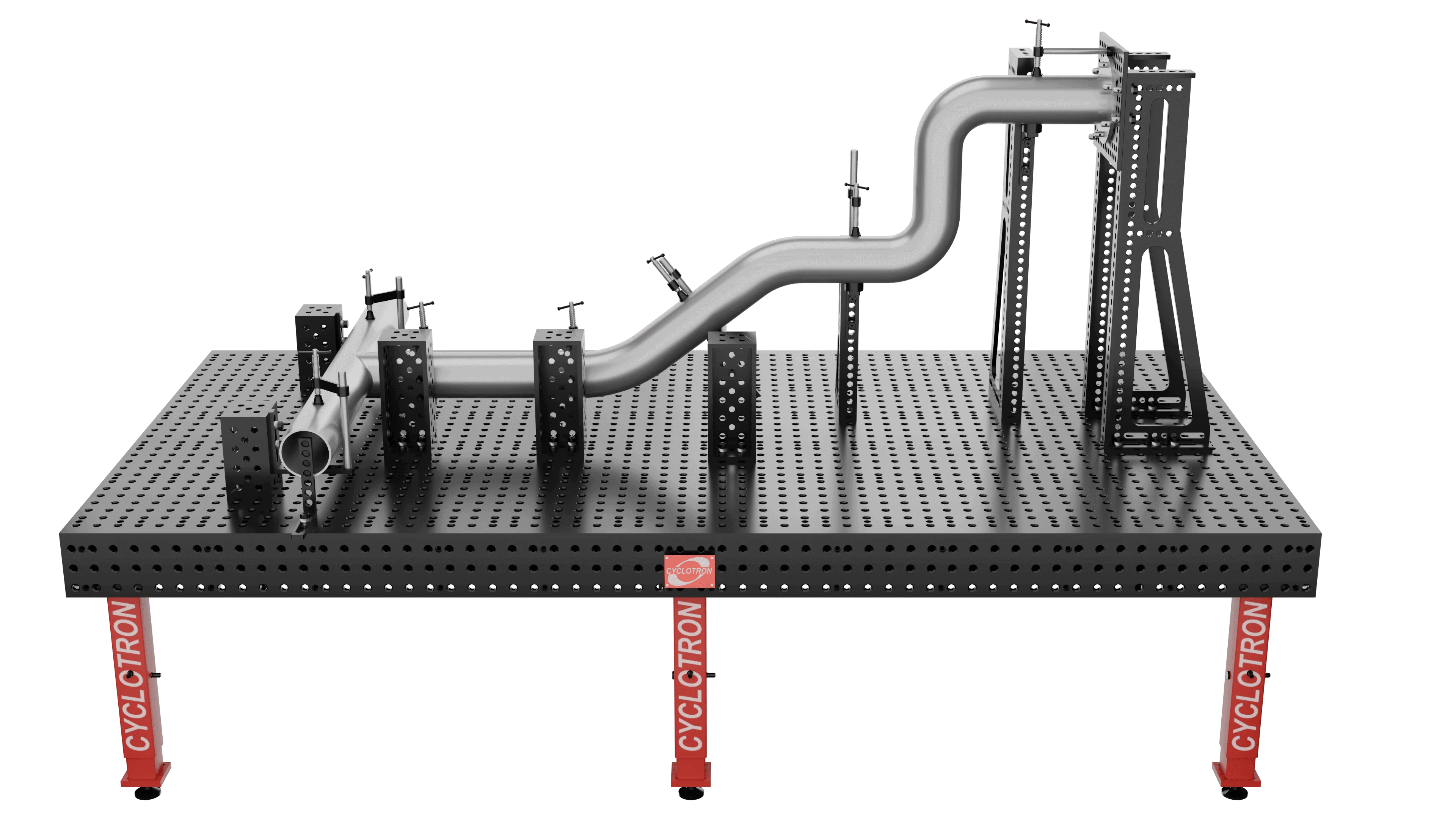

3D Assembly Configurations: Create multi-dimensional layouts for complex fabrication tasks.
Precision Projects: Achieve accurate positioning for parts that require meticulous alignment.
Heavy-Duty Support: Handle large and heavy workpieces with ease, ensuring stability throughout.

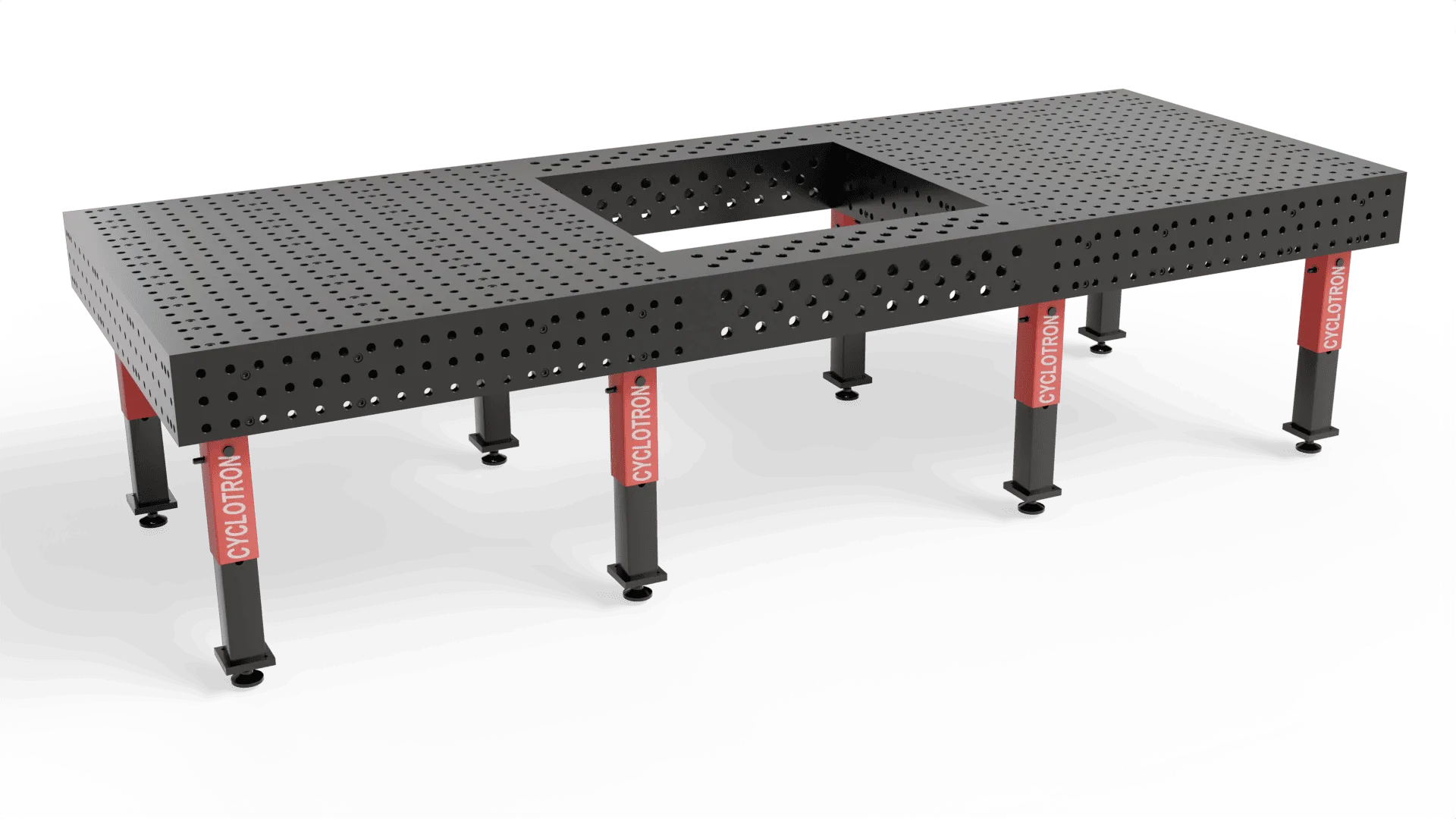

Welding table extensions: These blocks can be used as an extensions for joining 2 or more 3D welding tables.

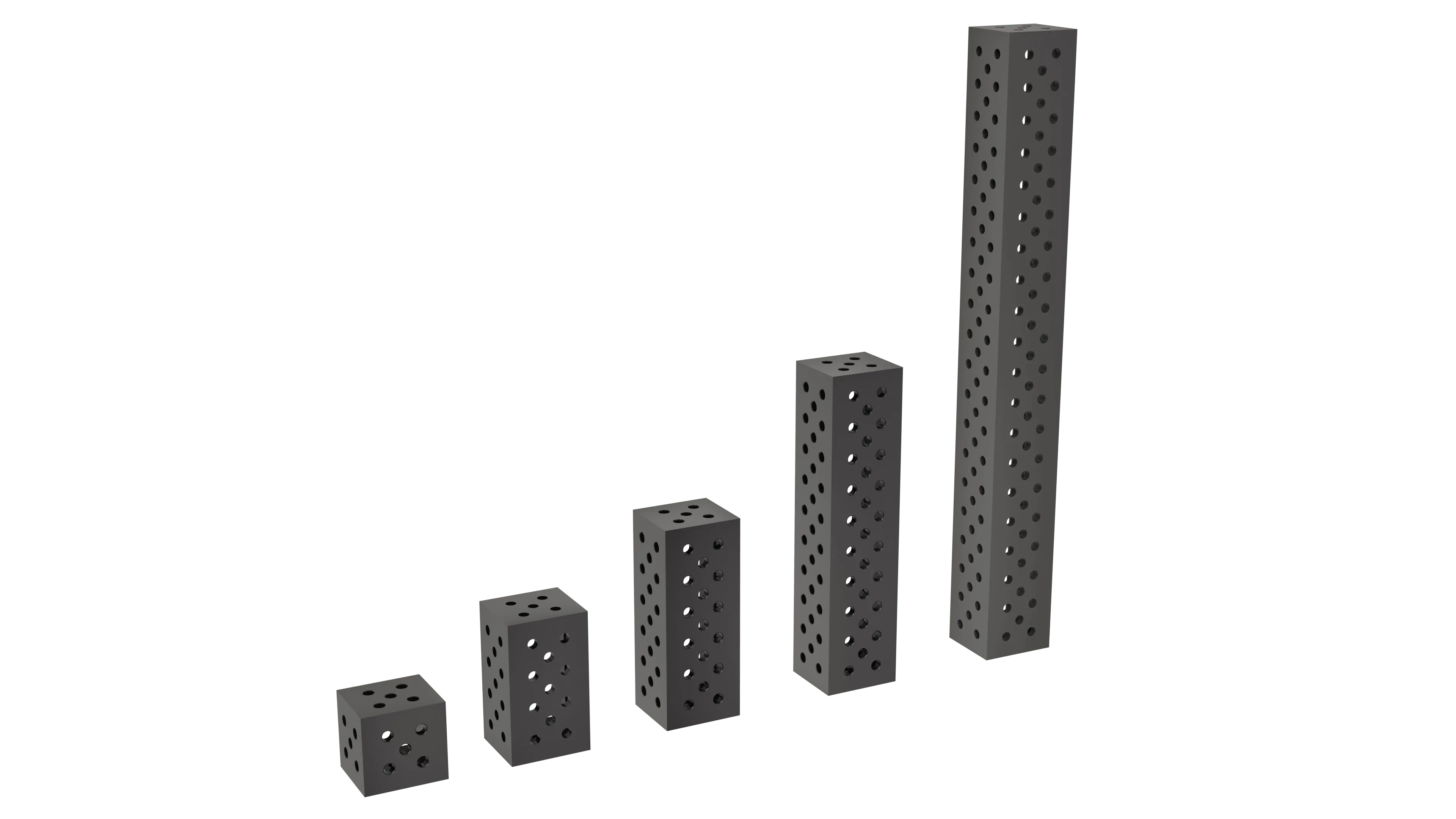

| Part Name | Part No | Height (mm) | Width (mm) | Weight (kg) |
|---|---|---|---|---|
| D16 Riser Block 120 | D16-RB120 | 120 | 120 | 5.5 |
| D16 Riser Block 220 | D16-RB220 | 220 | 120 | 6.5 |

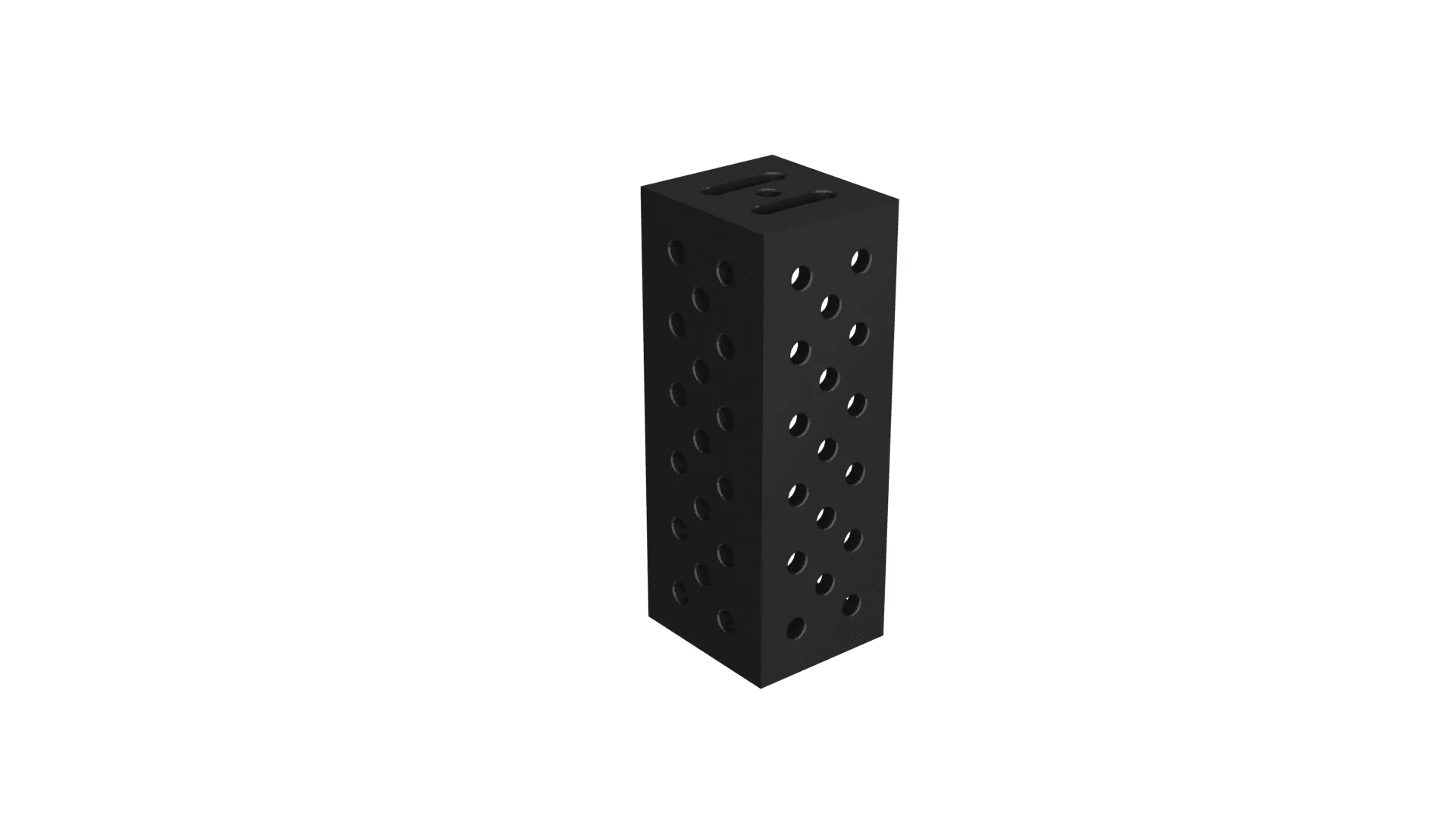

| D16 Riser Block 320 | D16-RB320 | 320 | 120 | 11 |

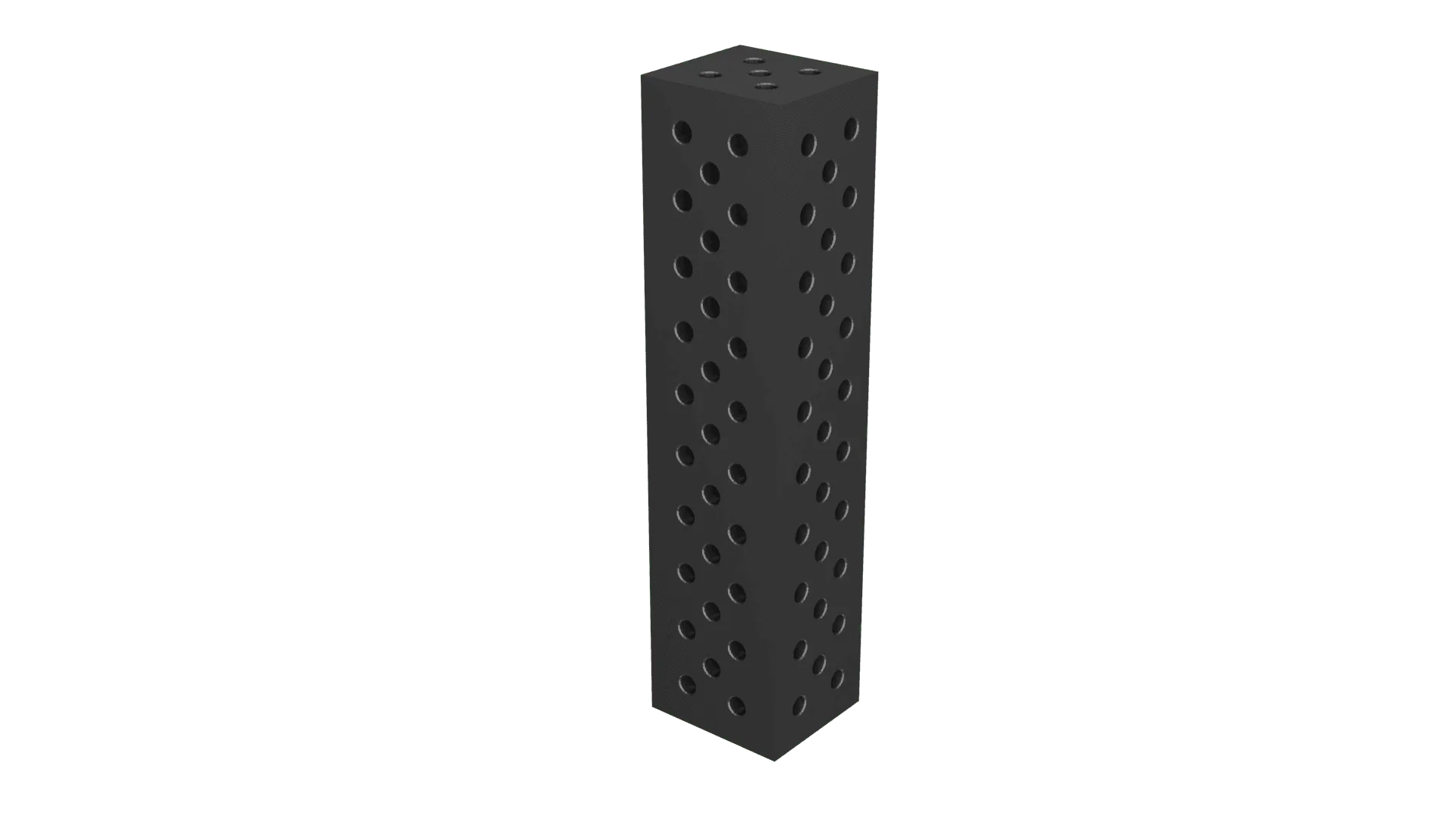

| D16 Riser Block 520 | D16-RB520 | 520 | 120 | 15 |
| D16 Riser Block 1020 | D16-RB1020 | 1020 | 120 | 20 |
