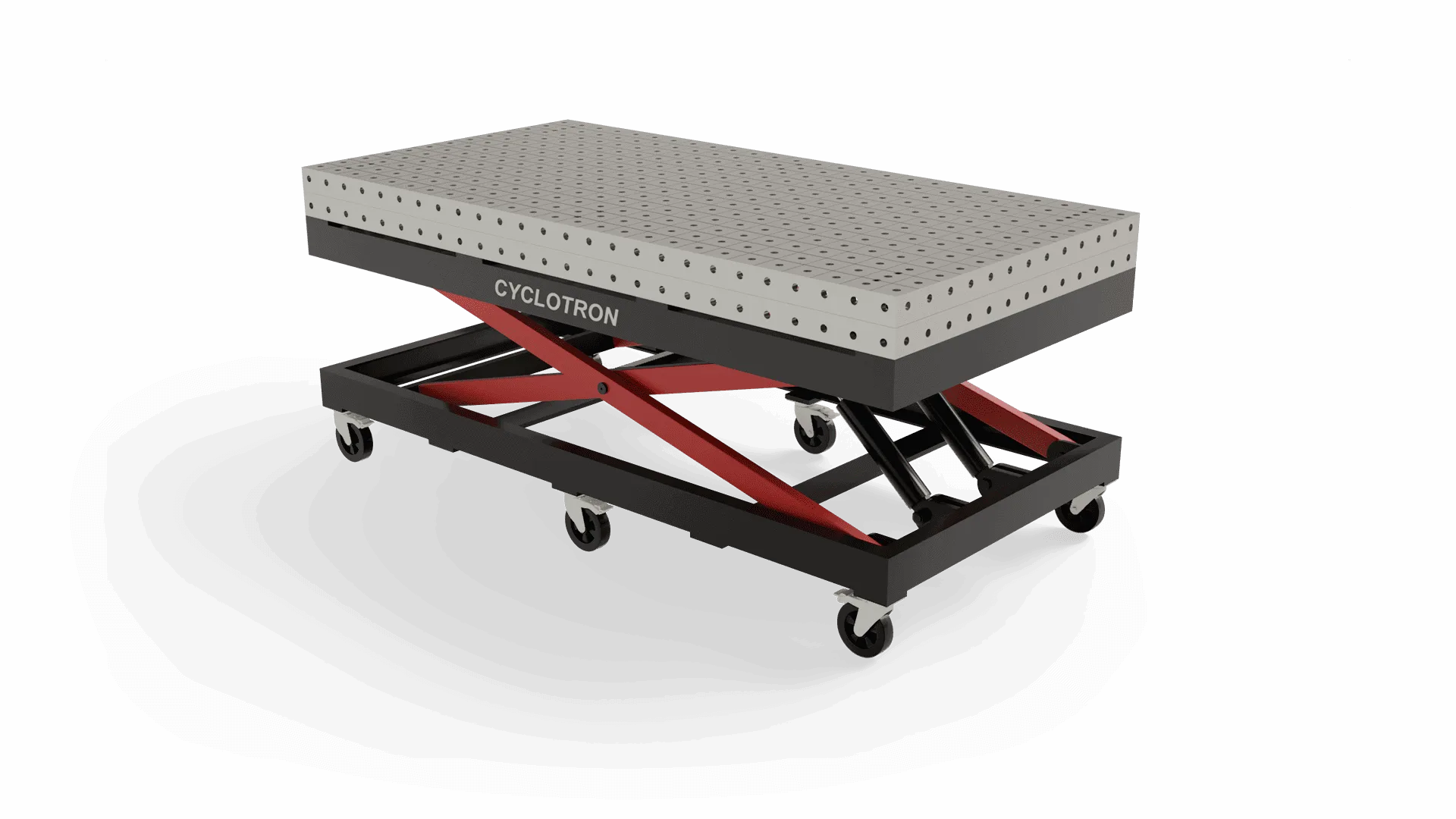

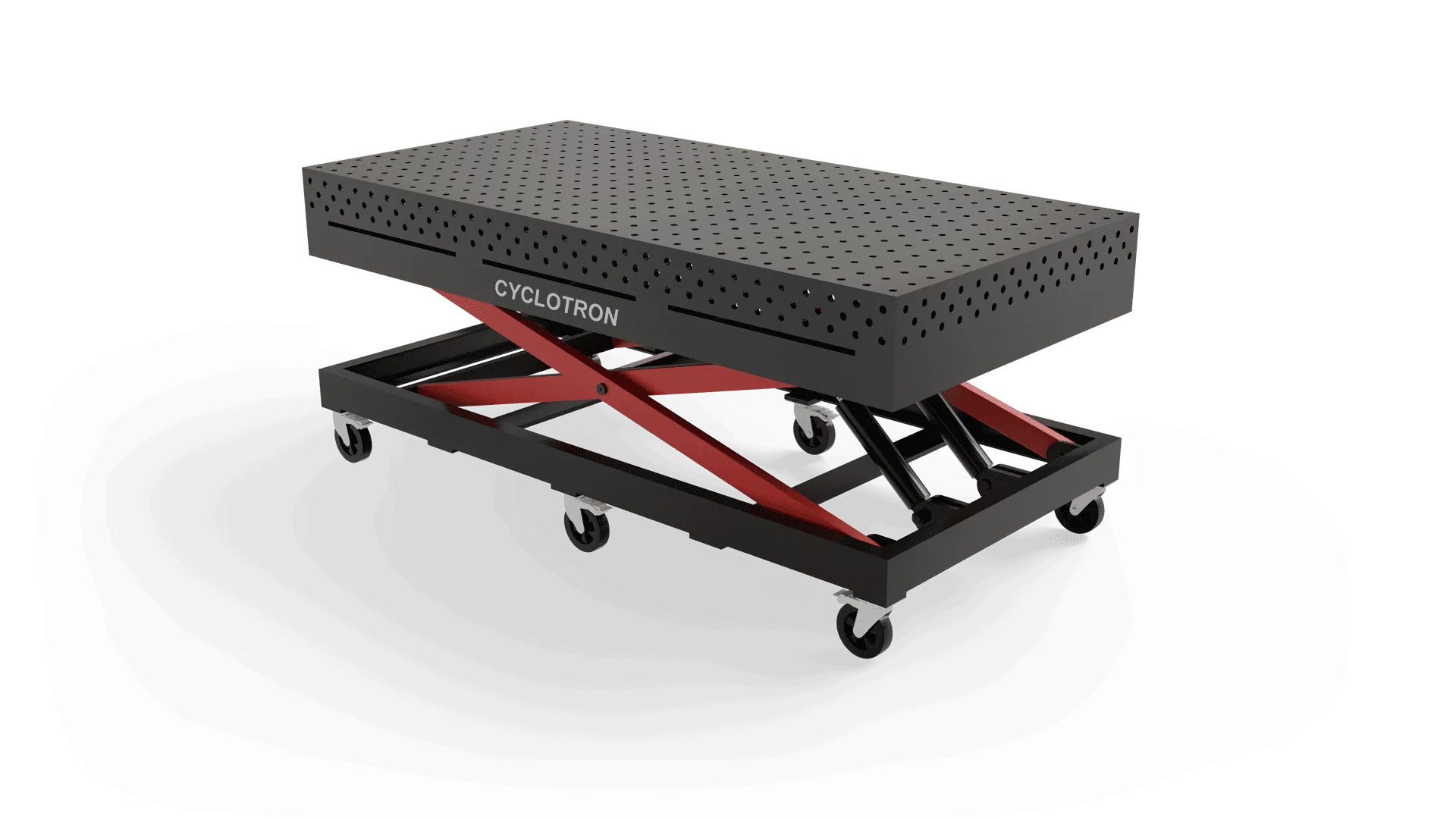

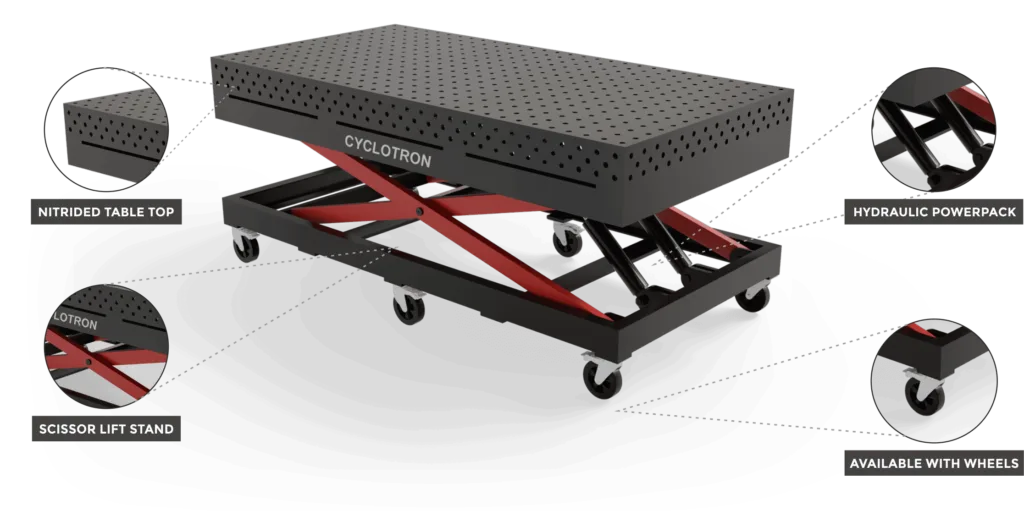

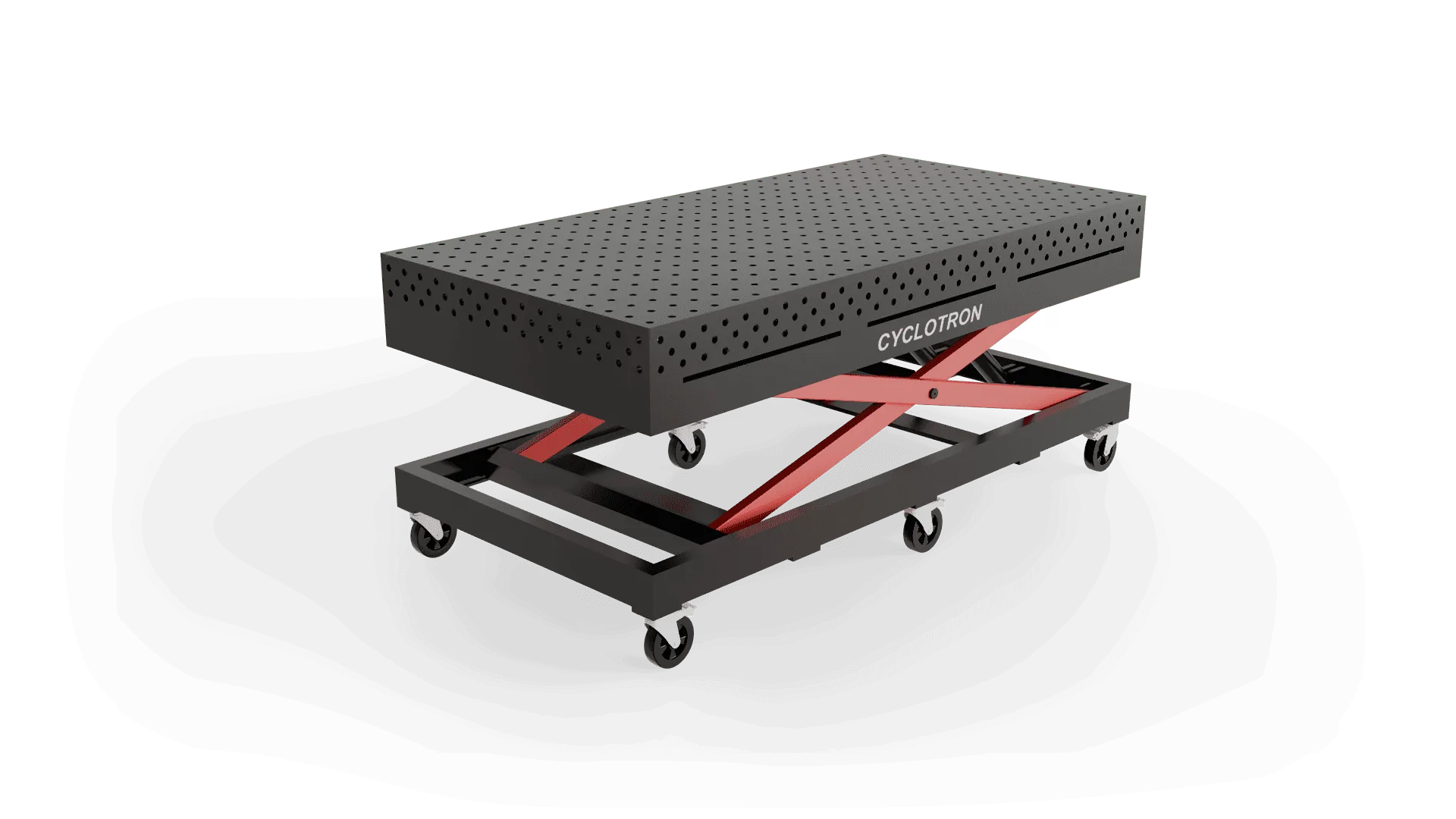

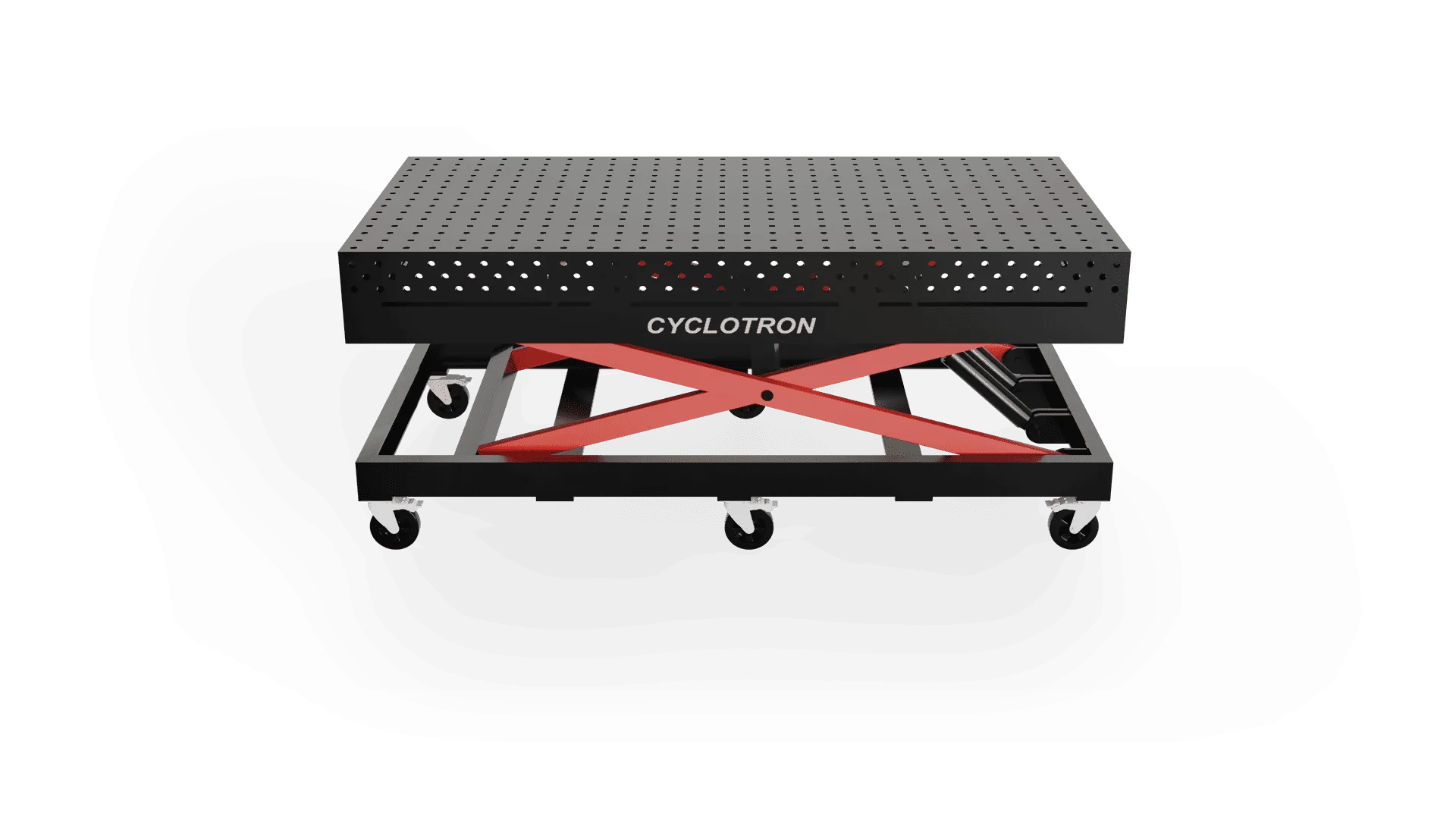

CYCLOTRON Scissor Lift Welding tables

Scissor Lift welding tables

Flexible. Adjustable. Precision-Engineered

The Cyclotron Scissor Lift Welding Tables provide an ergonomic and adjustable work surface, enhancing efficiency and safety in welding and fabrication tasks. Designed for heavy-duty applications, these tables offer smooth height adjustments, ensuring optimal positioning for precision work. With a sturdy construction and customizable load capacities, they are ideal for workshops requiring flexible and reliable lifting solutions

Why Choose the Scissor lift tables?

1. Ergonomic Welding & Fabrication
Allows welders to adjust table height to a comfortable working position, reducing strain and fatigue.
Enhances precision and accessibility when working on complex assemblies.
2. Versatile Height Adjustments
Perfect for multi-stage welding processes, where different heights are required.
Provides seamless transitions between tasks without the need for additional support structures.

D16-Scissor Lift Welding table Sizes

Part No	Size	Height (Adjustable) (mm)	Side Plate	Grid	Capacity
WT-D16-SCISSOR-800x1500	800x1500	400-1000	150	50	800
WT-D16-SCISSOR-1000x2000	1000x2000	400-1000	150	50	1200
WT-D16-SCISSOR-1500x3000	1500x3000	400-1000	150	50	3000

D28-Scissor Lift Welding table Sizes

Part No	Size	Height (Adjustable) (mm)	Side Plate	Grid	Capacity
WT-D28-SCISSOR-800x1500	800x1500	400-1000	150	100	1000
WT-D28-SCISSOR-1000x2000	1000x2000	400-1000	150	100	1800
WT-D28-SCISSOR-1500x3000	1500x3000	400-1000	150	100	5000
