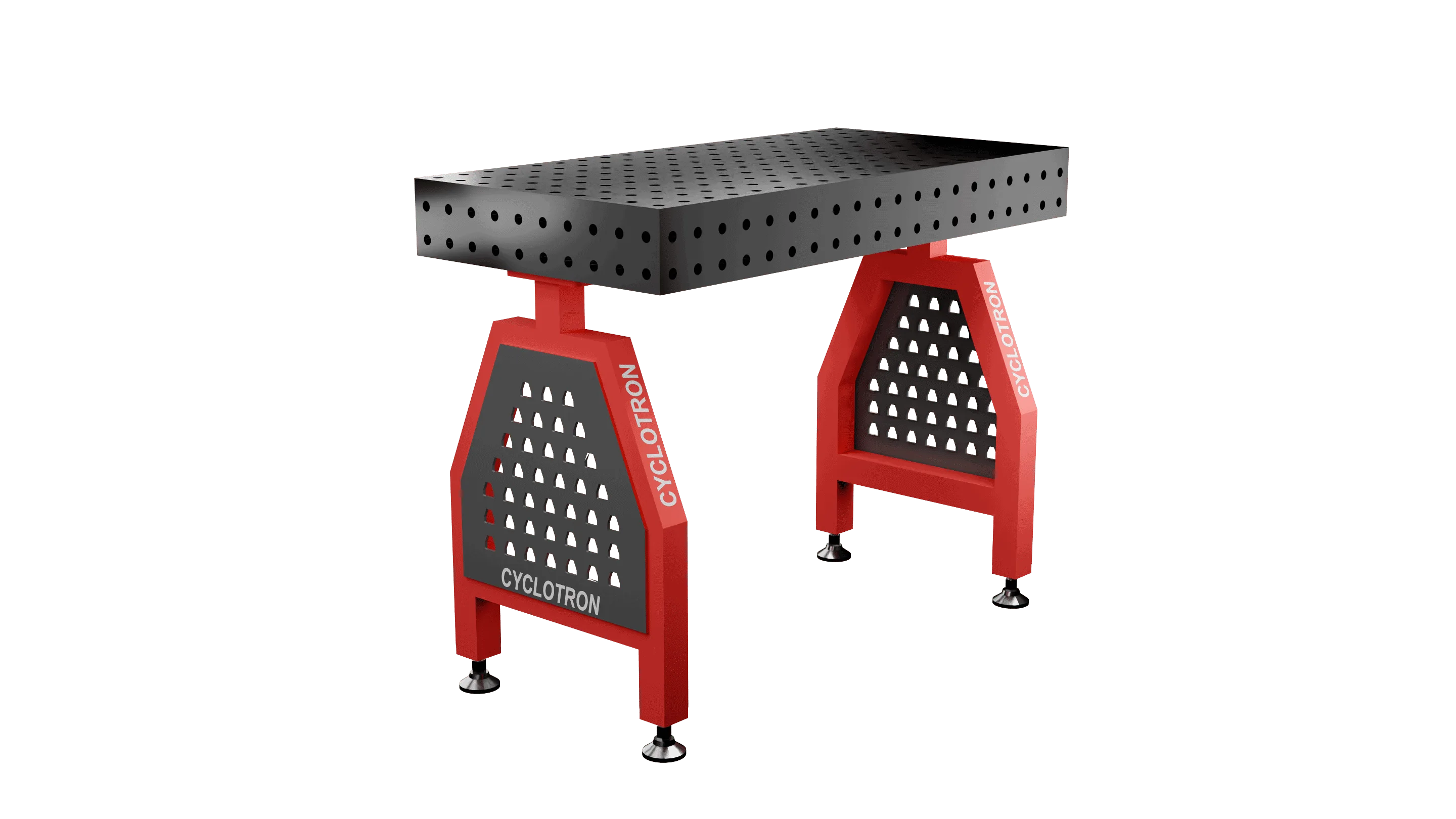

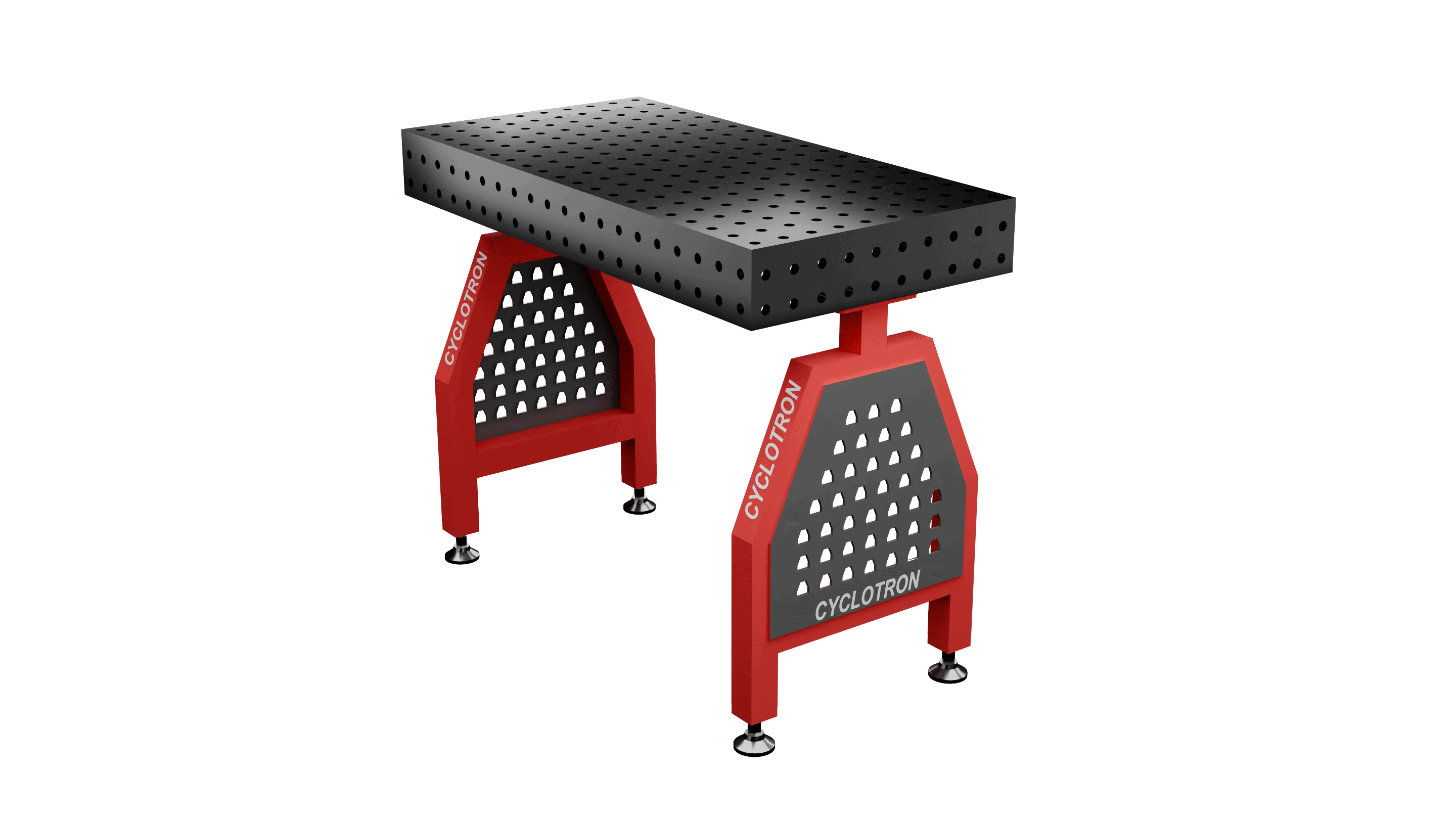

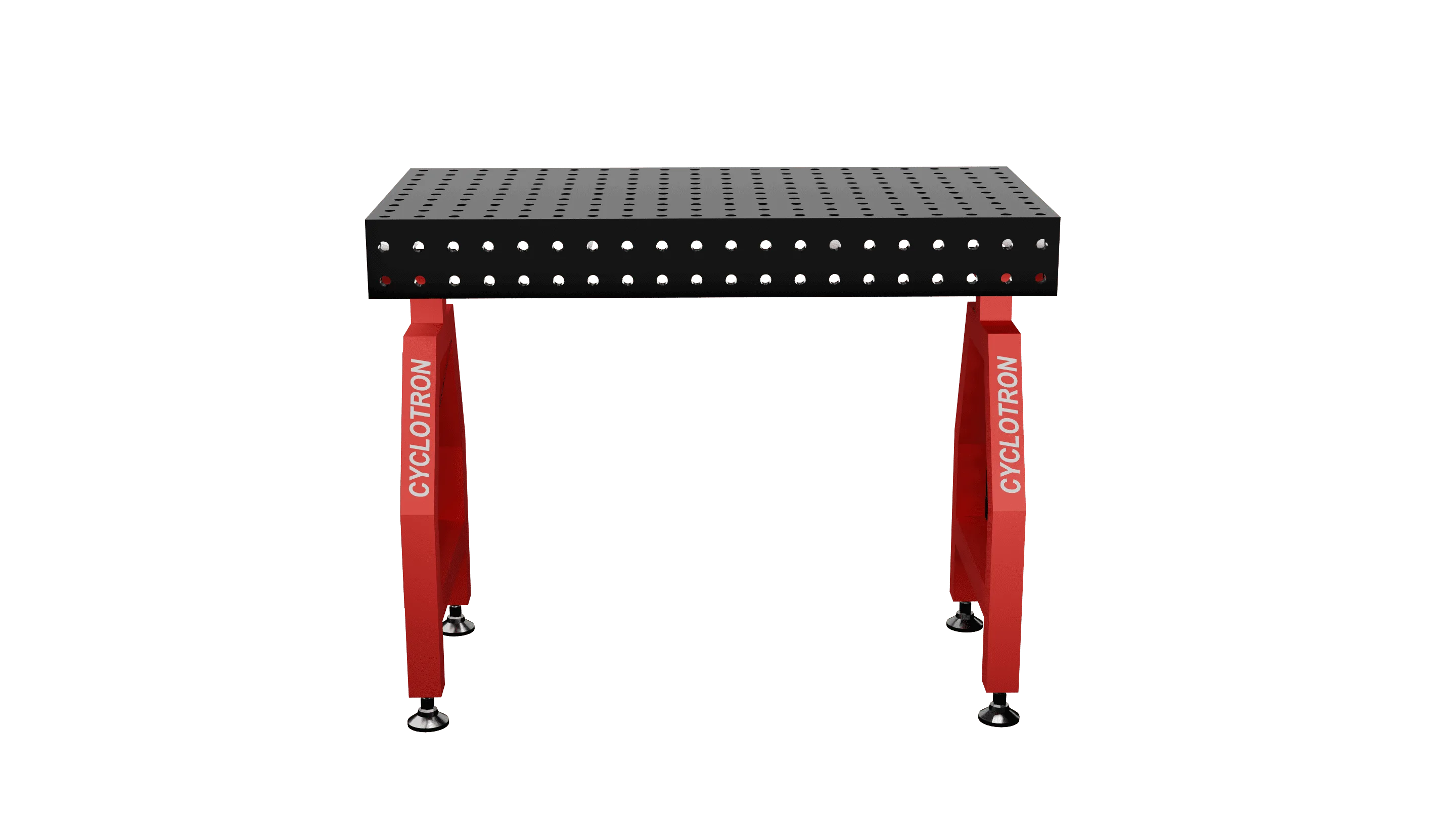

CYCLOTRON Segment Series Welding table
Segment Series WELDING TABLE
Modular. Expandable. Precision-Engineered
The SEGMENT Series of welding tables offers unparalleled modularity and versatility, enabling users to create custom table configurations tailored to their workspace requirements. Designed for flexibility, strength, and precision, these tables can be seamlessly joined to form larger work surfaces, ensuring optimal efficiency in welding and fabrication tasks.
SEGMENT SERIES IS INVENTED BY CYCLOTRON
Why Choose the SEGMENT Series?
Unlike traditional welding tables, the SEGMENT Series provides scalability and customization. Whether you’re working on small projects or large-scale fabrication, these tables adapt to your evolving workshop needs.
Expandable Design – Create larger tables by joining multiple segments.
Precision Machined Surface – Ensures accuracy in fabrication.

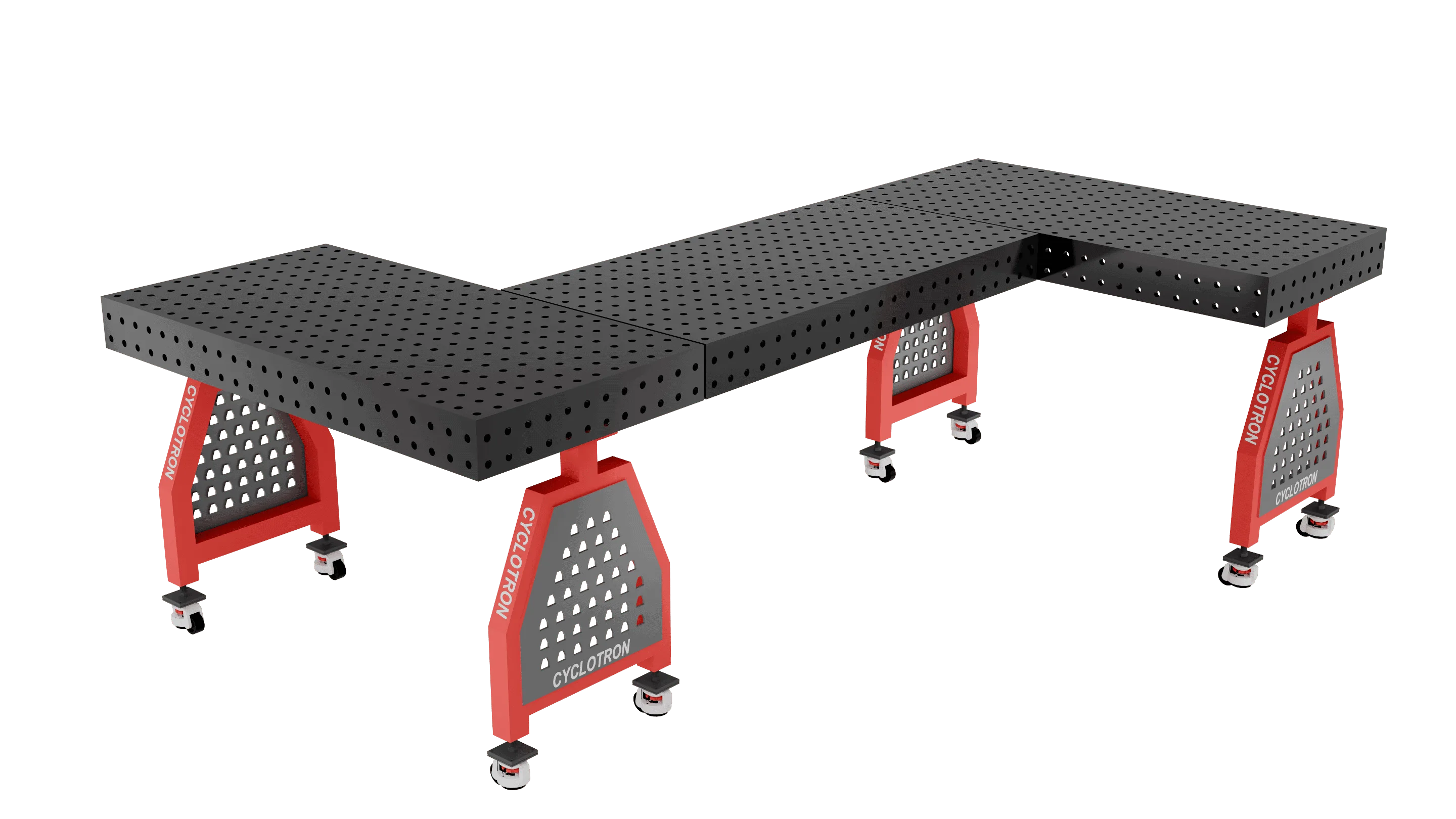

Multiple Configurations – Assemble in I-shape, T-shape, C-shape, or custom layouts.
Durability & Strength – Engineered to handle high-load applications.
Cost-Effective Scalability – Buy as needed and expand when required.
D16-Segment Welding table Sizes
| Part No | Size (mm) | Dia (mm) | Side Plate (mm) | Grid (mm) | Weight (kg) | Capacity (kg) |
|---|---|---|---|---|---|---|
| WT-D16-SEG-500x1000 | 500x1000 | 16 | 100 | 50 | 120 | 800 |
| WT-D16-SEG-600x1200 | 600x1200 | 16 | 100 | 50 | 145 | 800 |
| WT-D16-SEG-600x1500 | 600x1500 | 16 | 100 | 50 | 162 | 800 |
D28-Segment Welding table Sizes
| Part No | Size (mm) | Dia (mm) | Side Plate (mm) | Grid (mm) | Weight (kg) | Capacity (kg) |
|---|---|---|---|---|---|---|
| WT-D28-SEG-500x1000 | 500x1000 | 28 | 100 | 100 | 198 | 1000 |
| WT-D28-SEG-600x1200 | 600x1200 | 28 | 100 | 100 | 225 | 1000 |
| WT-D28-SEG-600x1500 | 600x1500 | 28 | 100 | 100 | 256 | 1000 |

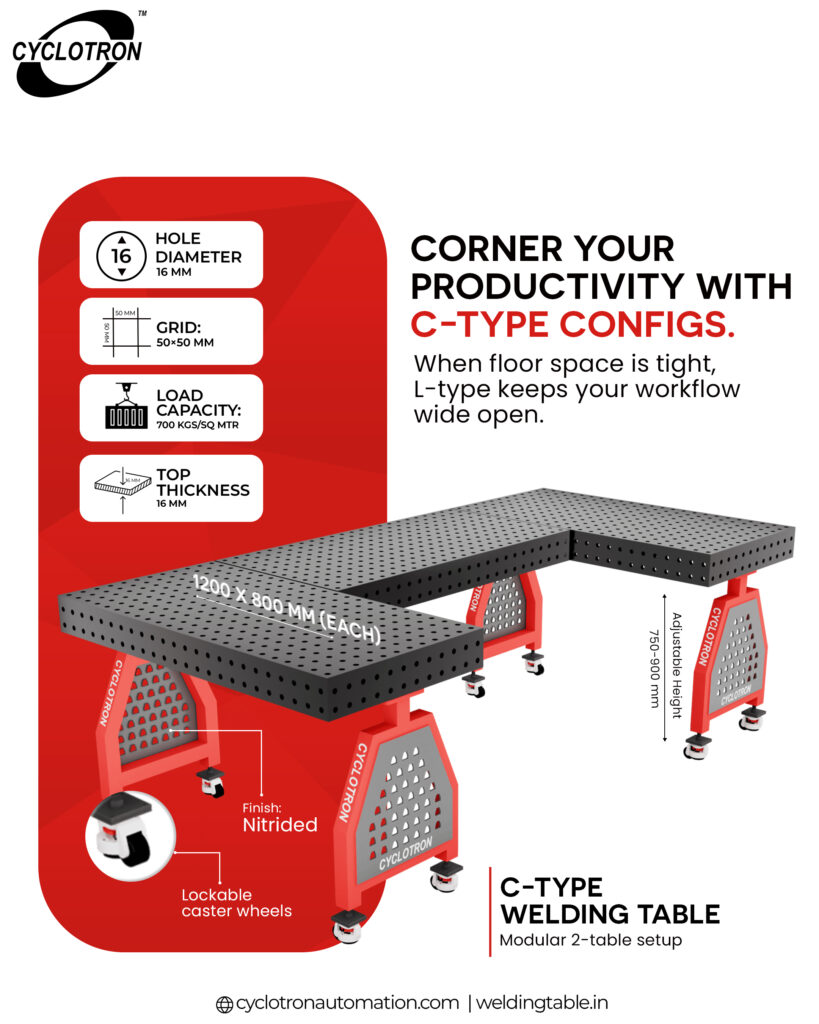

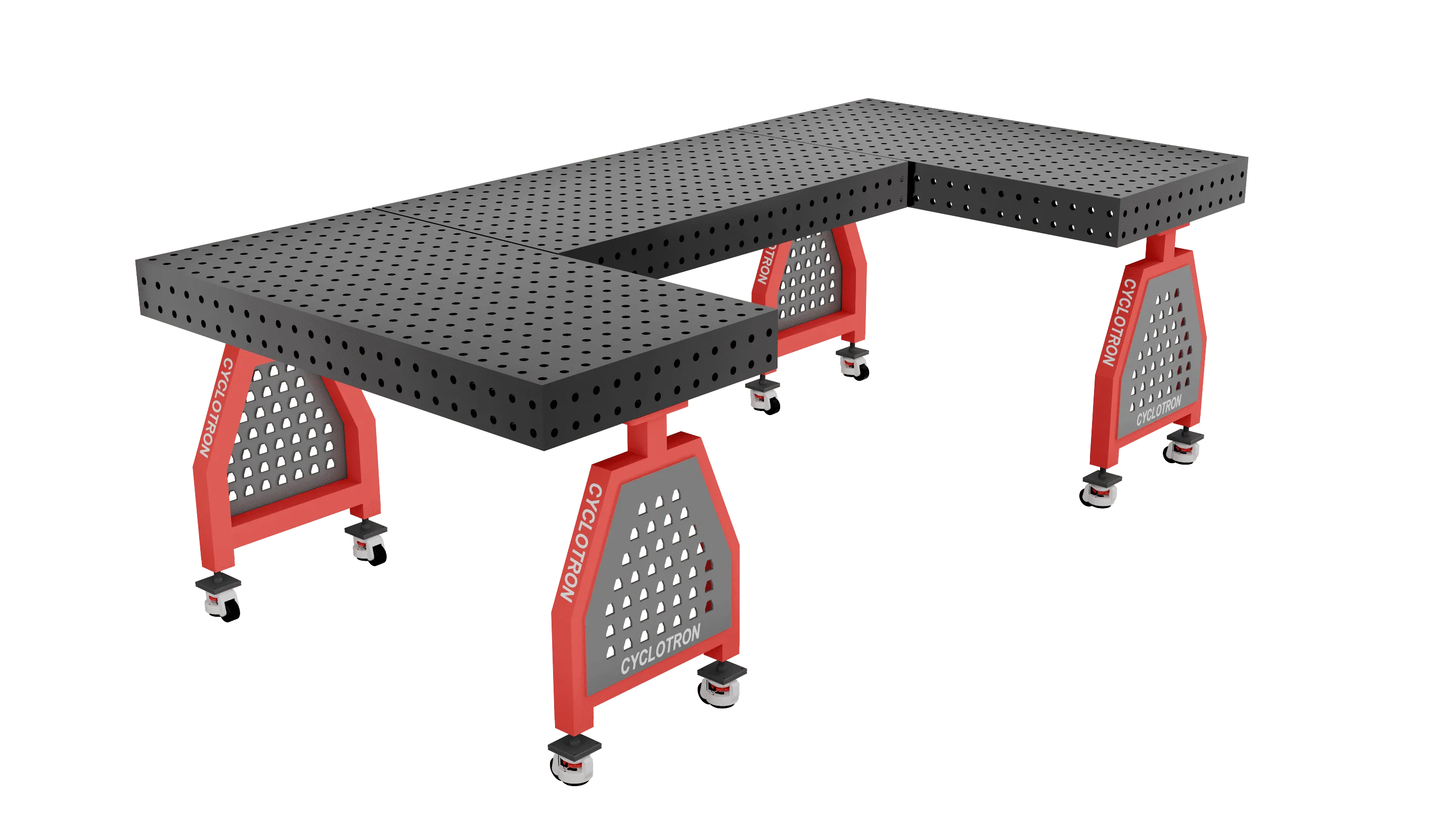

C-Type Combination

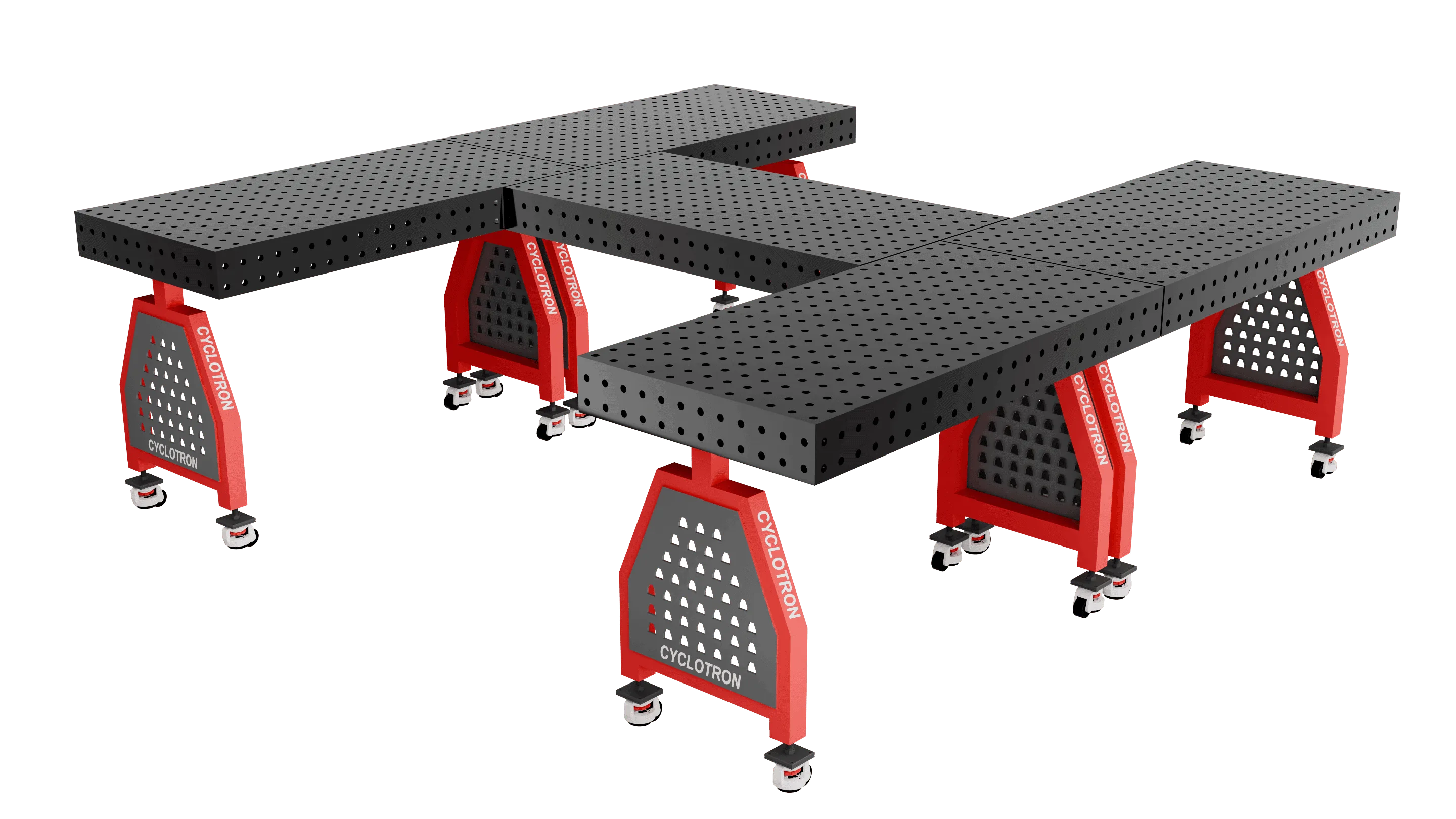

H-Type Combination

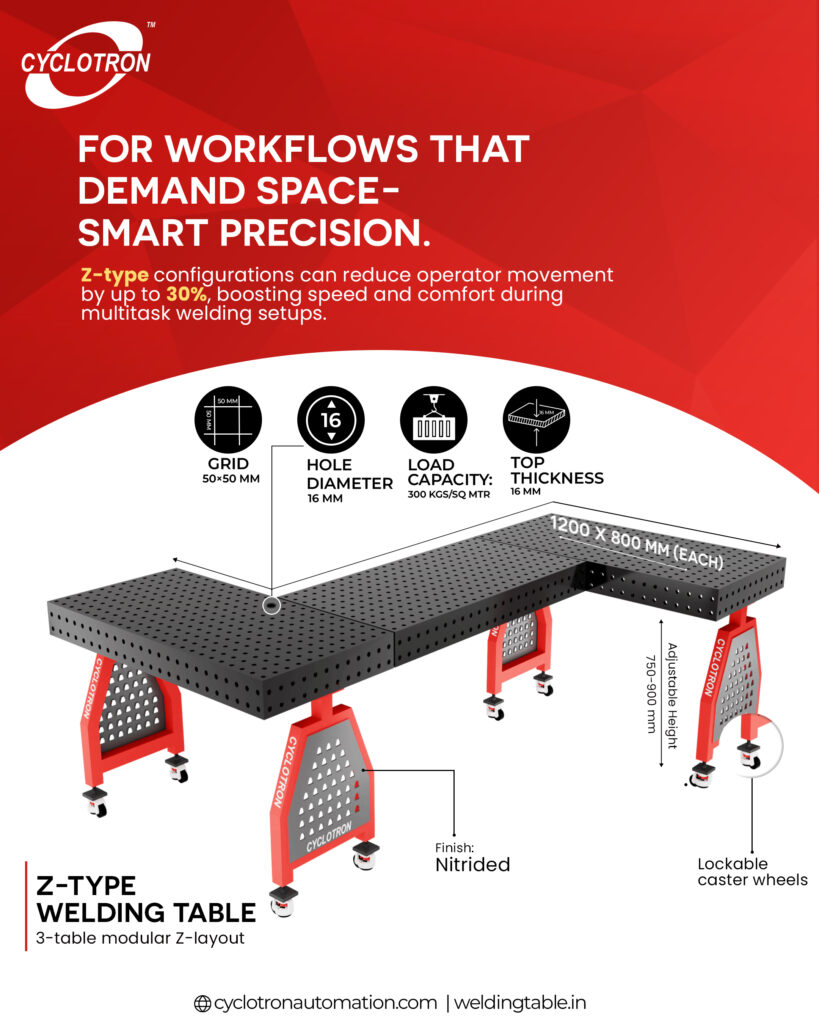

Z-Type Combination
