CYCLOTRON Support tables

Support Tables

Modular. Expandable. Precision-Engineered

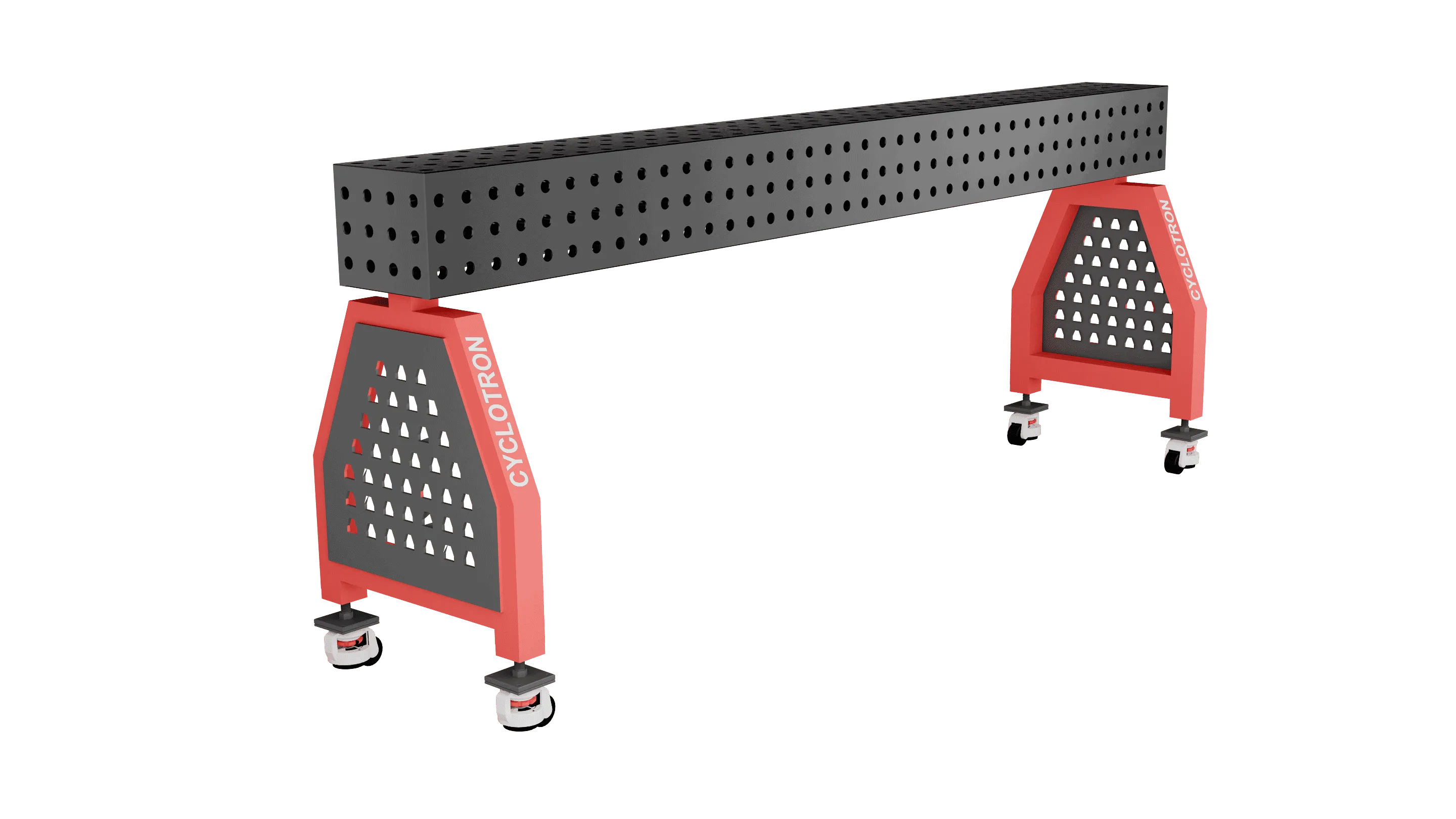

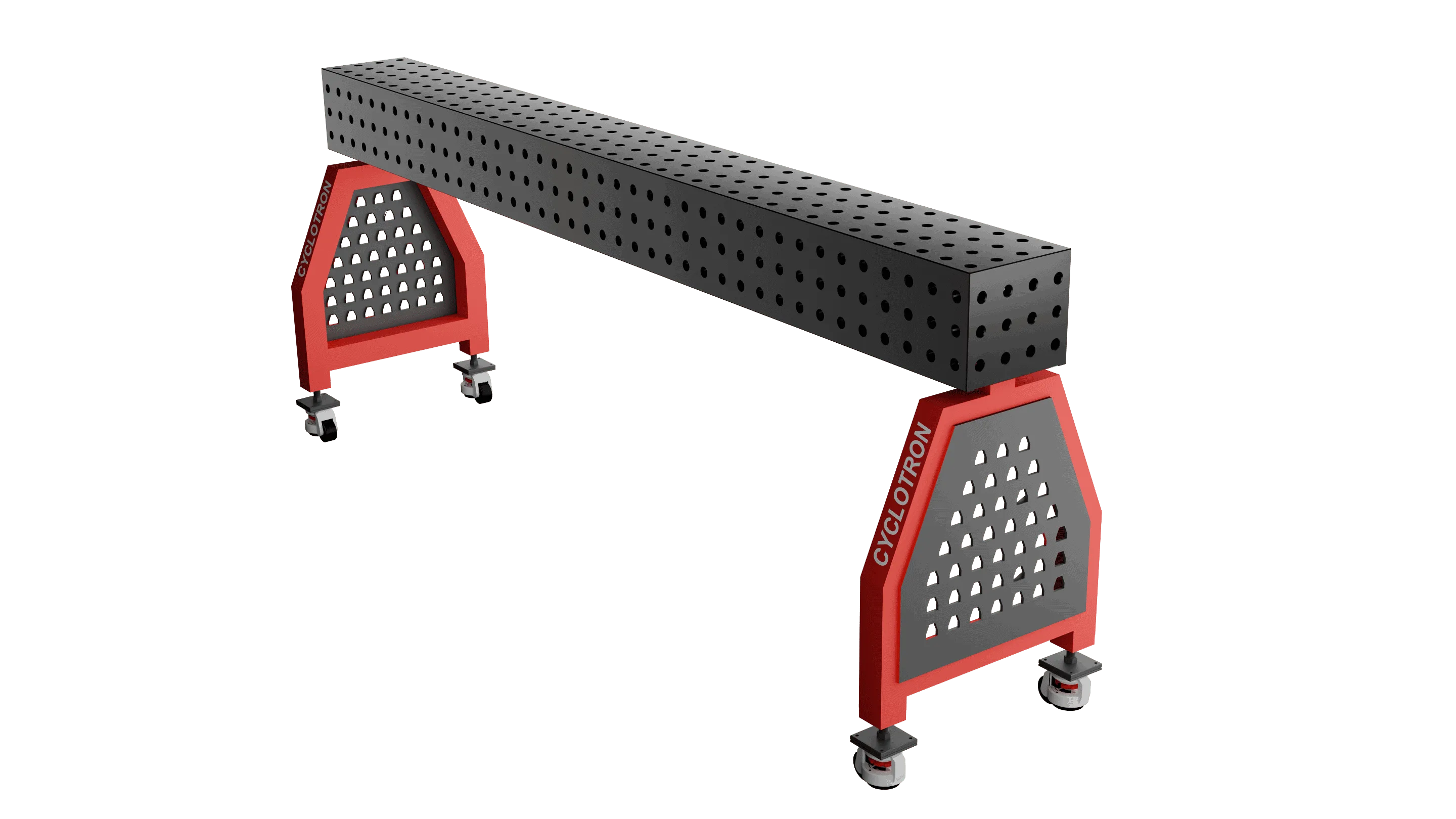

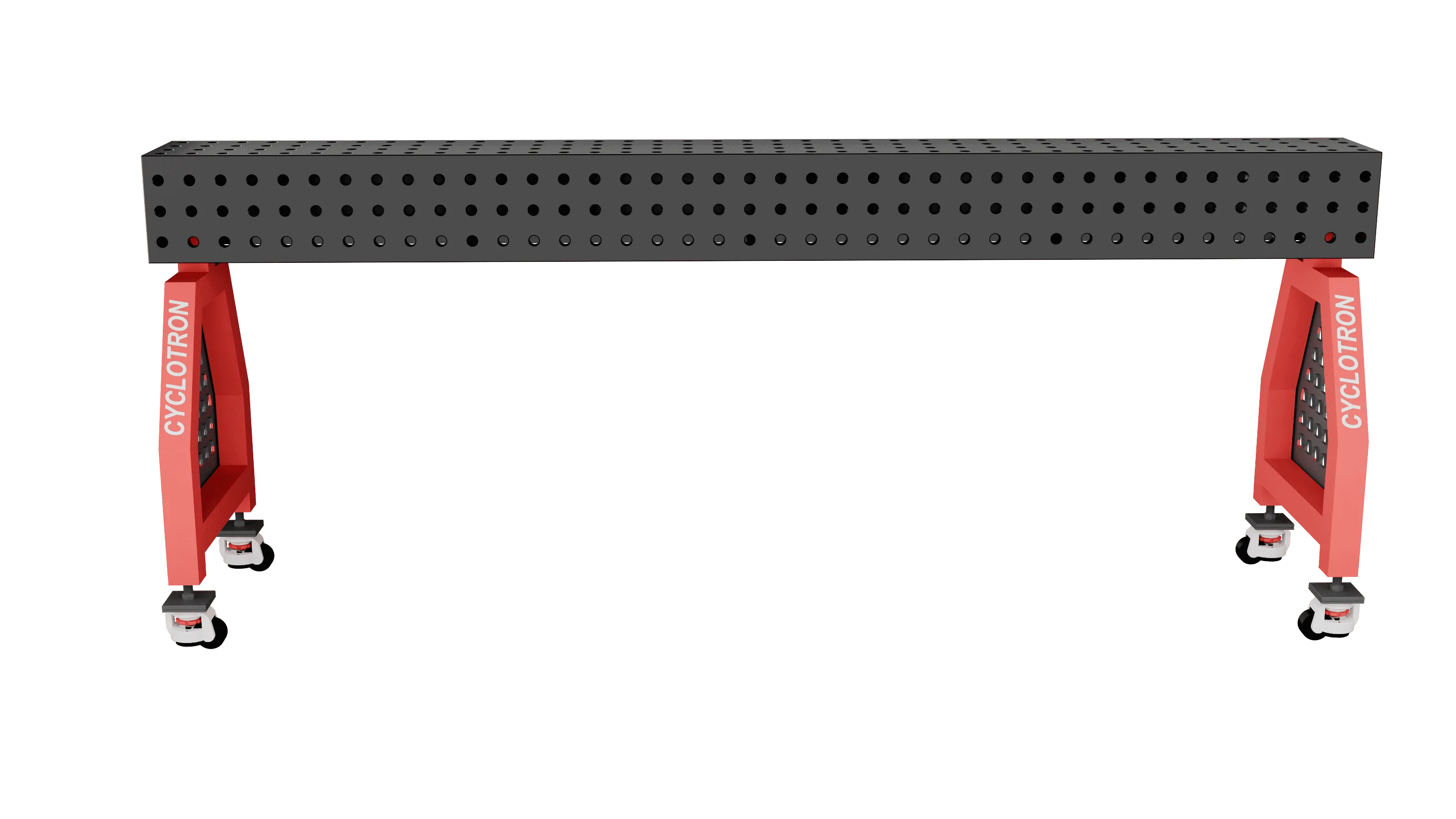

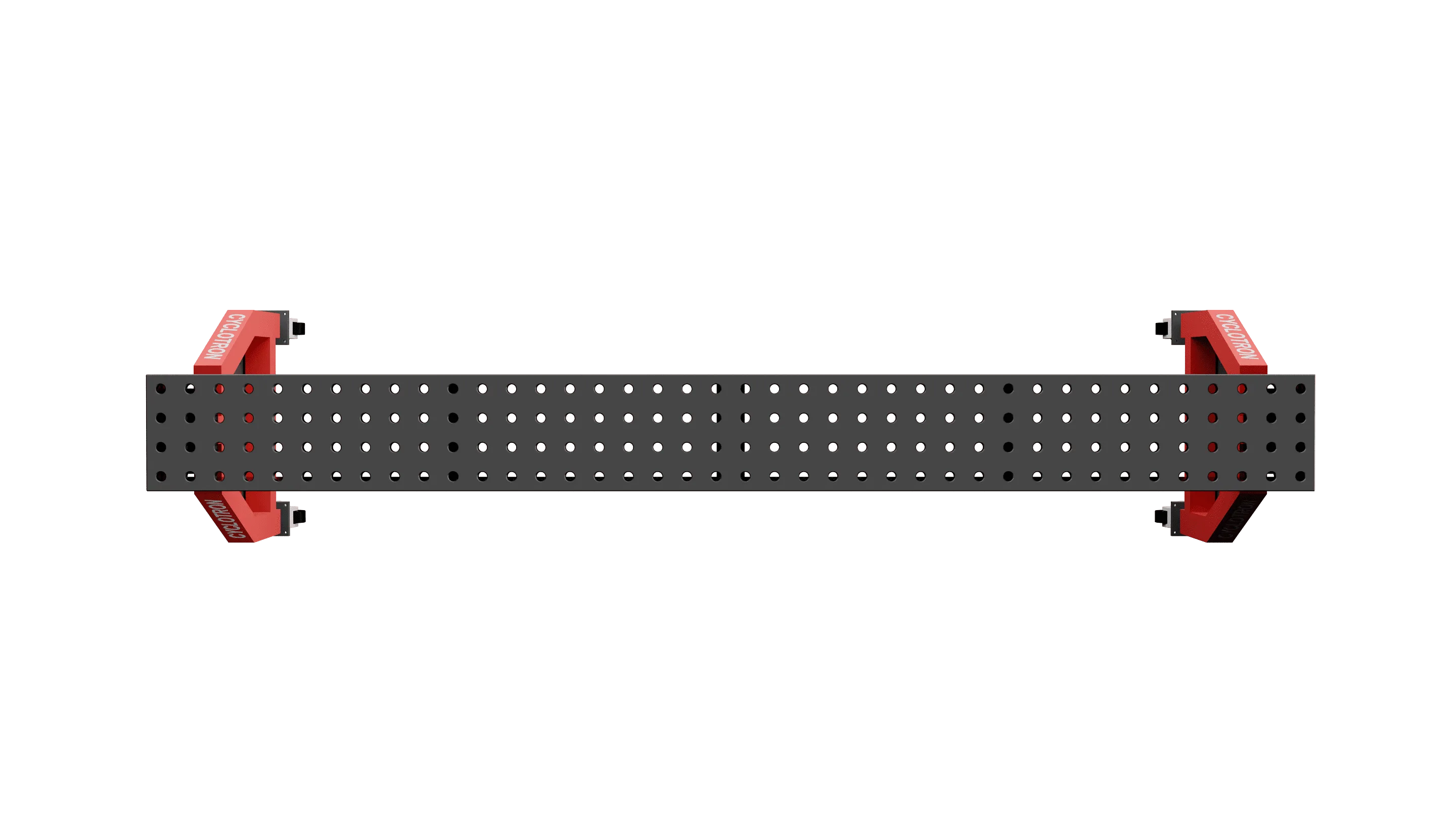

Cyclotron Support Tables are an essential addition to modern welding and fabrication setups, designed to provide stability, modularity, and extended work surface areas. These tables offer high precision and adaptability, making them ideal for professional welding applications. By integrating seamlessly with welding tables, they enhance operational efficiency and improve workflow in industrial and workshop environments.

Why Choose the Support tables?

Standard Dimensions: 200×200 mm cross-section
Multiple Lengths Available: 600 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm, 2000 mm, 2400 mm
Hole System Options: D16 and D28
Modular Design: Easily customizable for various applications

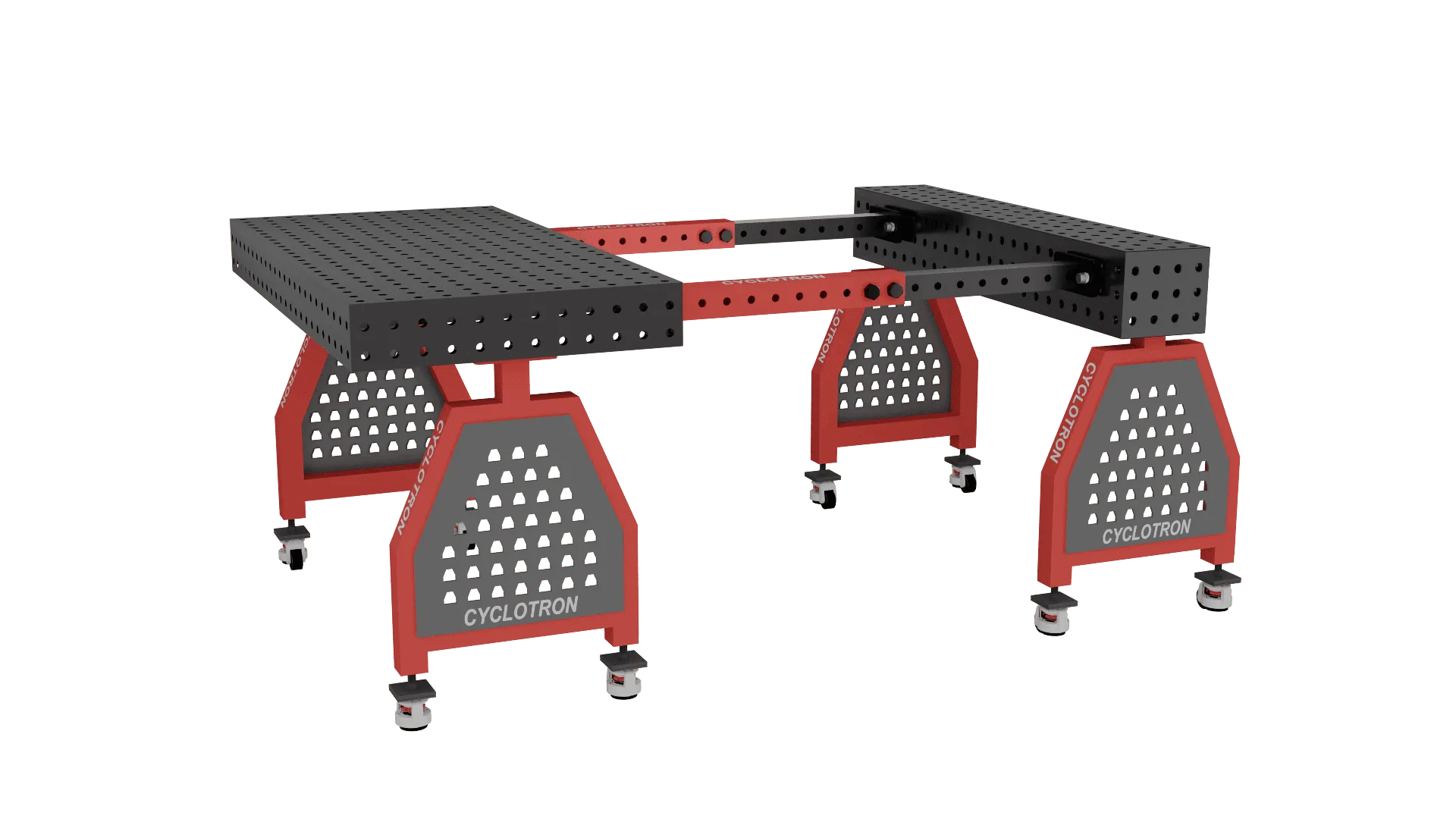

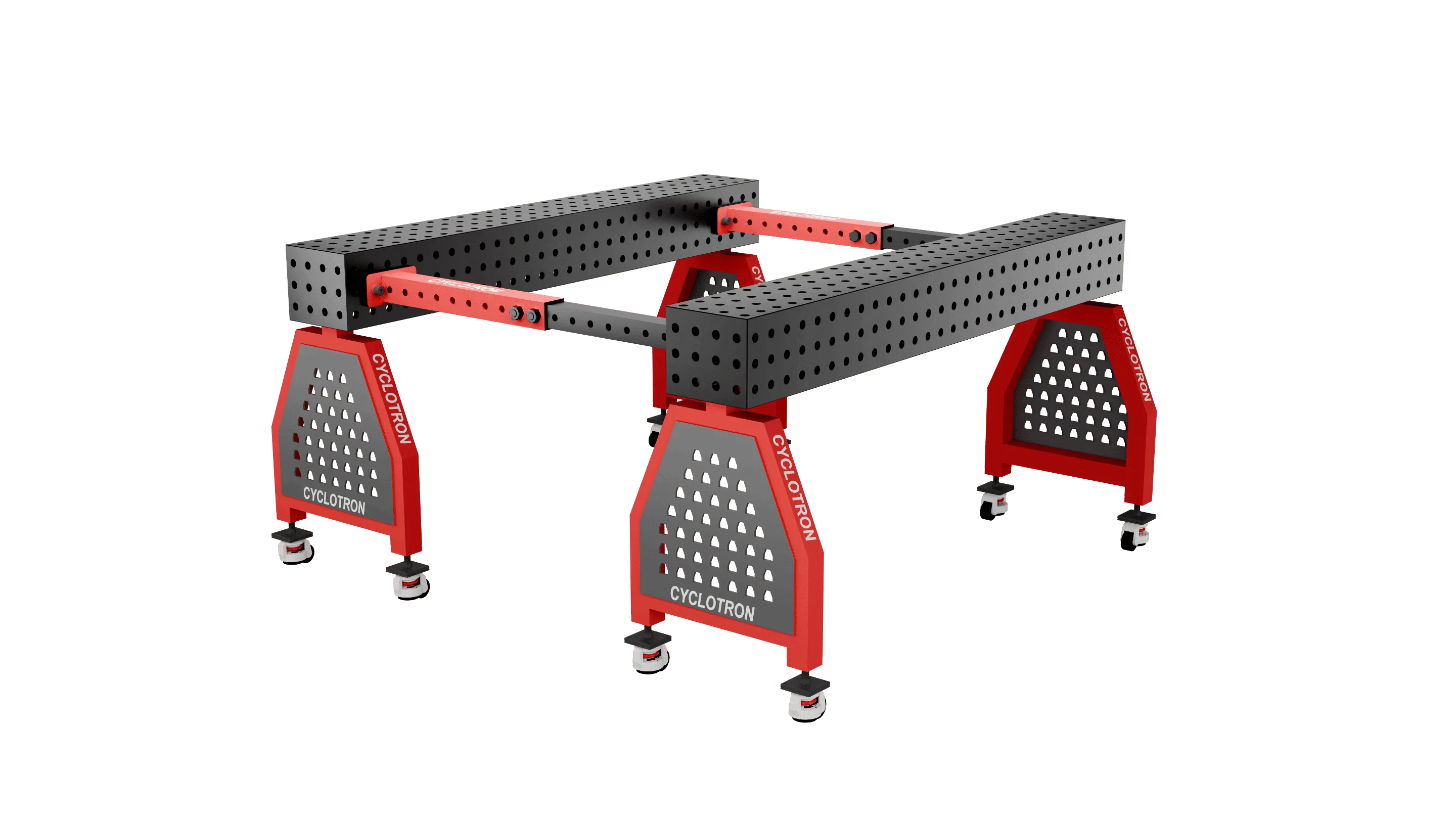

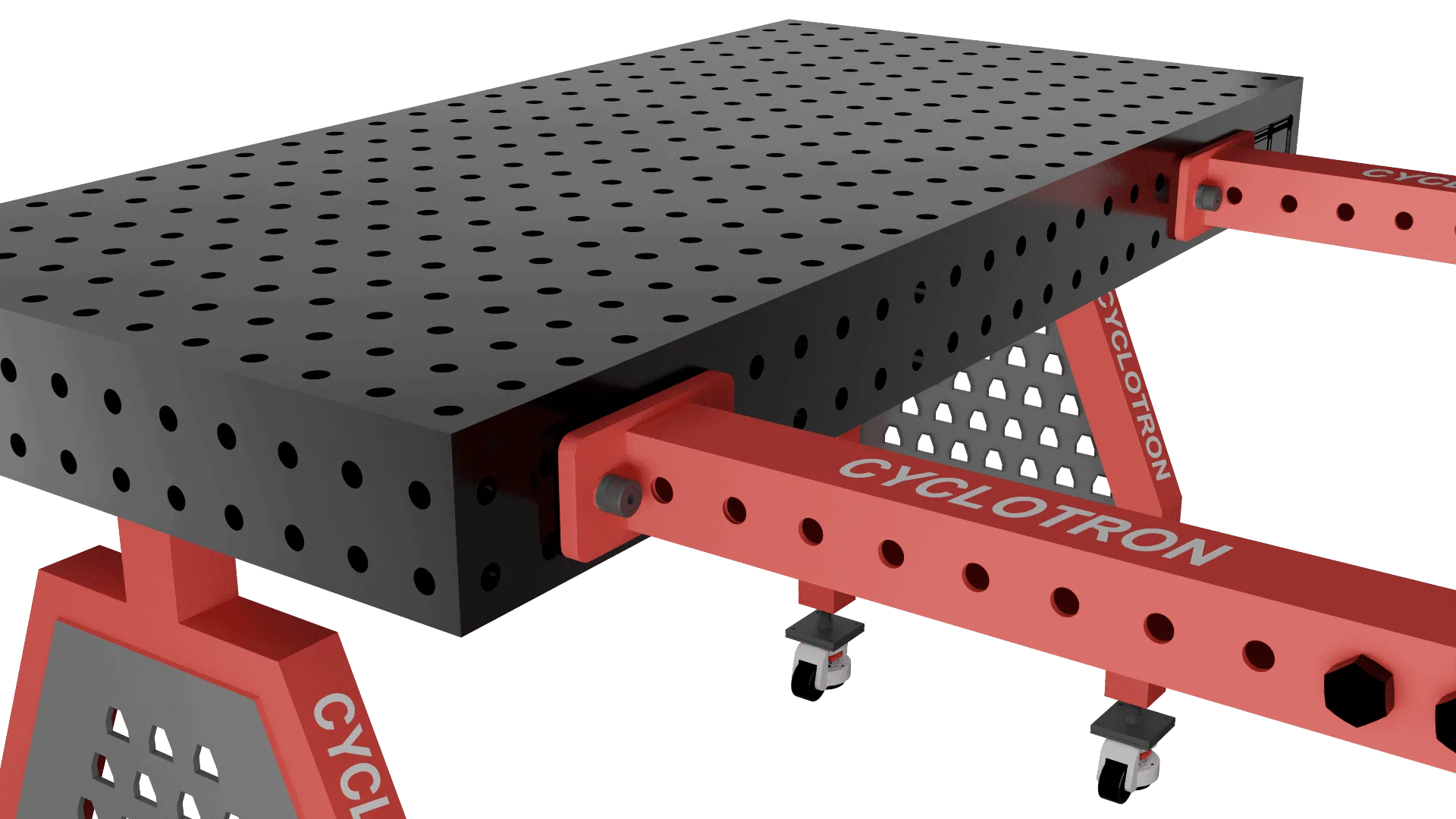

Versatile Applications: Used for risers, extensions, and additional support structures
Durability and Strength: Designed to withstand industrial welding and fabrication needs

D16-Support Welding table Sizes

Part No	Size (mm)	Thickness (mm)	Grid (mm)	Weight (kgs)	Capacity (kgs)
WT-D16-SUPPORT-600-ST	600x200x175	16	50	45	800
WT-D16-SUPPORT-800-ST	800x200x175	16	50	58	800
WT-D16-SUPPORT-1000-ST	1000x200x175	16	50	70	800
WT-D16-SUPPORT-1200-ST	1200x200x175	16	50	82	800
WT-D16-SUPPORT-1500-ST	1500x200x175	16	50	100	800
WT-D16-SUPPORT-2000-ST	2000x200x175	16	50	131	800
WT-D16-SUPPORT-2400-ST	2400x200x175	16	50	156	800

D28-Support Welding table Sizes

Part No	Size (mm)	Thickness (mm)	Grid (mm)	Weight (kgs)	Capacity (kgs)
WT-D28-SUPPORT-600-ST	600x200x200	25	100	71	1000
WT-D28-SUPPORT-800-ST	800x200x200	25	100	90	1000
WT-D28-SUPPORT-1000-ST	1000x200x200	25	100	110	1000
WT-D28-SUPPORT-1200-ST	1200x200x200	25	100	130	1000
WT-D28-SUPPORT-1500-ST	1500x200x200	25	100	160	1000
WT-D28-SUPPORT-2000-ST	2000x200x200	25	100	209	1000
WT-D28-SUPPORT-2400-ST	2400x200x200	25	100	249	1000
