CYCLOTRON WELDING TABLE

Heavy Duty 3D welding table

Heavy duty 3d welding table

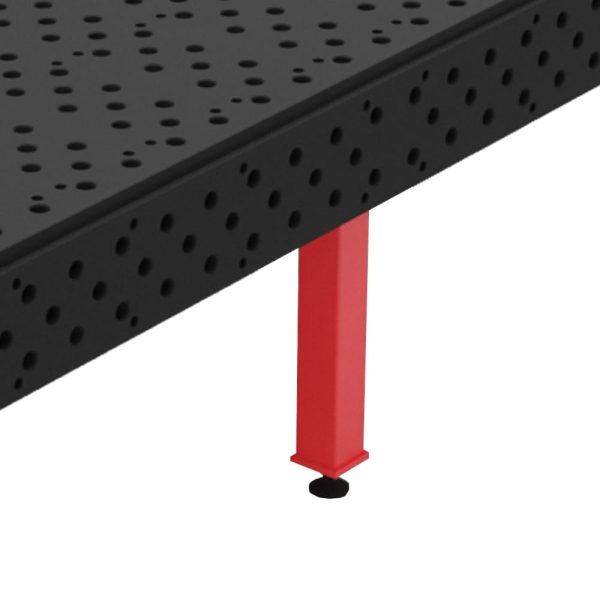

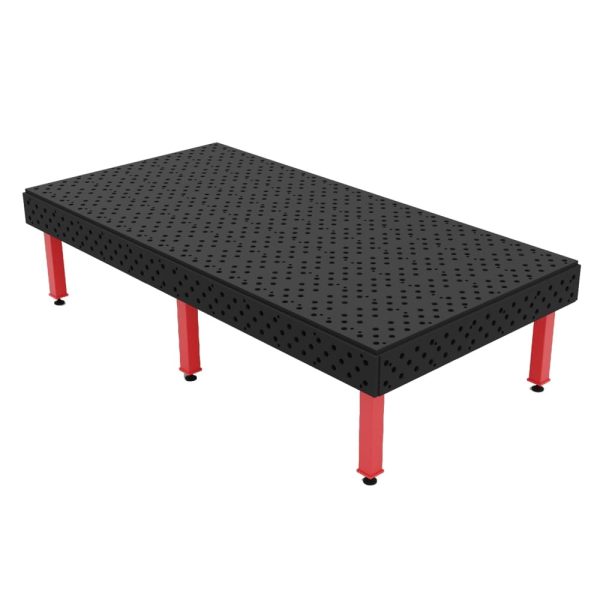

  • Heavy duty 3d welding table has 5 precision machined working surfaces (1 top + 4 side surfaces).
  • The table is connected and changed arbitrarily according to the shape of the workpiece.

Hole diameter– 28mm

Hole center distance– 50mm

Top Plate thickness– 25 mm

Flatness-0.4/1000 mm

Loading Capacity– 1 to 7 ton

Top Plate Material– Steel IS 2062

Frame Material– Steel IS 2062

Surface coating– Powder coated

Top Plate– Standard/ Nitrided

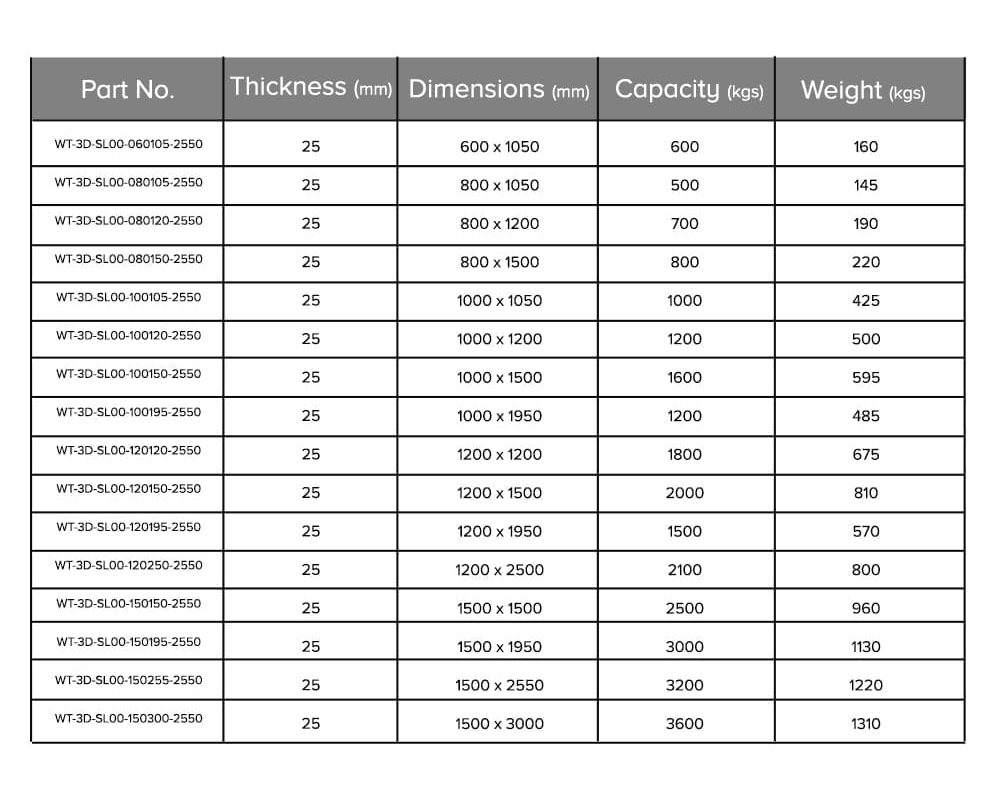

Heavy duty 3d welding table-2
D28-3D Welding table (3)-min
3d welding table
3D Welding table
3D Welding table
3D welding table 1
3D welding table 2
3D welding table 3
  • Worktop with D28 system bores in a 50 mm x 50 mm grid resulting in greater clamping options as compared to 100mm x 100mm grid.
  • The precision can reach microns for fixing and clamping.
  • Cyclotron gives nitrided surface improving surface properties of metal and corrosion resistance, and increase the fatigue strength.
  • Nitriding is a heat-treating process that diffuses nitrogen into the surface of a metal to create a case-hardened surface.
  • It is mainly used for clamping & locating steel structures and other assembling & fabrications according to our needs.
  • It is a widely used welding tool, which helps in modularity, standardization & reusability.
  • It replaced traditional dedicated fixtures with its high efficiency /affordability/precision/convenience
