Welding table- Ludhiana, Punjab

Cyclotron welding table

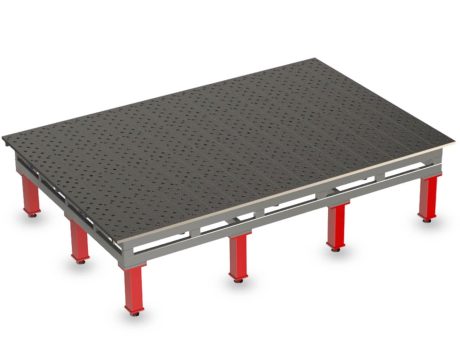

Giant welding table

giant welding table
  • Giant welding table has  top surface to be precision machined
  • The table is connected and changed arbitrarily according to the shape of the workpiece.

Hole diameter– 25mm

Hole center distance– 50/100mm

Top Plate thickness– 25 mm

Flatness-0.4/1000 mm

Loading Capacity– 1 to 7 ton

Top Plate Material– Steel IS 2062

Frame Material– Steel IS 2062

Surface coating– Powder coated

Top Plate– Standard/ Nitrided

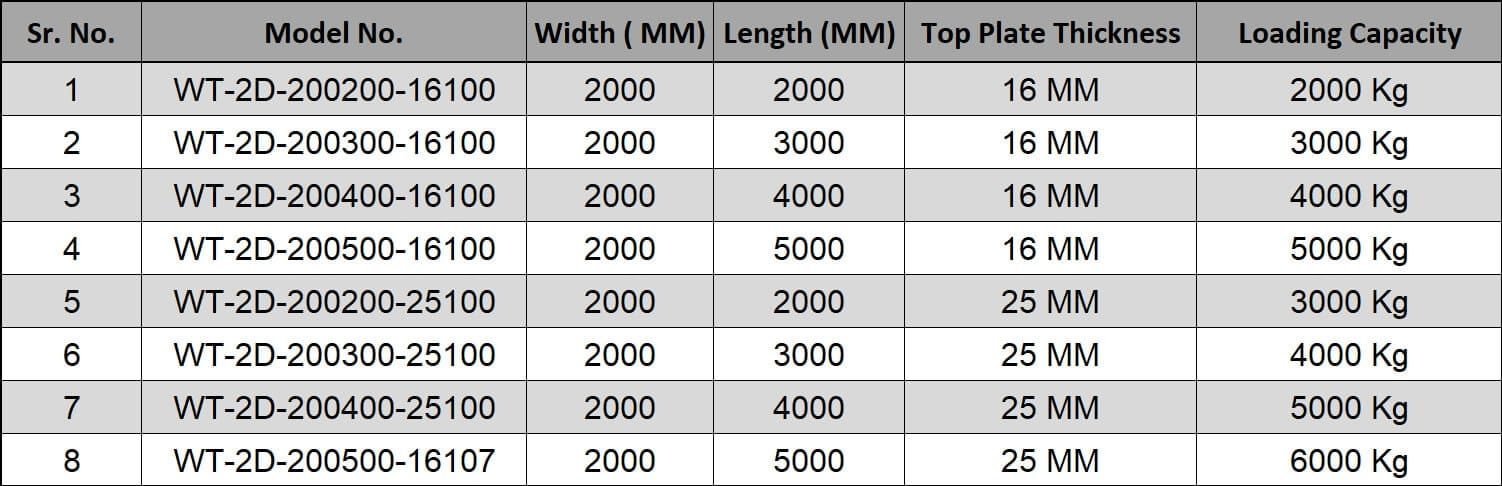

Giant welding table chart

Looking for a Giant welding table? Do contact us

  • Giant welding table has a worktop with D25 system bores in a 100 mm x 100 mm grid.
  • Further improving the expansion and clamping options by 3 hole drilling pattern on the side plates with D25 system bores in 50 x 50mm.
  • The precision can reach microns for fixing and clamping.
  • Cyclotron gives a nitrided surface improving surface properties of metal and corrosion resistance, and increase the fatigue strength.
  • Nitriding is a heat-treating process that diffuses nitrogen into the surface of a metal to create a case-hardened surface.
  • It is mainly used for clamping & locating steel structures and other assembling & fabrications according to our needs.
  • It is a widely used welding tool, which helps in modularity, standardization & reusability.
  • It replaced traditional dedicated fixtures with its high efficiency /affordability/precision/convenience.
